Asus ROG-STRIX-750G-AURA GAMING 750W 90YE00P3-B0NA00

ROG STRIX 750W Gold Aura Edition

Intel Form Factor

ATX12V

ATX 3.0

Yes

Dimensions

180 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

22A 22A 62.5A 0.3A 3A

Combined Load

120W 120W 750W 3.6W 15W

Total Output

750W

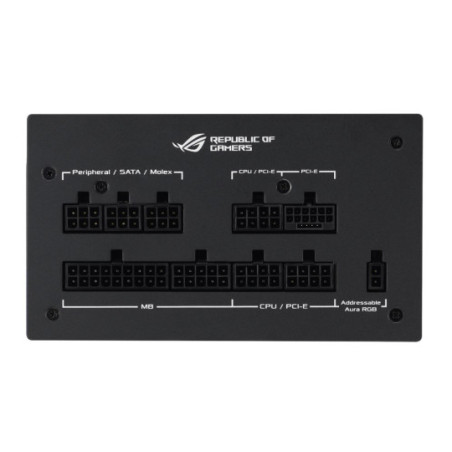

Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (700mm)
PCI-E 1-to-1 Cable x 1 (700mm)
PCI-E 1-to-2 Cable x 1 (700mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1

Weight

2.689 kg (single PSU)

AURA SYNC

ARGB

0dB Fan Button

Yes

Cybenetics Noise Level Certification

A++
