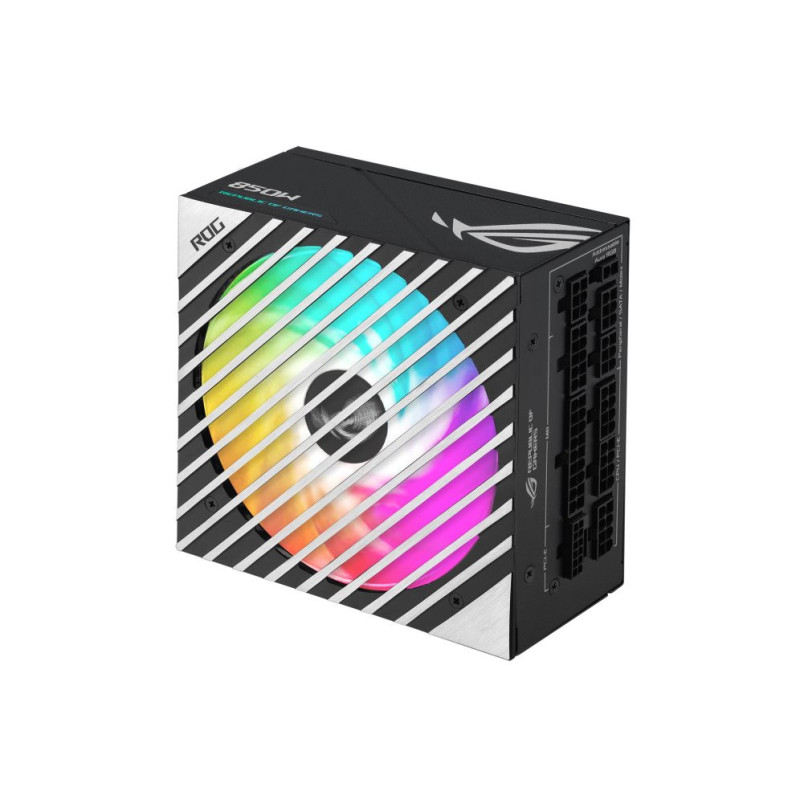

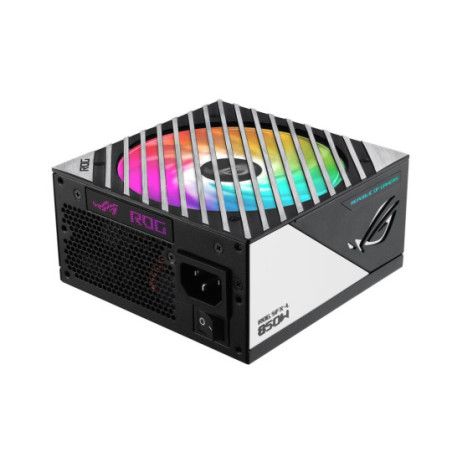

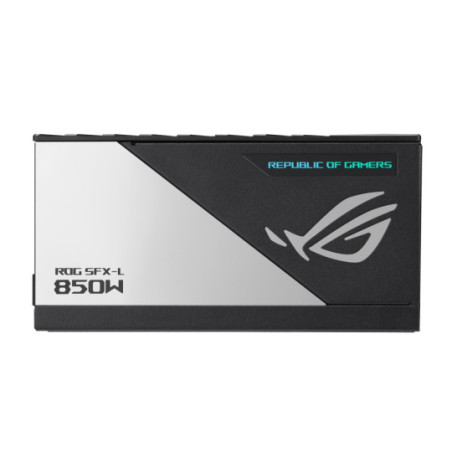

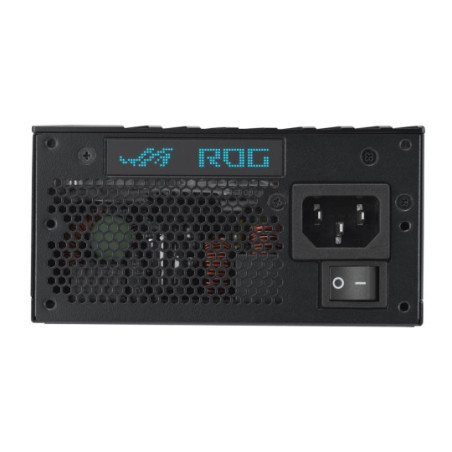

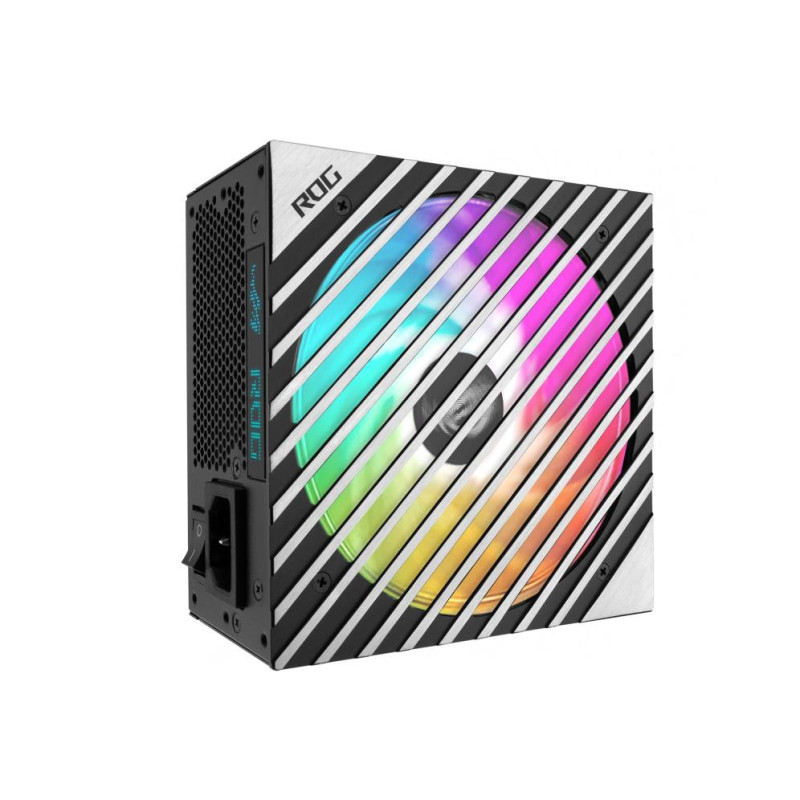

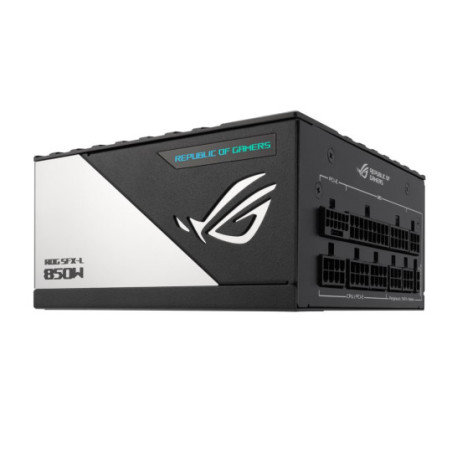

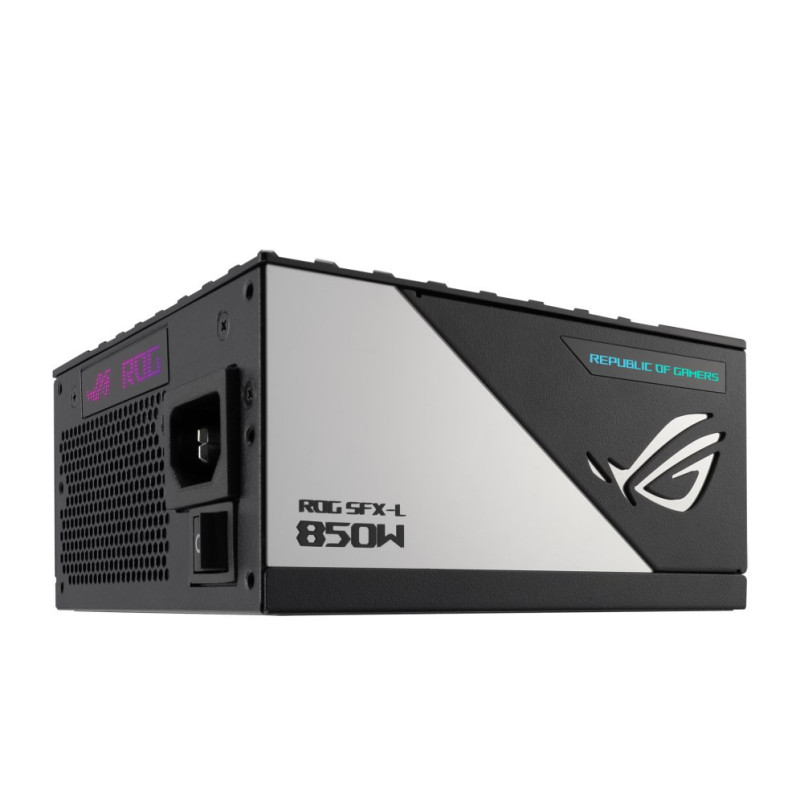

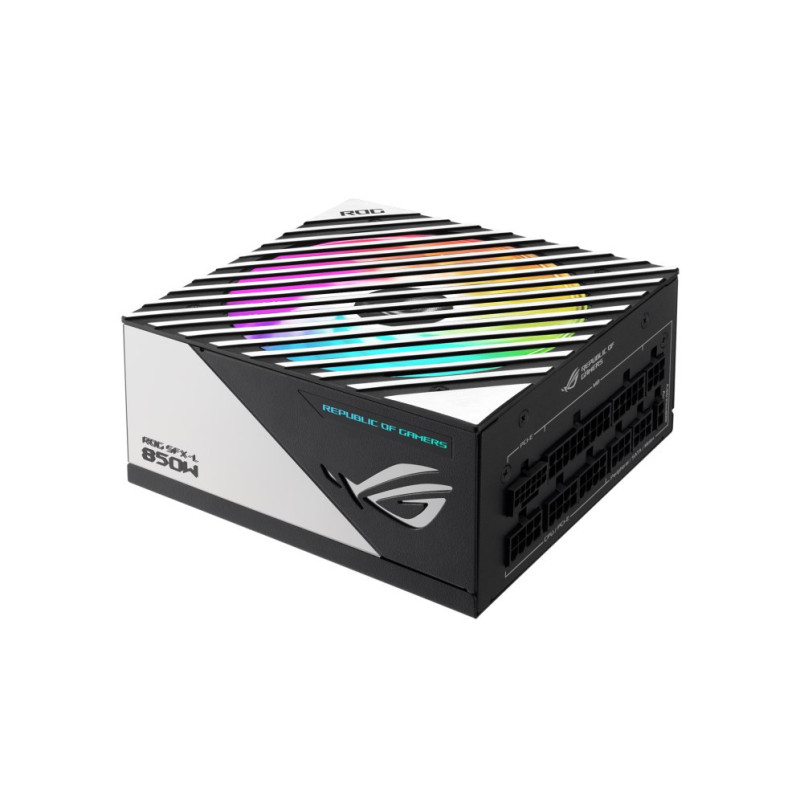

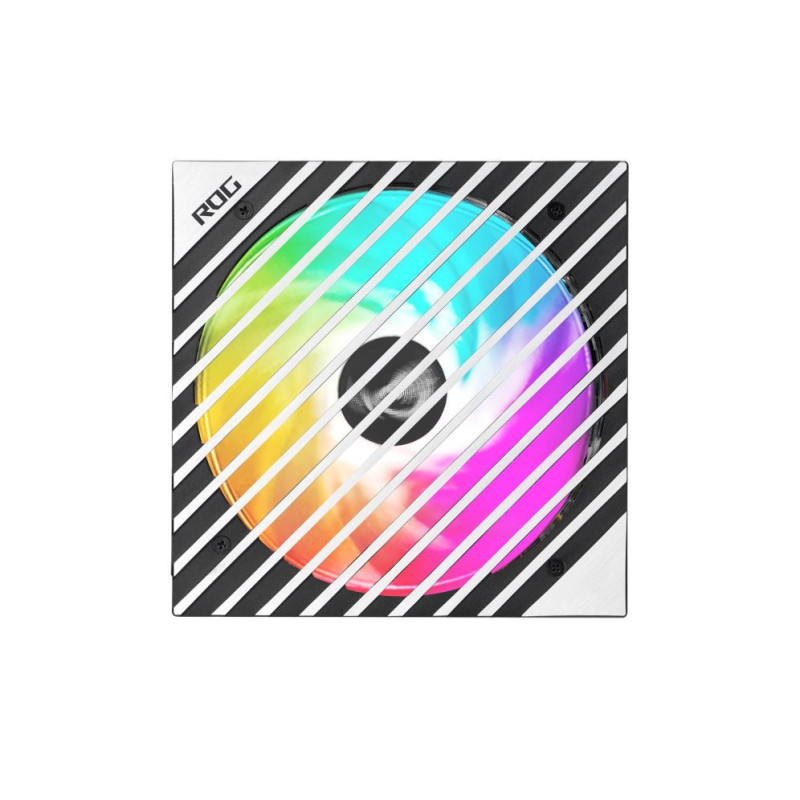

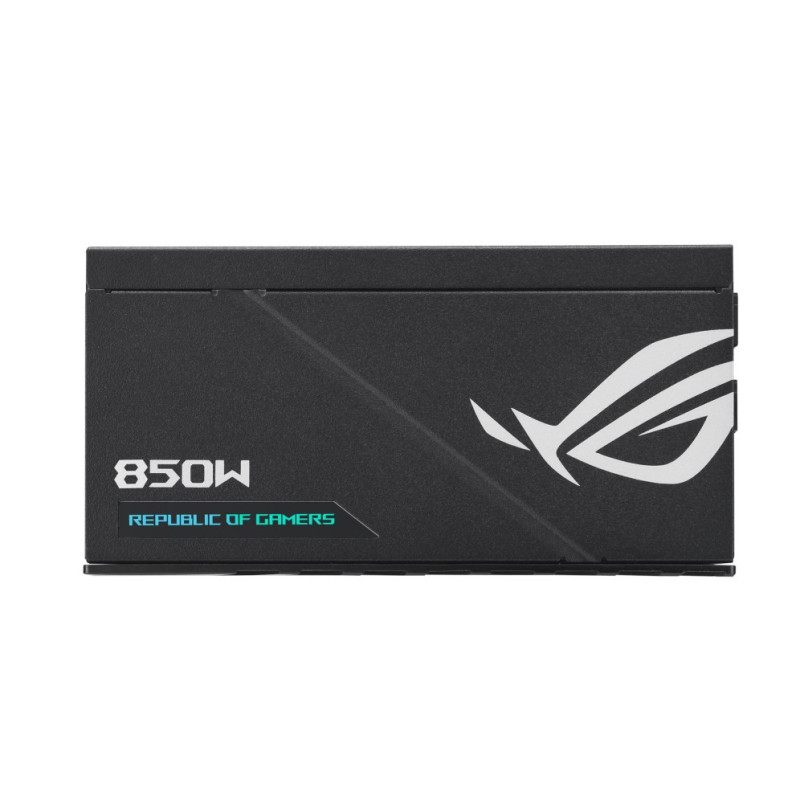

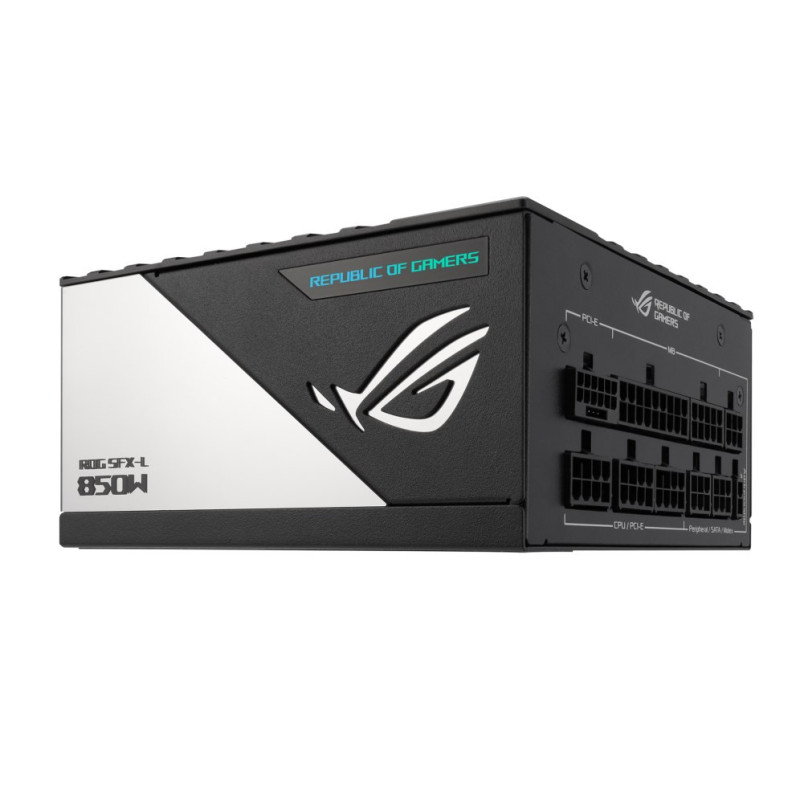

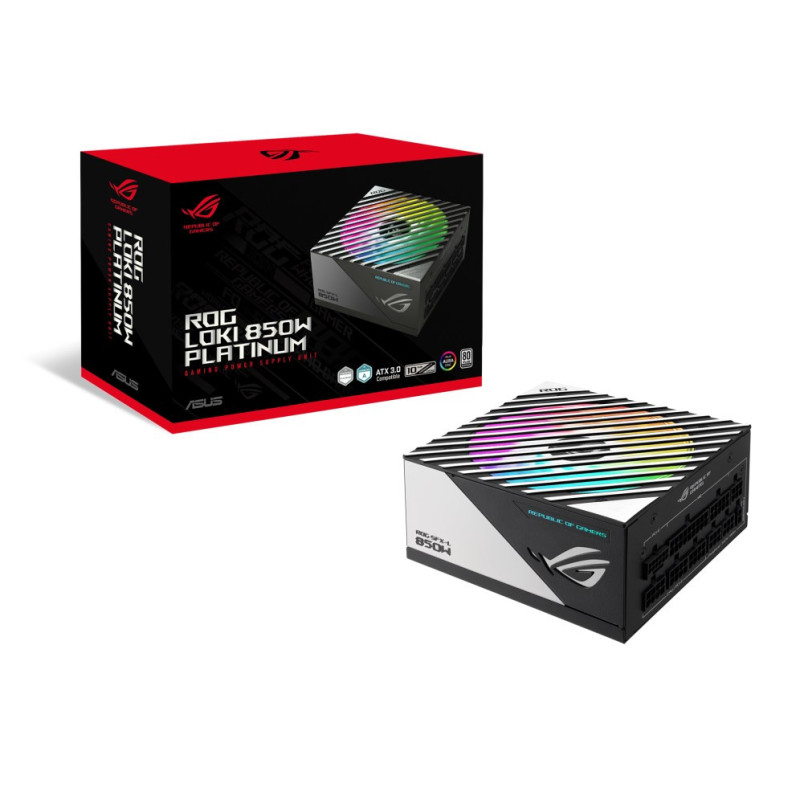

Asus ROG Loki SFX-L 850W Platinum 90YE00N3-B0NA00

ROG LOKI SFX-L 850W Platinum

Intel Form Factor

SFX-L

ATX 3.0

Yes

Dimensions

125 x 125 x 63.5 mm

Efficiency

80Plus Platinum

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 70.8A 0.8A 2.5A

Combined Load

110W 110W 850W 9.6W 12.5W

Total Output

850W

Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5 16-pin Cable x 1 (450mm)
PCI-E 1-to-1 Cable x 1 (450mm)
PCI-E 1-to-2 Cable x 1 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1

Weight

1.815kg (single PSU)

AURA SYNC

ARGB

0dB Fan Button

Yes
