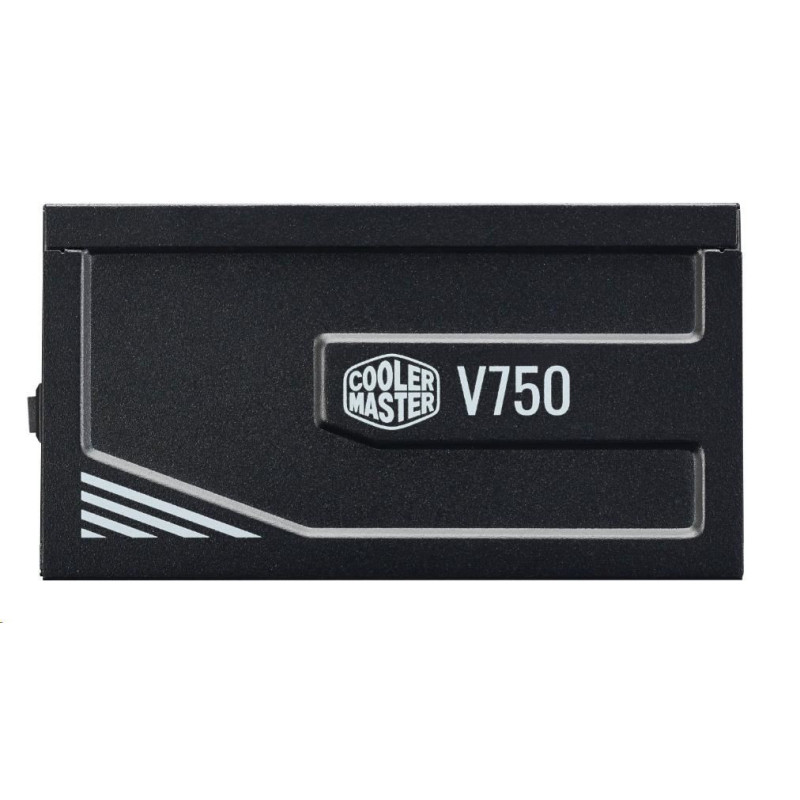

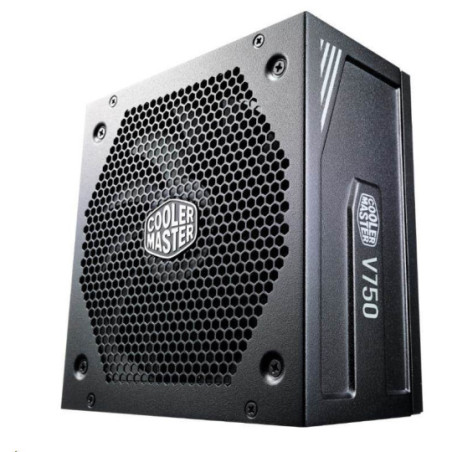

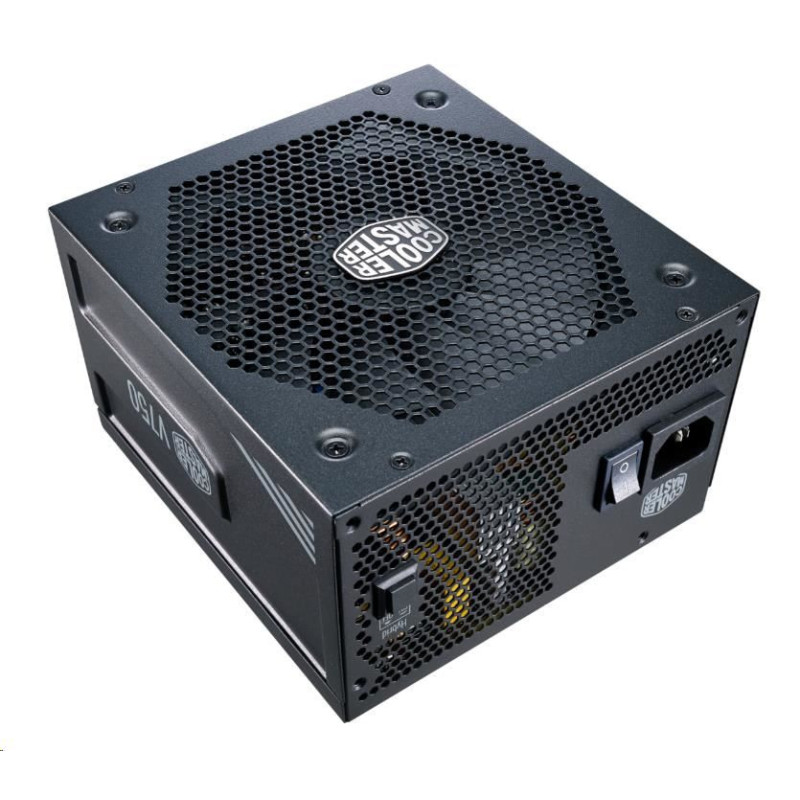

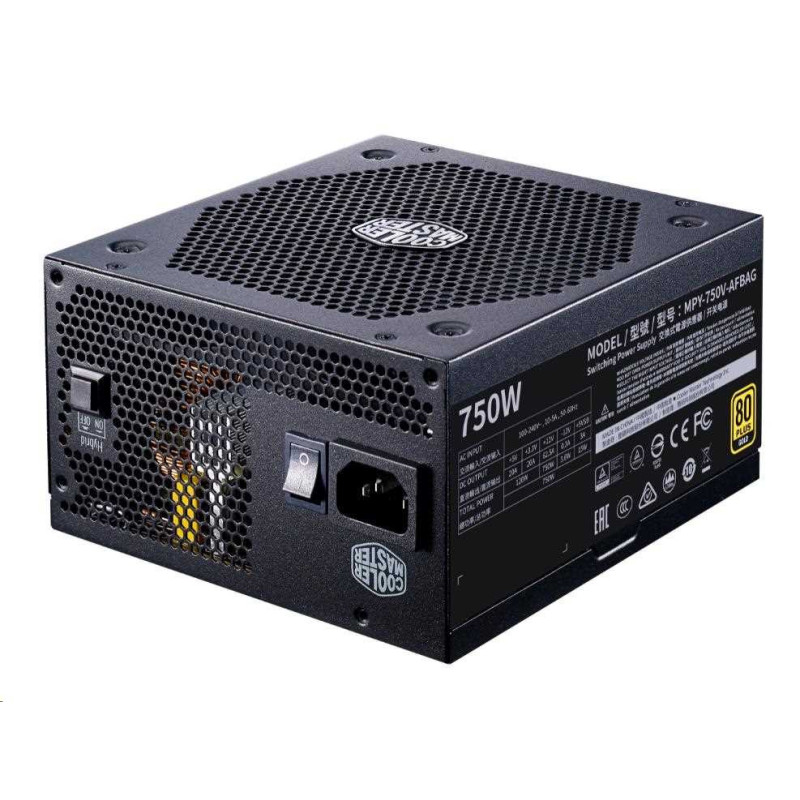

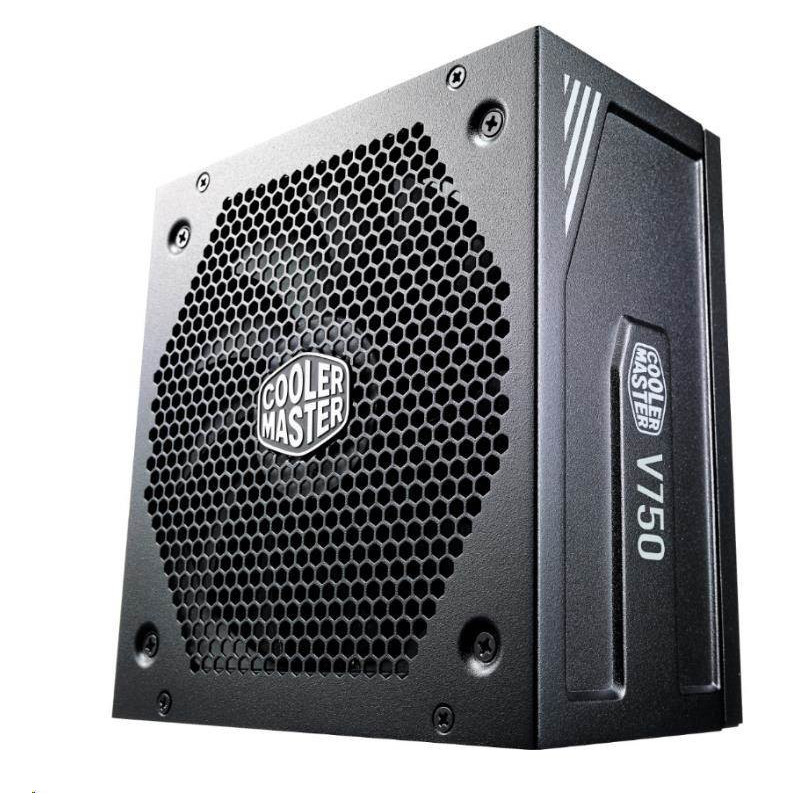

Cooler Master zdroj V750 Gold-v2, 750W, 80+ Gold
- Sdílet na facebook
- Dotaz na produkt
- favorite_border Přidat do oblíbených favorite Odebrat z oblíbených
Podrobnosti
The V Gold - v2 offers the high quality user experience you’ve always wanted. Enjoy an 80 Plus Gold efficiency rating, full-modular cabling, semi-fanless operation, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. Improvements and innovations from the components to the cables deliver a power supply unit fit for any and every type of PC. The 100% Japanese capacitors, half-bridge LLC resonant convertor, and DC-DC circuitry deliver a product that even the pros can respect, at 550, 650, 750, and 850 watt levels. Now available with white casing and cables.
80 PLUS Gold Certified : This certification guarantees a typical efficiency of 90% under normal operating conditions.

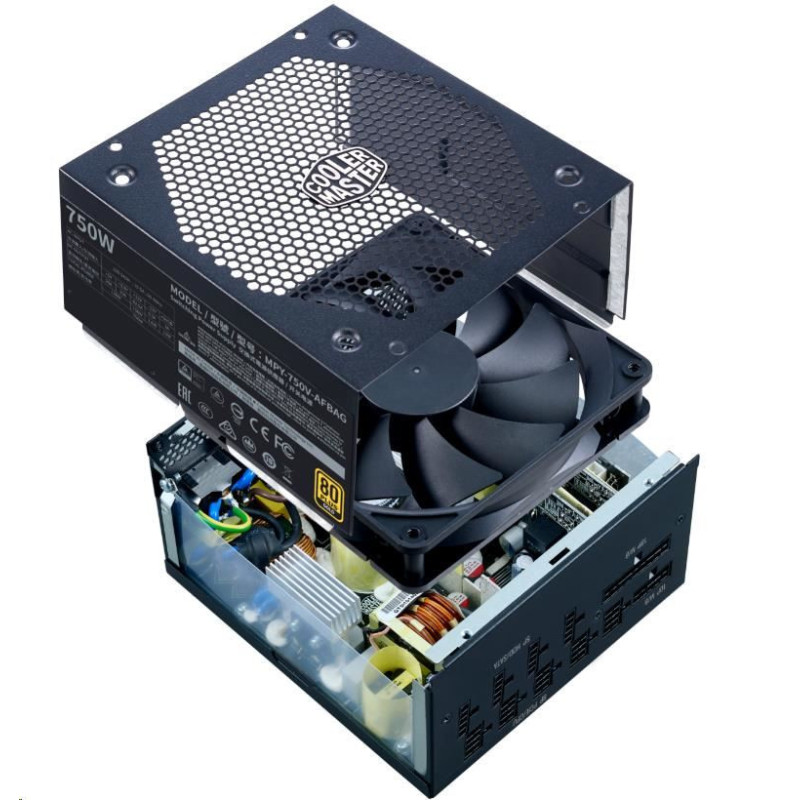

Performance Driven Topology : The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

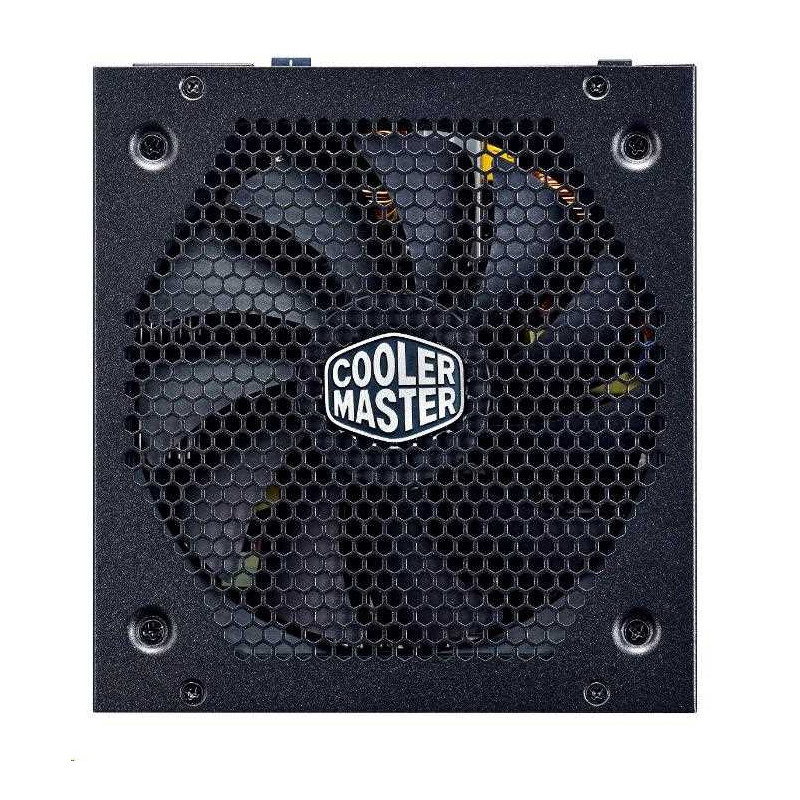

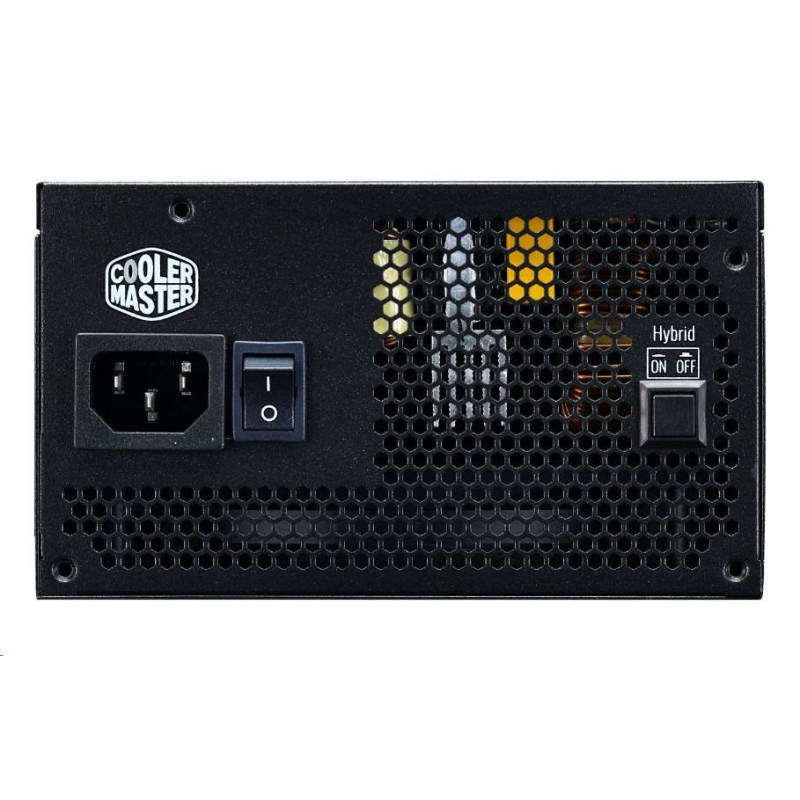

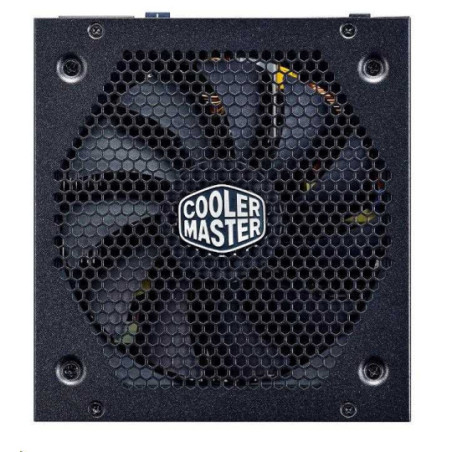

Semi-Fanless Mode with Hybrid Switch : The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware based hybrid switch.

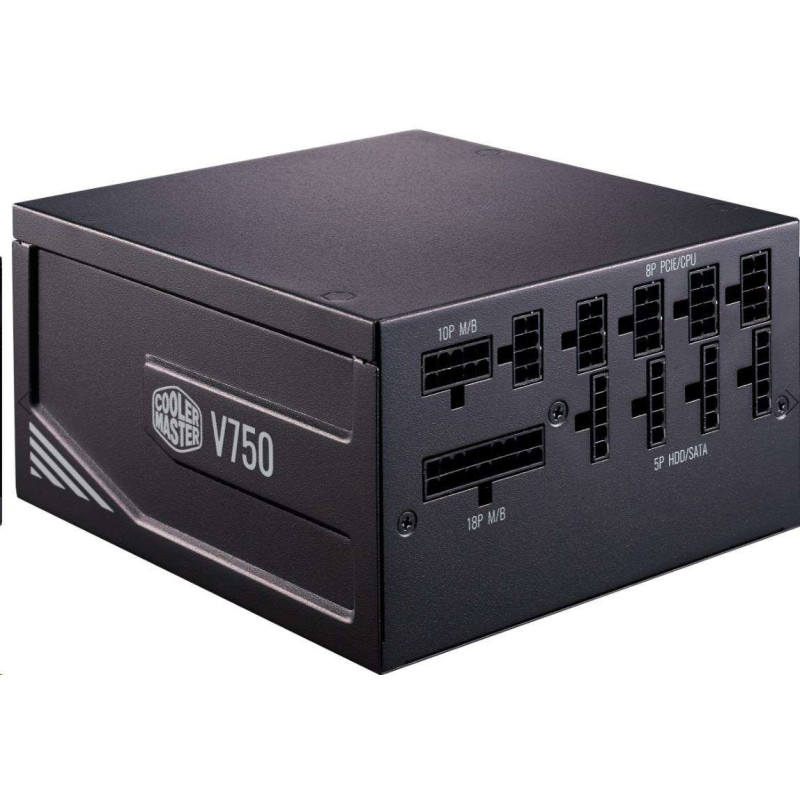

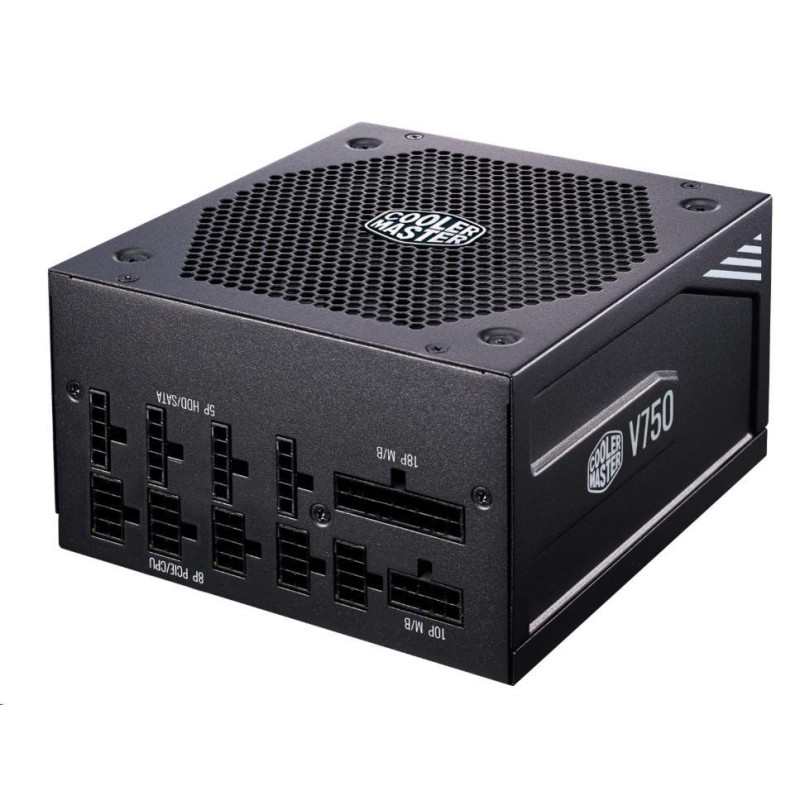

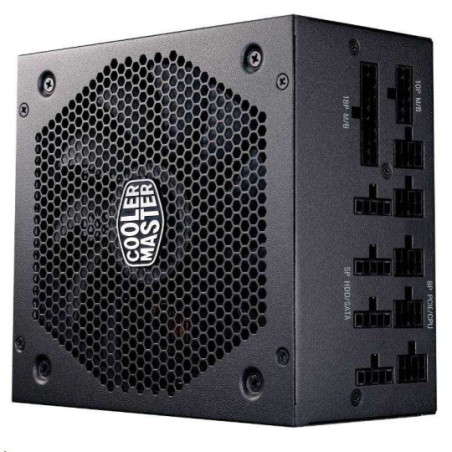

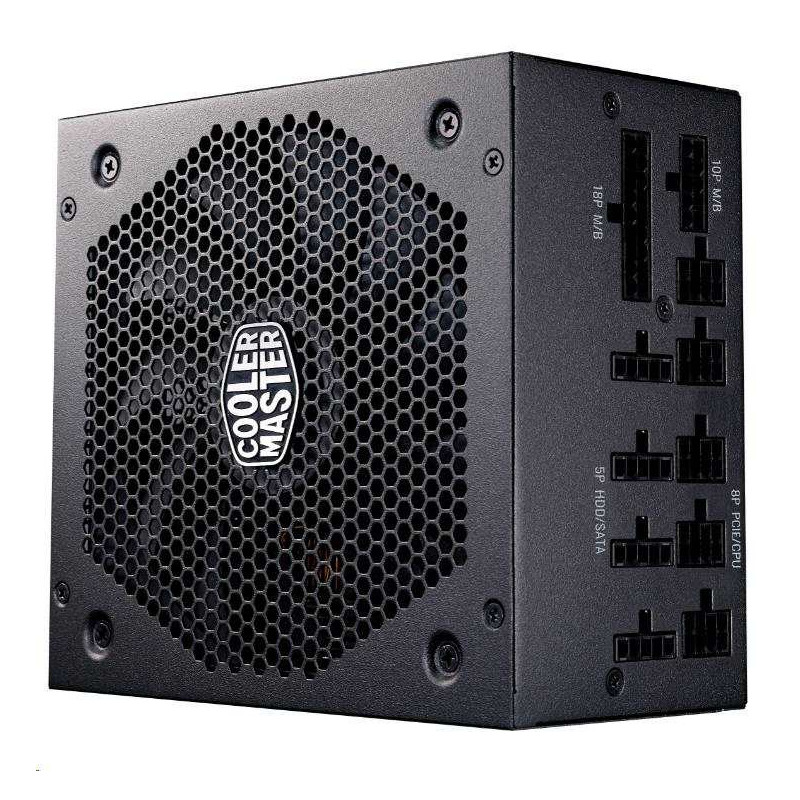

Full-Modular Cabling : Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
16 AWG PCI-e Cables : The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
10 Year Warranty : This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.
Product Name |
V750 Gold - v2 |
|
Item Code |
MPY-750V-AFBAG |
|
ATX Version |
ATX 12V Ver. 2.52 |
|
PFC |
Active PFC |
|
Input Voltage |
100-240V |
|
Input Current |
10-5A |
|
Input Frequency |
50-60Hz |
|
Dimensions (L x W x H) |
160 x 150 x 86mm |
|
Fan Size |
135mm |
|
Fan Bearing |
FDB |
|
Fan Speed |
1545 RPM |
|
Noise @ 20% |
0 dBA |
|
Noise @ 50% |
23.6 dBA |
|
Noise @ 100% |
32.5 dBA |
|
Efficiency |
90% @ Typical Load |
|
80 PLUS Rating |
80 PLUS Gold |
|
ErP 2014 Lot 3 |
Yes |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
17ms |
|
MTBF |
>100,000 hours |
|
Protections |
OVP / OPP / SCP / OCP / UVP / OTP |
|
Regulatory |
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
|

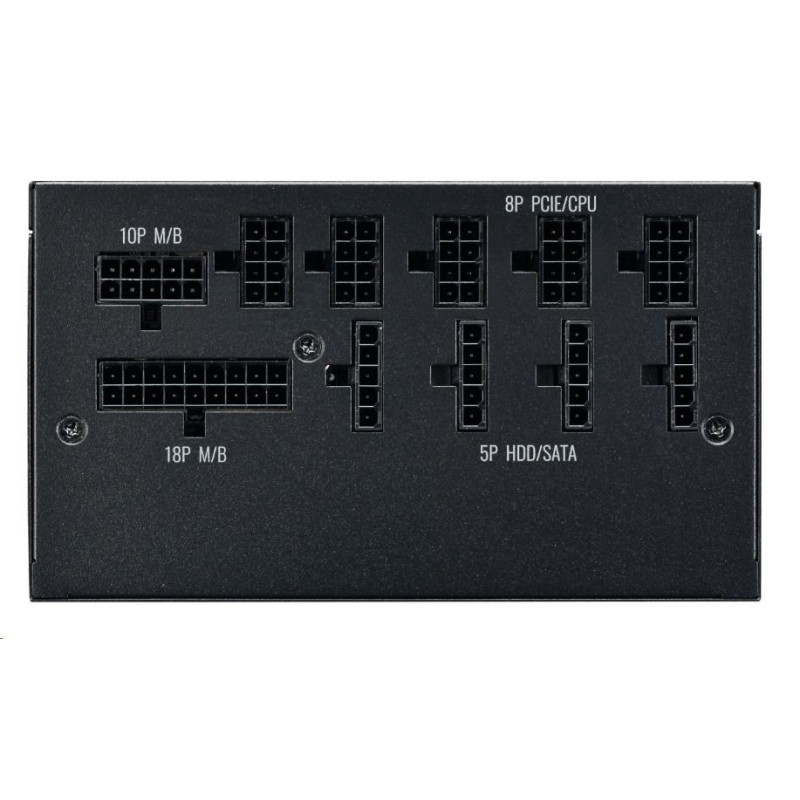

Connectors |
ATX 24 Pin |
x1 |
EPS 4+4 Pin |
x1 |
|
EPS 8 Pin |
x1 |
|
SATA |
x12 |
|
Peripheral 4 Pin |
x4 |
|
FDD |
x1 |
|
PCI-e 6+2 Pin |
x4 |

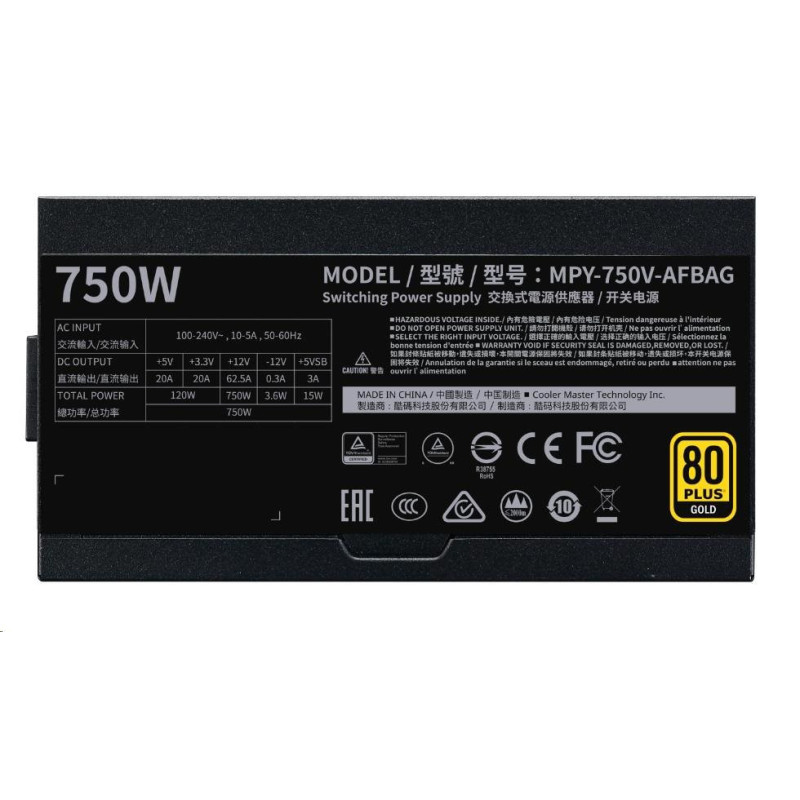

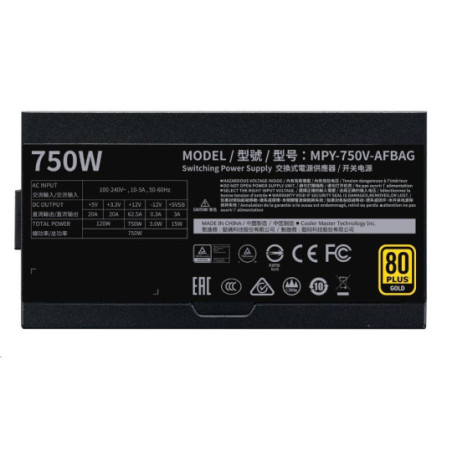

AC INPUT |
100-240V~ 10-5A 50-60Hz |
||||
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vstb |
20A |
20A |
62A |
0.3A |
3A |
|
TOTAL POWER |
130W |
744W |
3.6W |
15W |
|
750W |
Parametry
- Výkon zdroje (W)
- 750
