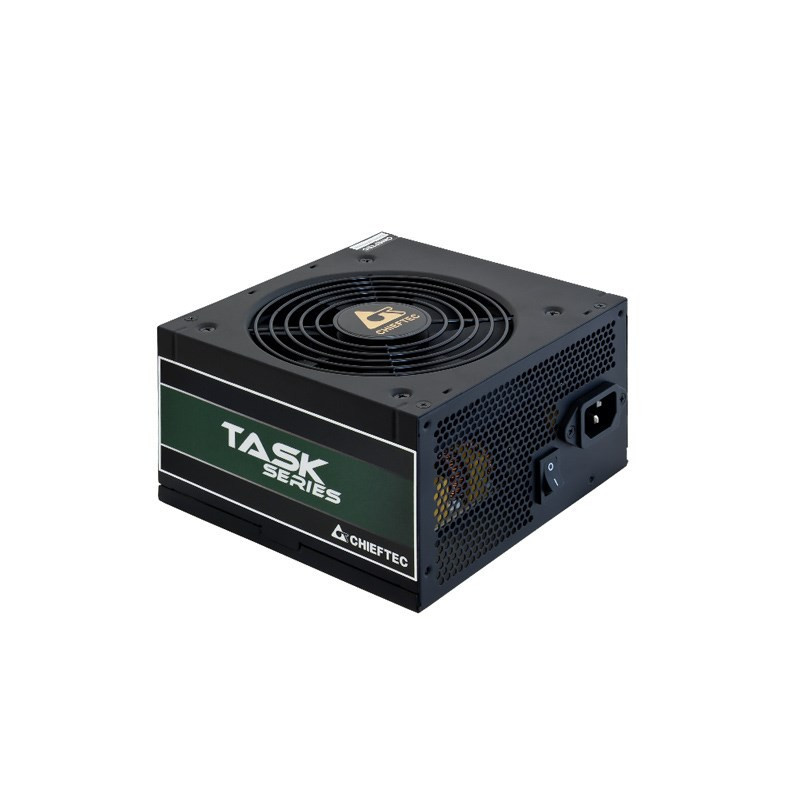

CHIEFTEC zdroj Task, TPS-500S, 500W, Full Range, 80+ Bronze, retail

Performance

AC Input:

115-230V / 7A

Frequency:

47 - 63Hz

+5V:

17A

+3,3V:

18A

+5V & +3,3V combined:

110W

+12V 1:

38A

+12V 2:

-

+12V 1 & +12V 2 combined:

N/A

+12V 3:

N/A

+12V 4:

N/A

+12V 3 & +12V 4 combined:

N/A

P.F.:

>0,9

-12V:

0,3A

+5VSB:

2,5A

Maximum Load:

500W

Native cable

20+4PIN ATX:

1

SATA:

5

MOLEX:

3

Floppy:

-

4PIN 12V:

-

8PIN 12V:

-

8PIN (4+4) 12V:

1

6PIN PCIe:

-

8PIN (6+2) PCIe:

2

Features

Spezification:

ATX 12V 2.3

Form factor:

PS II

Efficiency:

>85%

Dimension (DxWxH):

140 mm x 150 mm x 87 mm

PFC:

Active PFC (0,9)

Fan:

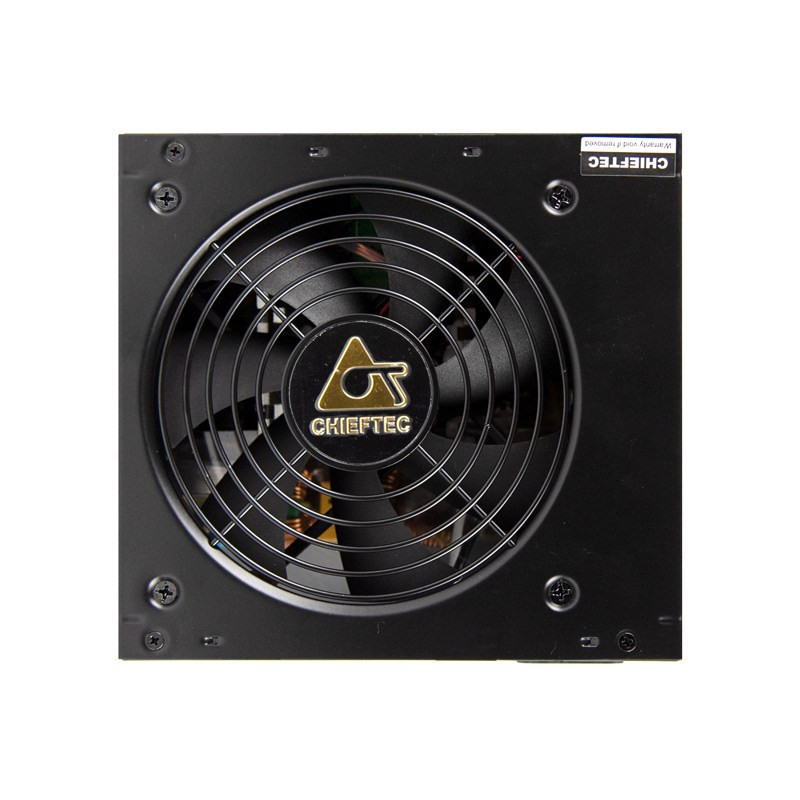

120mm silent fan

Security:

OVP (Overvoltage protection)

SCP (Short-circuit protection)

OPP (Overload protection)

Warranty:

24 Month
