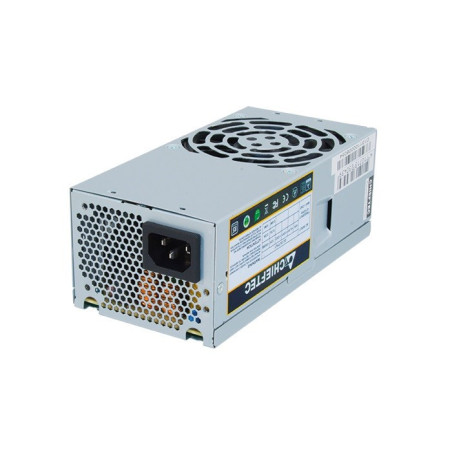

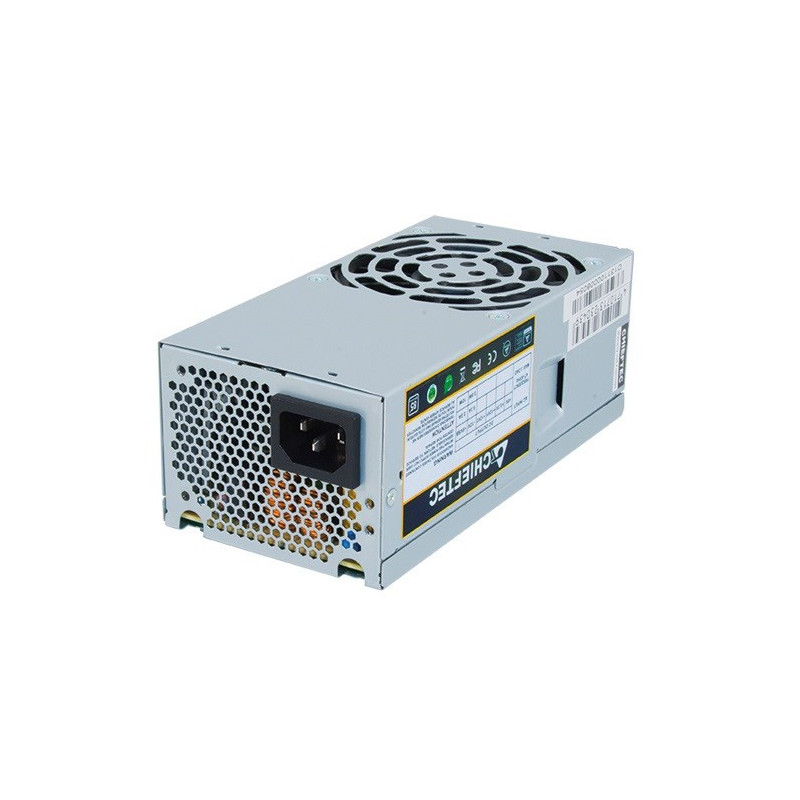

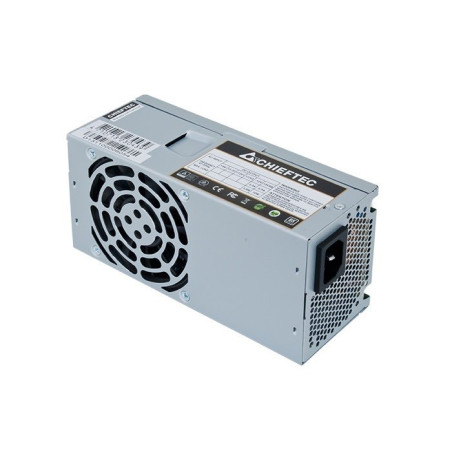

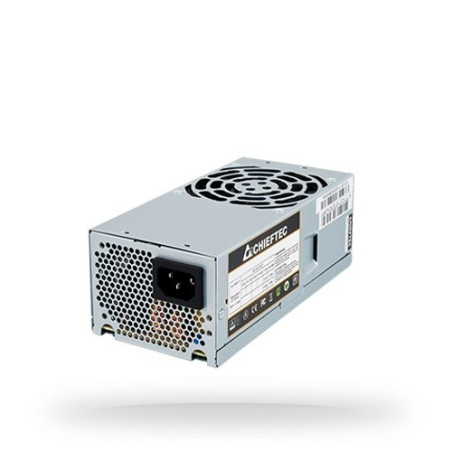

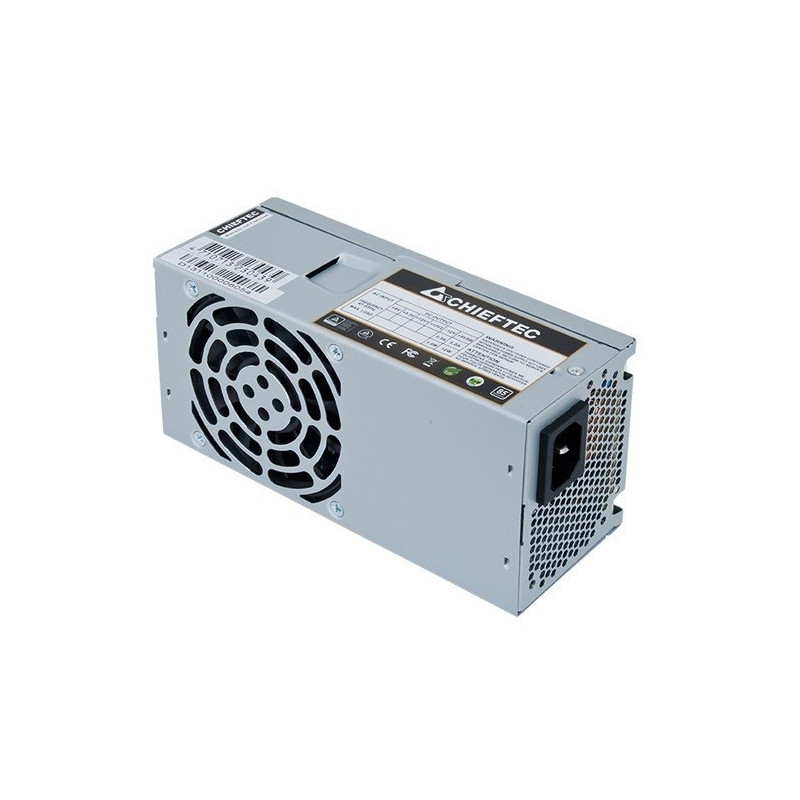

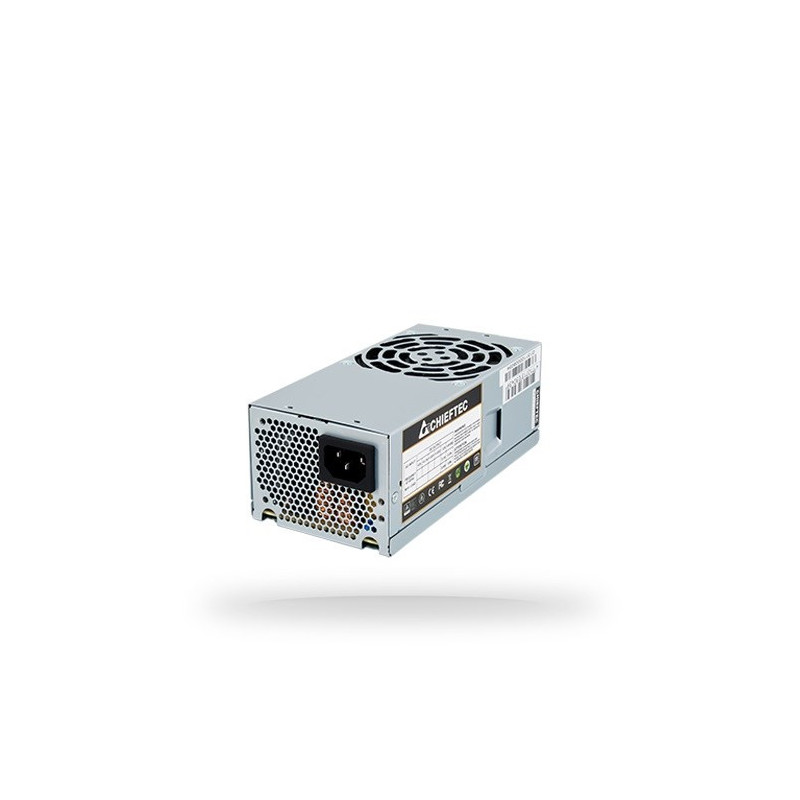

The latest generation of TFX power supplies comes with a new model: GPF-300P (12V version 2.3). Equipped with both a state-of-the-art interior and 80PLUS Bronze efficiency, this power supply is ideal for home entertainment systems or small size systems. Compatible with both Intel/AMD processors, featuring with active PFC and a smooth running, temperature-controlled fan, the CHIEFTEC GPF-300P provides reliable performance for enthusiast seeking for efficiency.

Performance

Model	Smart 300W
Article no.	GPF-300P
EAN code	4710713234666
Weight (without/with package)	1.07 kg / 1.13 kg
AC Input	115-230V / 6.3A
Frequency	47-63Hz
+5V	15A
+3,3V	16A
+5V & +3,3V combined	95W
+12V 1	14A
+12V 2	15A
+12V 1 & +12V 2 combined	-
P.F.	>0,9
-12V	0,3A / 3,6W
+5VsB	2.0A / 10W
Maximum Power	300W

Connectors

20+4PIN ATX	1
8 PIN EPS (4+4)	1
SATA	4
MOLEX	2
FLOPPY	1

Cable length

20+4PIN ATX	300
8 PIN EPS (4+4)	350
MOLEX/MOLEX/FLOPPY	350/150/150
SATA	2x 350/150

Features

Specification	ATX 12V 2.3
Form factor	PS II
Efficiency	80 PLUS Bronze
Dimension (DxWxH)	175mm x 85mm x 65mm
PFC	Active PFC (0.9)
Fan	80mm silent fan
Security	AFC (Automatic Fanspeed Control) OPP (Overload Protection) OVP (Overvoltage Protection) SCP (Short-circuit Protection) SIP (Surge & Inrush Protection) UVP (Undervoltage Protection)
Warranty	24 Months
