- 80 PLUS Gold certified efficiency

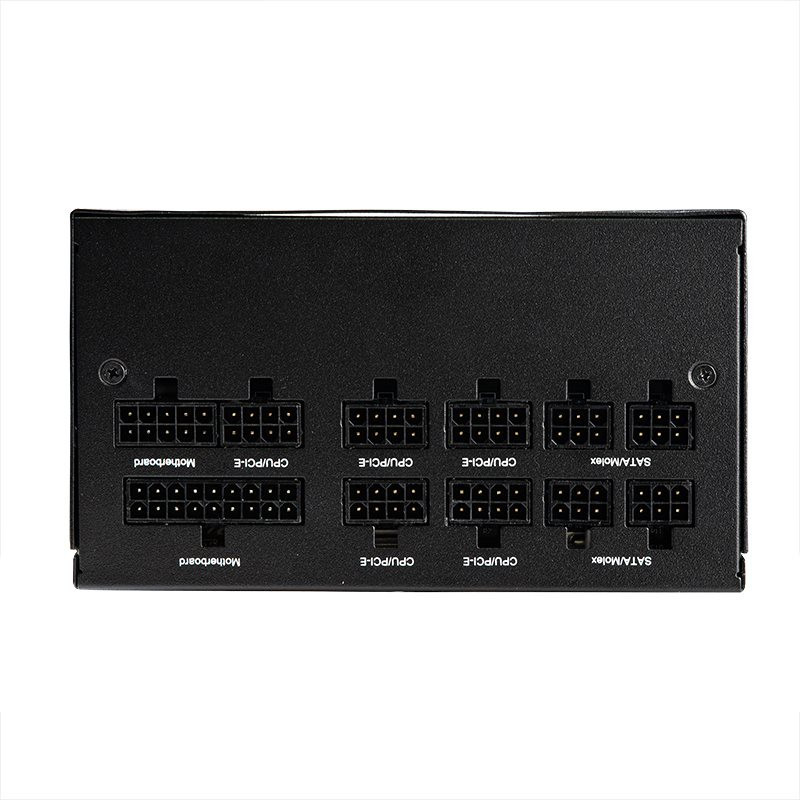

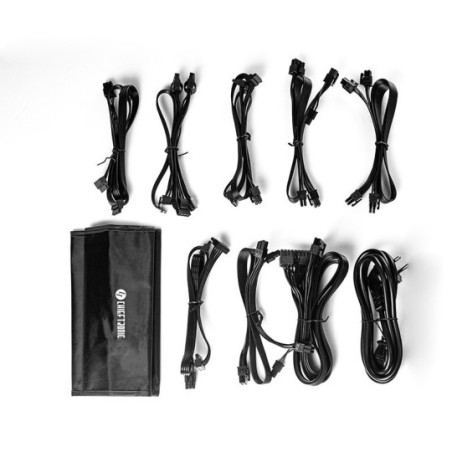

- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty

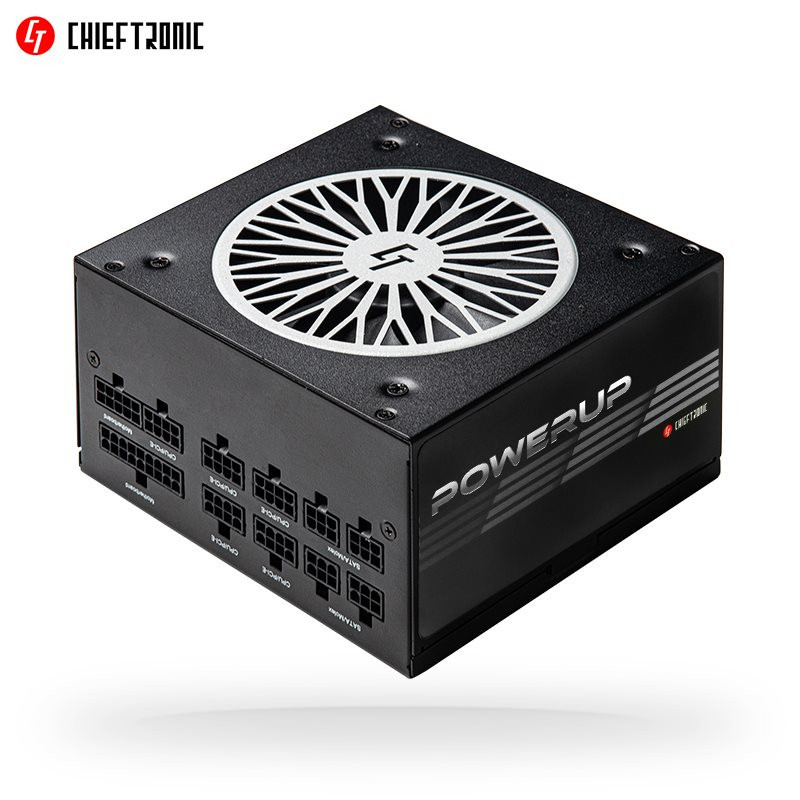

With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.

A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.

Performance

Model	PowerUp 650W
Article no.	GPX-650FC
EAN code	0753263077189
Weight (without/with package)	2.2 kg / 2.75 kg

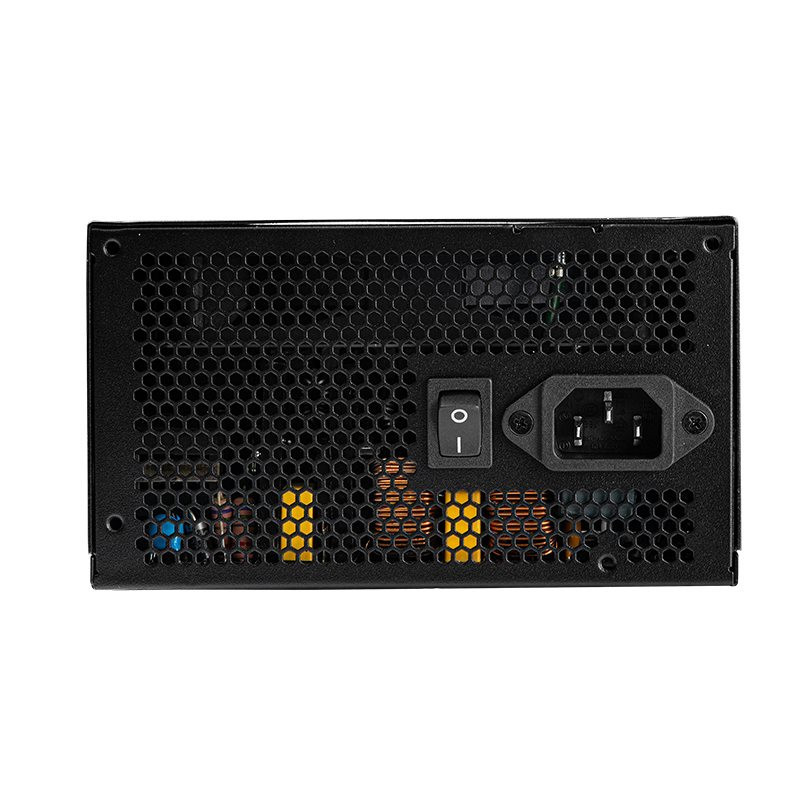

AC Input	100 - 240V / 10.0A
Frequency	47 - 63Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	100W
+12V	54A/ 648W
-12V	0.3A / 3.6W
+5VsB	2.5A / 12.5W
Maximum Power	650W

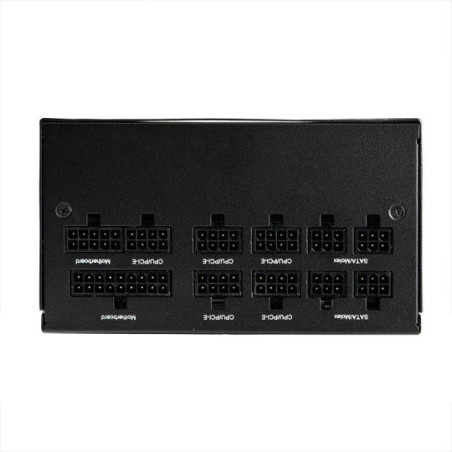

Connectors

20+4PIN ATX	1
8 PIN CPU (4+4)	2
8 PIN PCIe (6+2)	2
SATA	9
MOLEX	3
FLOPPY	1

Cable length

20+4PIN ATX	650
8 PIN CPU (4+4)	650/150
8 PIN PCIe (6+2)	2x 500
SATA	3x 500/150/150
MOLEX	500/150/150/150
FLOPPY	Molex

Features

ATX 12V Version	v2.53
Efficiency	80 PLUS Gold
Dimension (DxWxH)	140 mm x 150 mm x 86 mm
PFC	Active PFC

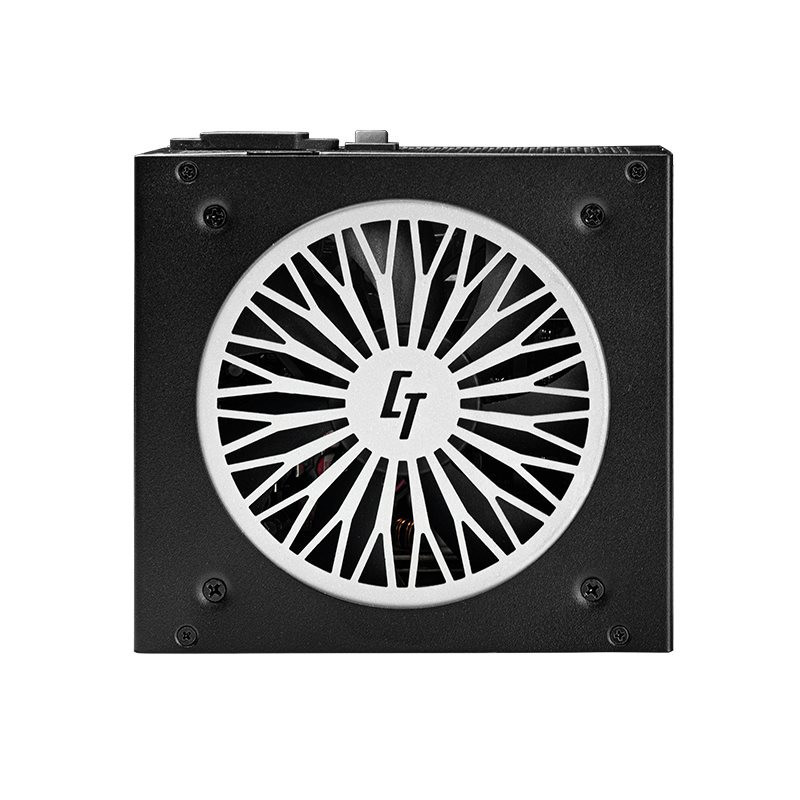

Fan	120mm silent fan
Security	OVP (Over voltage protection) OPP (Over power protection) OCP (Over current protection) SCP (Short-circuit protection) OTP (Over temperature protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) UVP (Undervoltage Protection) No-load operation
Warranty	60 Months
