Fortron zdroj FSP400-50WCB 80PLUS BRONZE, 2U, 400W

Formát zdroje:Jiný; Výkon zdroje (ve W):400; Konektory:PCIe 8-pin, SATA 15-pin, Molex
není skladem

PN: 9PA400MP03
SKU: 70257677
EAN: 4713224523618
Značka: Fortron
Záruka: 24 Měsíc(ů)
Záruka na IČ: 24 Měsíc(ů)

Značka:
Fortron
Cena s DPH:
2 571,00 Kč
Cena bez DPH:
2 124,79 Kč
Doba dodání:
na vyžádání

Podrobnosti

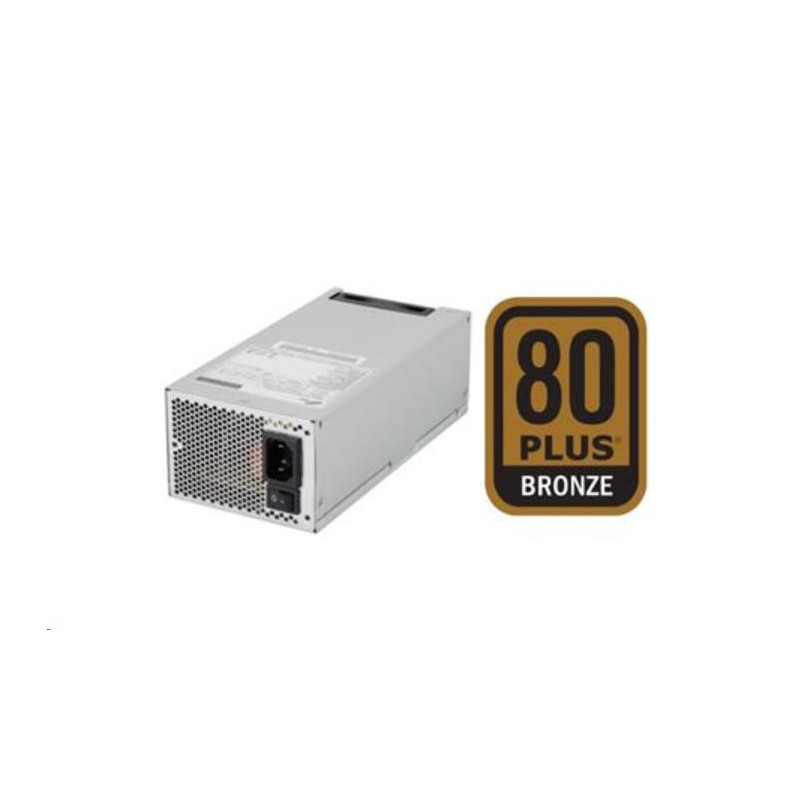

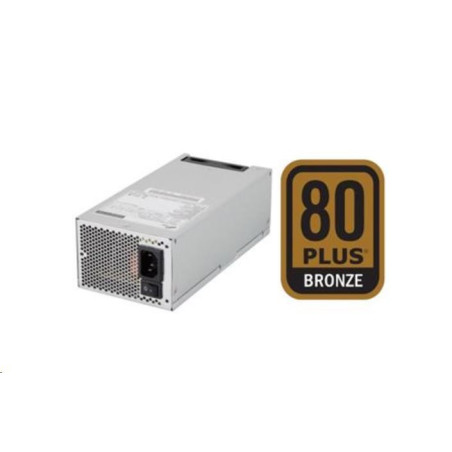

FSP/Fortron 2U FSP400-50WCB 80PLUS BRONZE, bulk, 400W

The FSP400-50WCB is a standard 2U switching power supply. The power supply offers a total power of up to 400 W, making it perfectly used in industrial environments. In addition, the power supply is the ideal solution for IPC control, workstation, communication or any other automation application. The product also meets the latest safety and EMC standards, which perfectly complies with various regulations around the world.

  • Certified CB 62368-1 & CB 60950-1
  • Meet 80 Plus Bronze
  • Design for 5,000 Meter above sea level
  • High Reliability
  • Low Ripple & Noise
  • Over Current Protection
  • Over Temperature Protection
  • Over Voltage Protection

TECHNICAL SPECIFICATIONS

Model FSP400-50WCB
Format 2U
Power supply 400W
PFC Active PFC
Power supply fan 70mm
Efficiency 80 Plus Bronze
Dimensions (L x W x H) 200 x 100 x 70 (mm)
7.00 x 3.94 x 2.76 (inch)
Hold-up time at 100% 115V / 60Hz: >= 10ms
Loading 230V / 50Hz: >= 12ms
Operating altitude 5,000 meters above sea leve
Working temperature 0°C to 50°C
Storage temperature -20°C to +80°C
Working humidity 85% RH non-condensing
Storage humidity 95% RH non-condensing
MTBF 100,000 hours of continuous operation at 25°C, Max,-output load
Applications Workstation, Storage System, IPC Controller
Input voltage 90-264Vac
Input frequency 47-63Hz
Input current 115Vac @ 6A, 130Vac @ 3A
Connectors 1x 20 + 4 PIN
1x 4pin P4 (12V)
2x SATA
3x PATA
2x PCI-E 8pin
1x FDD

Parametry

Výkon zdroje (W)
400
