Fortron FSP300-50UCB 300W 9PA300H701

Formát zdroje:Jiný; Výkon zdroje (ve W):300; Konektory:SATA 15-pin, Molex
SKLADEM 3 ks

PN: 9PA300H701
SKU: 70257676
EAN: 4713224523588
Značka: Fortron
Záruka: 24 Měsíc(ů)
Záruka na IČ: 24 Měsíc(ů)

Značka:
Fortron
Cena s DPH:
2 132,00 Kč
Cena bez DPH:
1 761,98 Kč
Doba dodání:
obvykle do 48 hodin

Podrobnosti

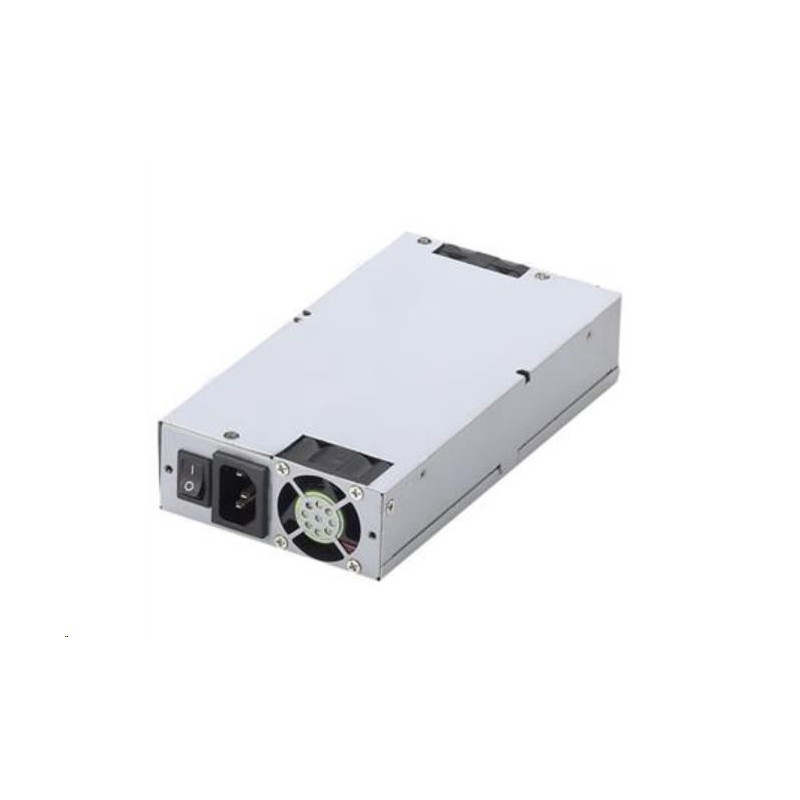

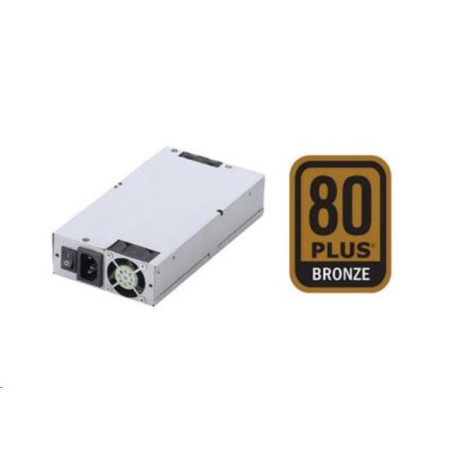

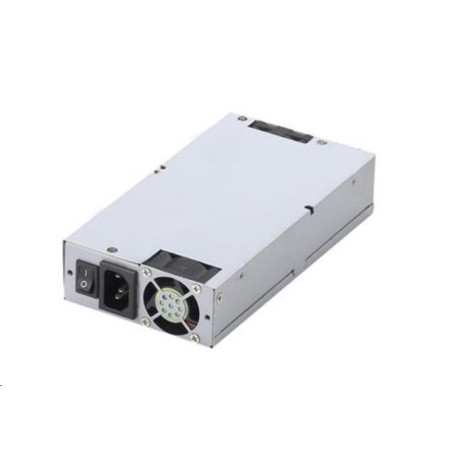

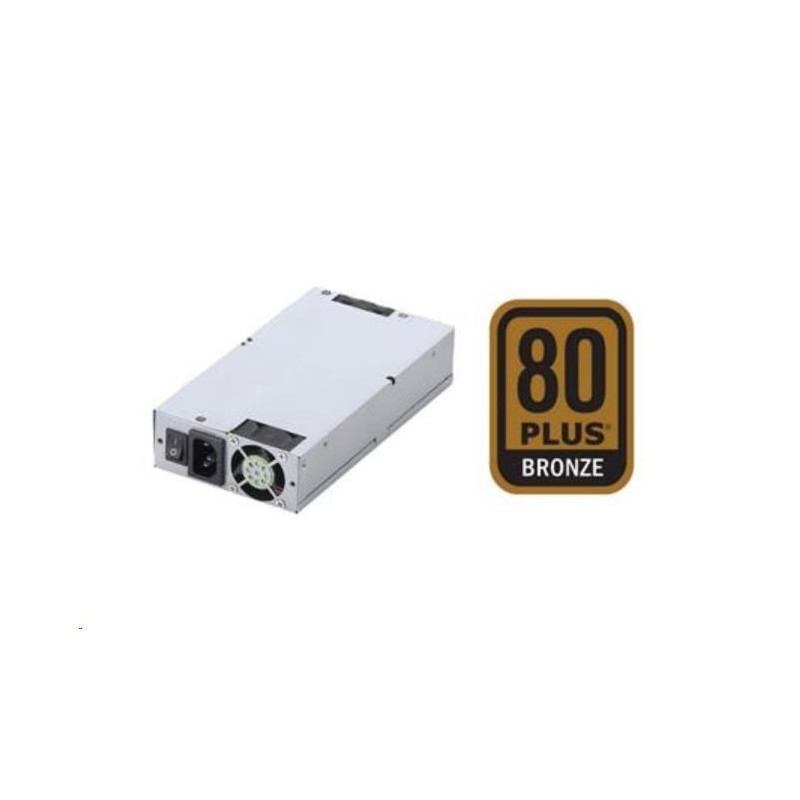

FSP/Fortron 1U FSP300-50UCB 80PLUS BRONZE, bulk, 300W

The FSP300-50UCB is a standard 1U power supply. The power supply offers a total capacity of up to 300 W, which makes it the perfect solution in an industrial environment.

  • Certified CB 62368-1 & CB 60950-1
  • Meet 80 Plus Bronze
  • Design for 5,000 Meter above sea level
  • High Reliability
  • Low Ripple & Noise
  • Over Current Protection
  • Over Temperature Protection
  • Over Voltage Protection

TECHNICAL SPECIFICATIONS

Model FSP300-50UCB
Format 1U
Power supply 300W
PFC Active PFC
Power supply fan 40mm
Efficiency 80 Plus Bronze
Dimensions (L x W x H) 190 x 100 x 40.5 (mm)
7.49 x 3.94 x 1.6 (inch)
Hold-up time at 100% 115V / 60Hz: >= 10ms
Loading 230V / 50Hz: >= 12ms
Operating altitude 5,000 meters above sea leve
Working temperature 0°C to 50°C
Storage temperature -20°C to +80°C
Working humidity 85% RH non-condensing
Storage humidity 95% RH non-condensing
MTBF 100,000 hours of continuous operation at 25°C, Max,-output load
Applications Workstation, Storage System, IPC Controller
Input voltage 90-264Vac
Input frequency 47-63Hz
Input current 115Vac @ 6A, 230Vac @ 3A
Connectors 1x ATX 24 PIN connector
2x SATA
2x MOLEX
1x 4 pin

Parametry

Výkon zdroje (W)
300
