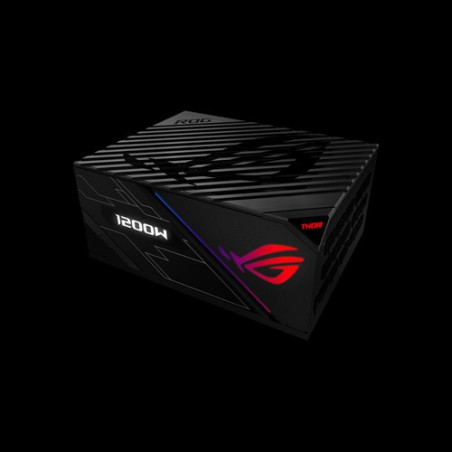

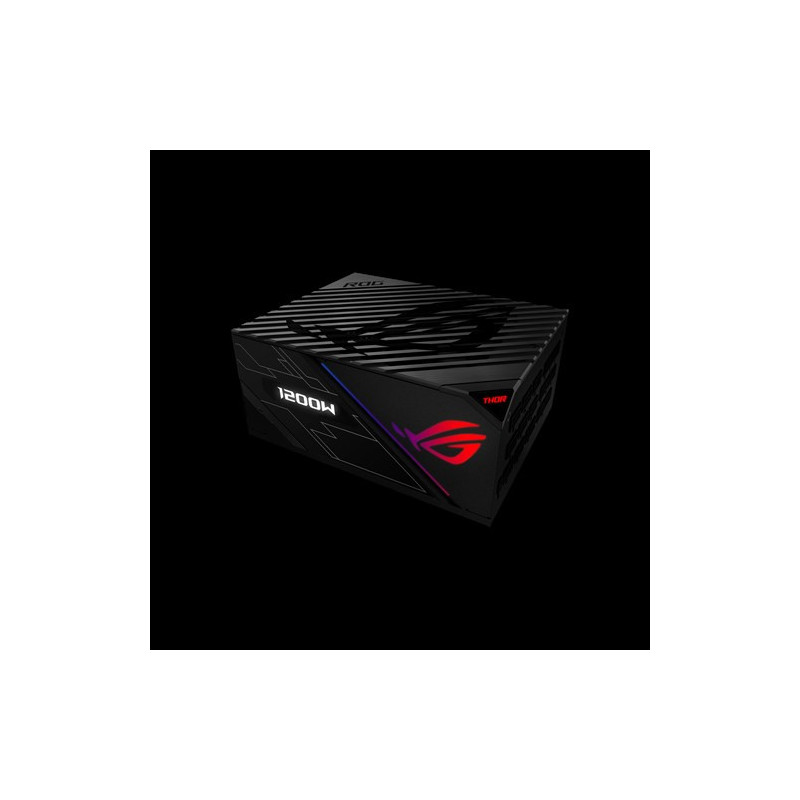

ROG Thor 1200W Platinum Power Supply Unit stands out with Aura Sync and an OLED display
TECHNICAL SPECIFICATIONS
| Intel Specification | ATX12V |
| Dimensions | 19 x 15 x 8.6 cm |
| Efficiency | 80Plus Platinum At 20%/50%/100% load AC 115V 60Hz and AC 230V 50Hz the power efficiency is 90%/92%/89% |
| Protection Features | OPP/OVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| RGB Connector | Compatible with ASUS Aura Sync |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 100A 0.3A 3A |
| Total Output | 1200W |
| Connectors | MB 24/20-pin x 1 CPU 8/4-pin x 2 PCI-E 8/6-pin x 8 SATA x 12 Peripheral 4-pin x 5 Floppy x 1 |
| Package Contents | Power Cord x 1 Motherboard Power Cable (24-pin) x 1 CPU Cable (4+4-pin) x 2 PCI-E Cable (6+2-pin) x 6 SATA Cable x 3 Peripheral x 2 SATA to Peripheral Cable x 1 Floppy Cable x 1 Addressable RGB Cables x 2 ROG Sticker x 1 ROG Cable Tie x 6 Sleeved Cable Combs (6-pin) x 4 Sleeved Cable Combs (8-pin) x 10 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
