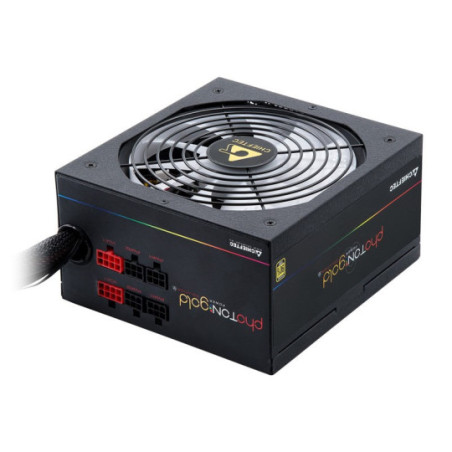

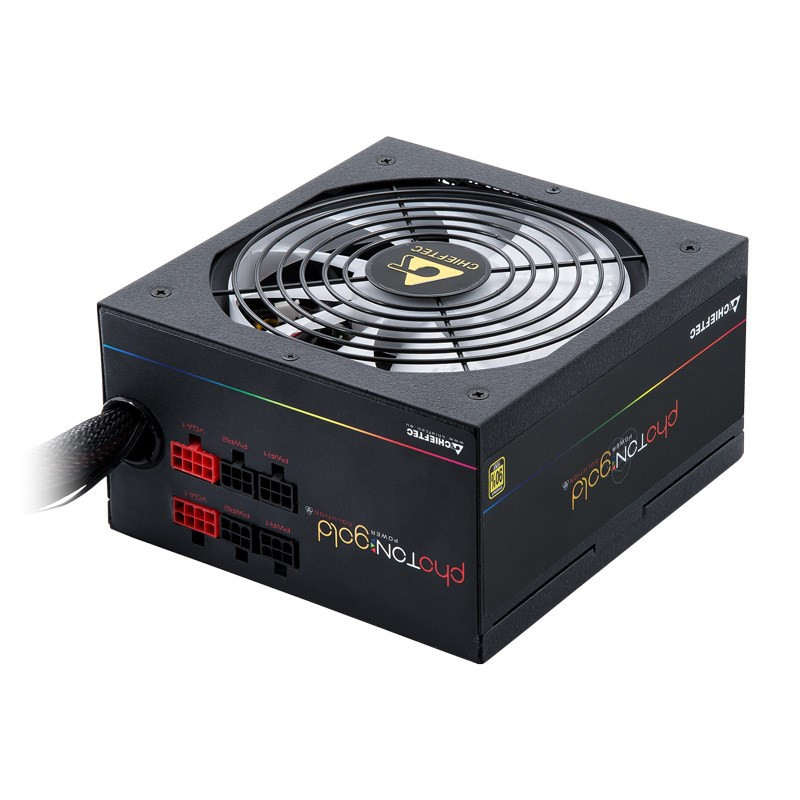

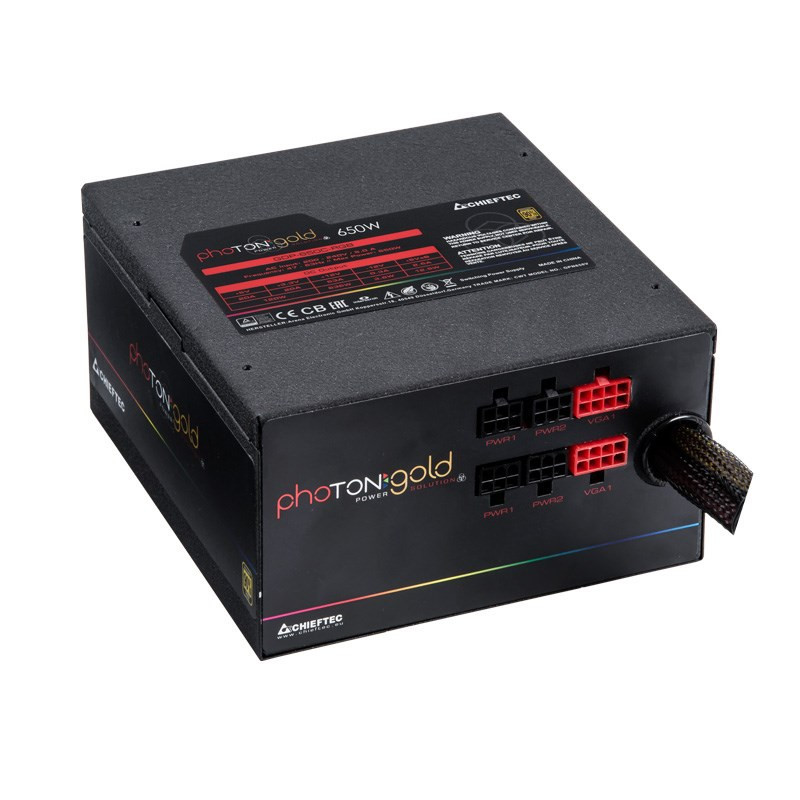

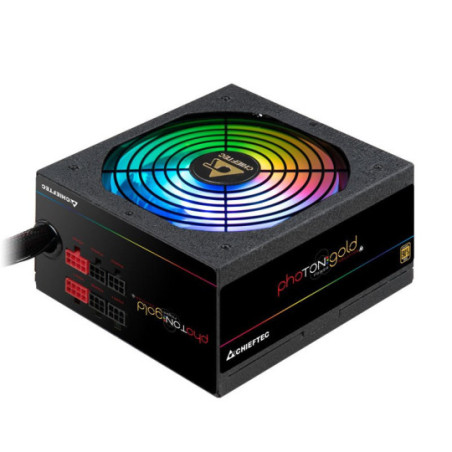

CHIEFTEC zdroj Photon Gold, GDP-750C-RGB, 750W, ATX-12V V.2.3/EPS-12V, PS-2, 14cm RGB fan, -90%

Formát zdroje:ATX; Výkon zdroje (ve W):750; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 20-pin, ATX 24-pin; Vlastnosti zdroje:Modulární kabeláž
není skladem

PN: GDP-750C-RGB
SKU: 70257618
EAN: 753263075901
Značka: Chieftec
Záruka: 24 Měsíc(ů)
Záruka na IČ: 24 Měsíc(ů)

Značka:
Cena s DPH:
2 726,00 Kč
Cena bez DPH:
2 252,89 Kč
Doba dodání:
na vyžádání


Podrobnosti

Supports all renowned RGB synchronization systems

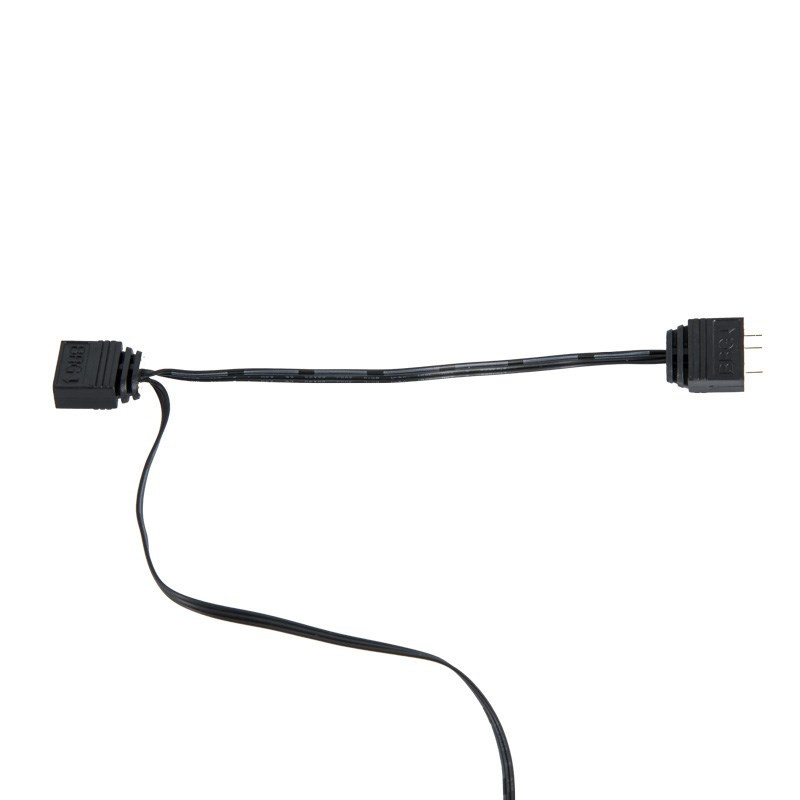

- Rainbow RGB fan with a +5V addressable LED connector
- High-Performance (90% Eff. @230V) RGB Gaming

The highly innovative Photon GOLD series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC and GIGABYTE™ RGB FUSION.

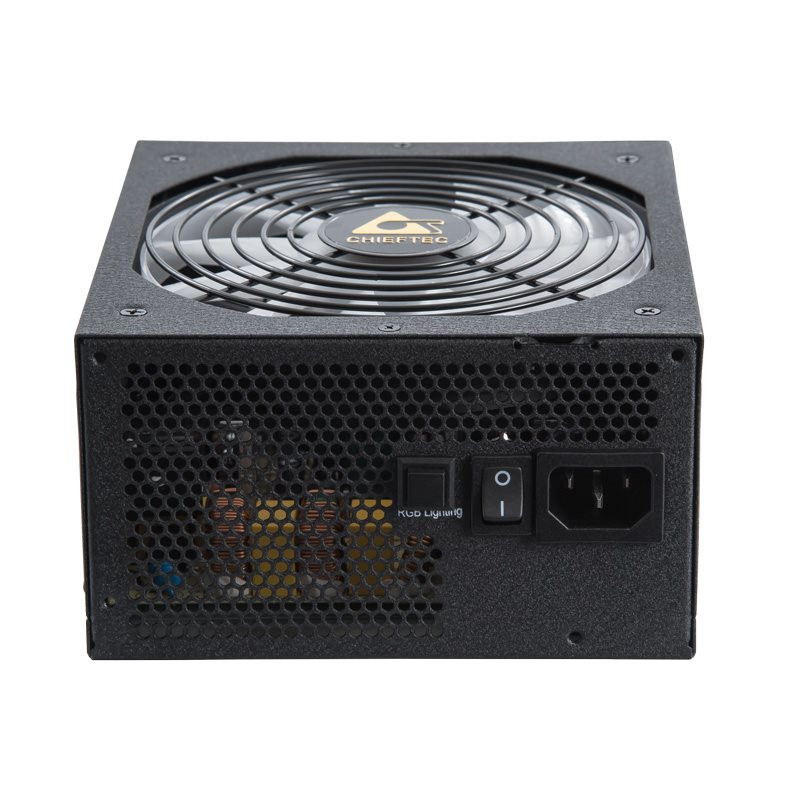

Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.

Performance

Model Photon Gold 750W
Article no. GDP-750C-RGB
EAN code 0753263075901
Weight (without/with package) 2,3 kg/ 2,6 kg
AC Input 200-240V / 5A
Frequency 47 - 63Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V 1 62A / 744W
+12V 2 -
+12V 1 & +12V 2 combined -
P.F. >0,9
-12V 0,3A / 3,6W
+5VsB 2,5A / 12,5W
Maximum Power 750W

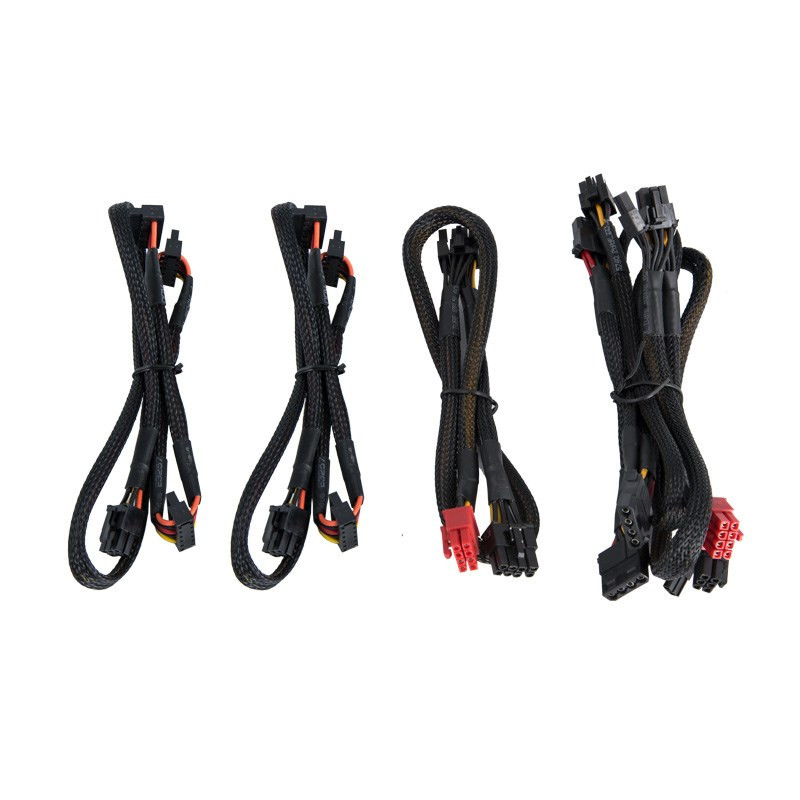

Connectors

20+4PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 4
SATA 8
MOLEX 3
FLOPPY 1
+5V RGB LED 1

Cable length

20+4PIN ATX 550
8 PIN EPS (4+4) 550
8 PIN PCIe (6+2) 2x 550/150
SATA 2x 550/150/150/150
MOLEX 550/150/150/150
FLOPPY Molex
+5V RGB LED 550

Features

Specification ATX 12V 2.3
Form factor PS II
Efficiency >90%
Lightning modes 14x dynamic modes integrated
Dimension (DxWxH) 160 mm x 150 mm x 87 mm
PFC Active PFC (0,9) (only 230V)

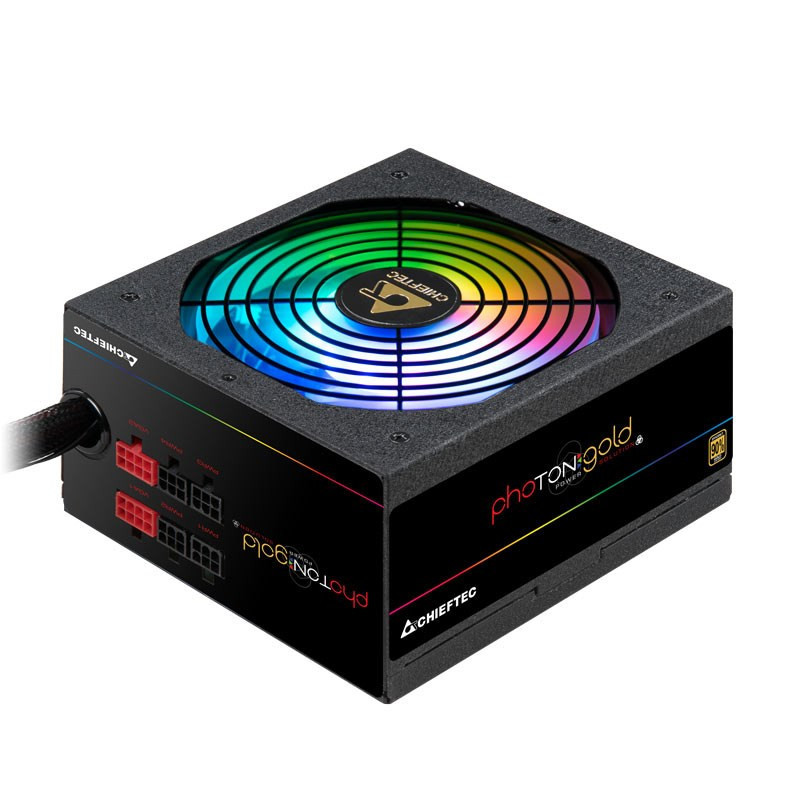

Fan 140mm silent RGB Rainbow fan
Security
  • UVP (Undervoltage protection)
  • OVP (Overvoltage protection)
  • SCP (Short-circuit protection)
  • OPP (Overload protection)
  • AFC (Automatic Fanspeed Control)
  • SIP (Surge & Inrush Protection)
Warranty 24 Months
