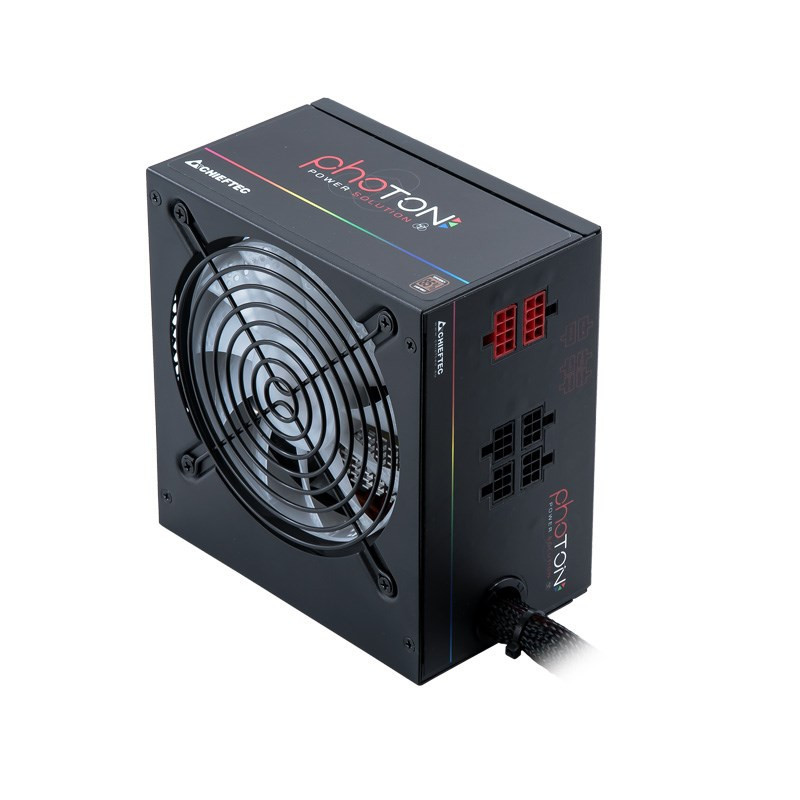

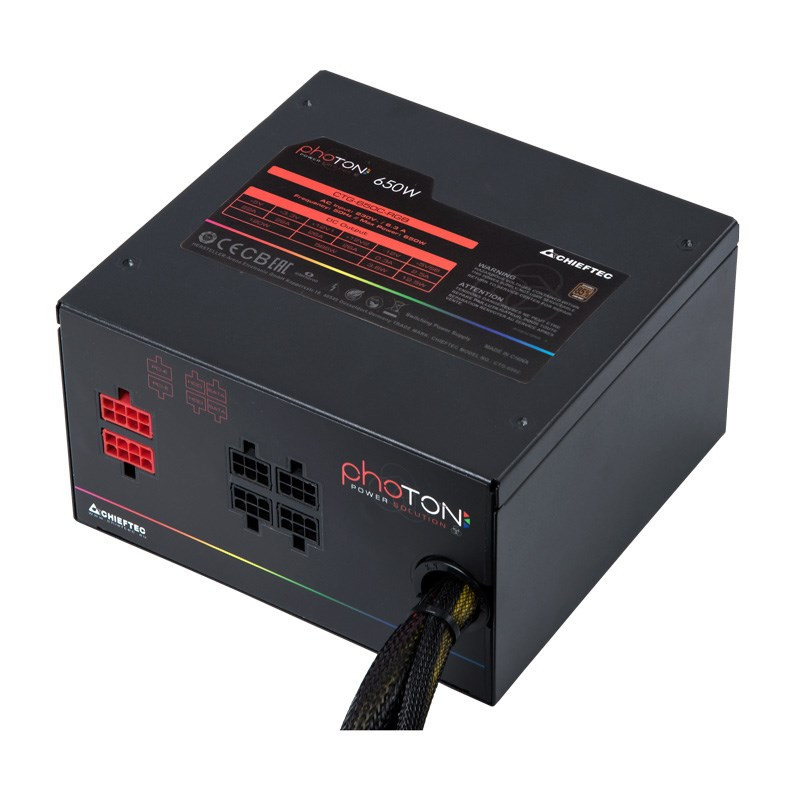

CHIEFTEC zdroj Photon Series, CTG-650C-RGB, 650W, 12cm RGB fan, Active PFC, Modular, Retail, 85+

Formát zdroje:ATX; Výkon zdroje (ve W):650; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž
není skladem

PN: CTG-650C-RGB
SKU: 70257615
EAN: 753263075918
Značka: Chieftec
Záruka: 24 Měsíc(ů)
Záruka na IČ: 24 Měsíc(ů)

Značka:
Cena s DPH:
2 420,00 Kč
Cena bez DPH:
2 000,00 Kč
Doba dodání:
na vyžádání


Podrobnosti

Supports all renowned RGB synchronization systems

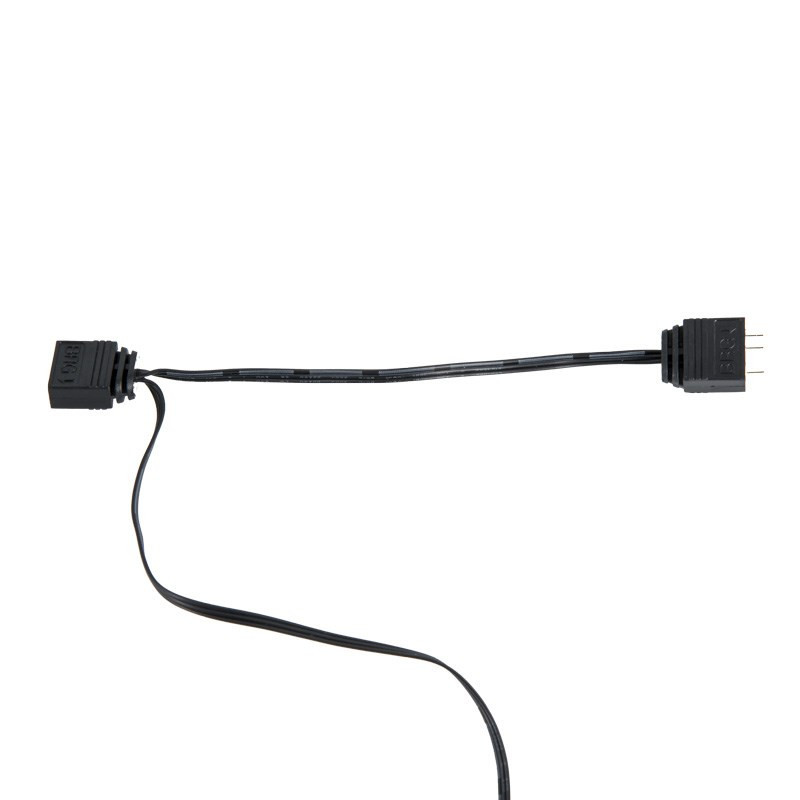

- Rainbow RGB fan with a +5V addressable LED connector
- High-Performance (85% Eff. @230V) RGB Gaming

The highly innovative Photon series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC and GIGABYTE™ RGB FUSION.

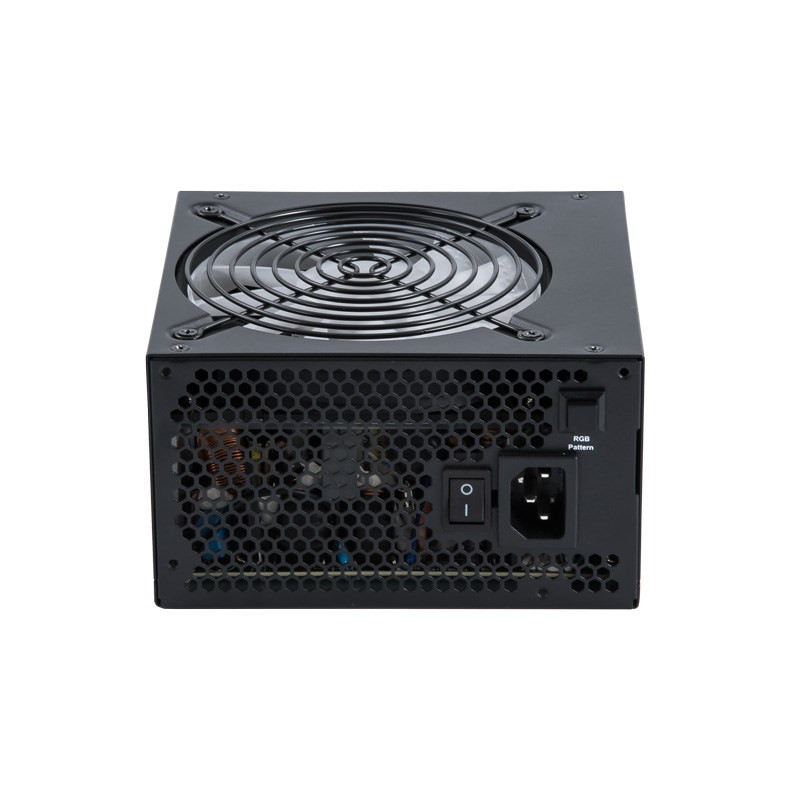

Photon series in addition provide a vast number of predefined and MB-independent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its modular cables and related vast amount of connectors, an efficiency of 85% @230V, coupled with its highly competitive price positioning, the models of the Photon series stand out as perfect RGB Gaming solutions.

Performance

Model Photon 650W
Article no. CTG-650C-RGB
EAN code 0753263075918
Weight (without/with package) 2,14 kg / 2,54 kg
AC Input 230V / 6,3A
Frequency 50Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V 1 26A
+12V 2 26A
+12V 1 & +12V 2 combined 585W
P.F. >0,9
-12V 0,3A / 3,6W
+5VsB 2,5A / 12,5W
Maximum Power 650W

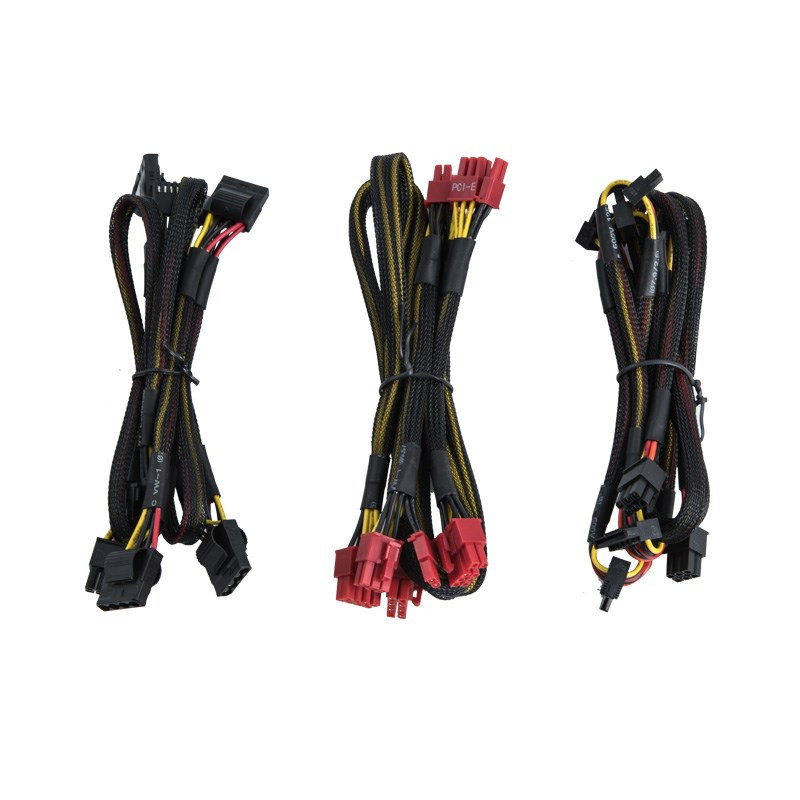

Connectors

24PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 4
SATA 6
MOLEX 4
FLOPPY 2
+5V RGB LED 1

Cable length

24PIN ATX 550
8 PIN EPS (4+4) 600
8 PIN PCIe (6+2) 2x 550/150
SATA 2x 450/150/150
MOLEX 2x 450/150/150
FLOPPY Molex
+5V RGB LED 600/100

Features

Specification ATX 12V 2.3
Form factor PS II
Efficiency >85%
Lightning modes 17x dynamic modes integrated
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC (0,9) (only 230V)

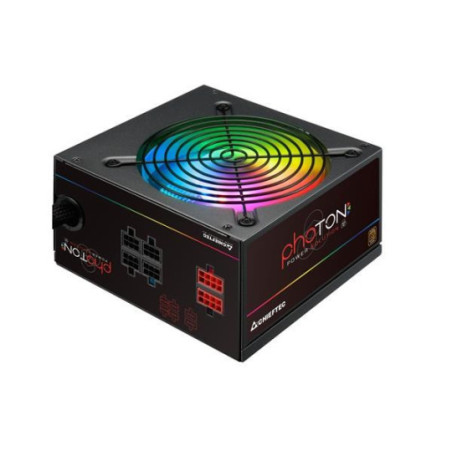

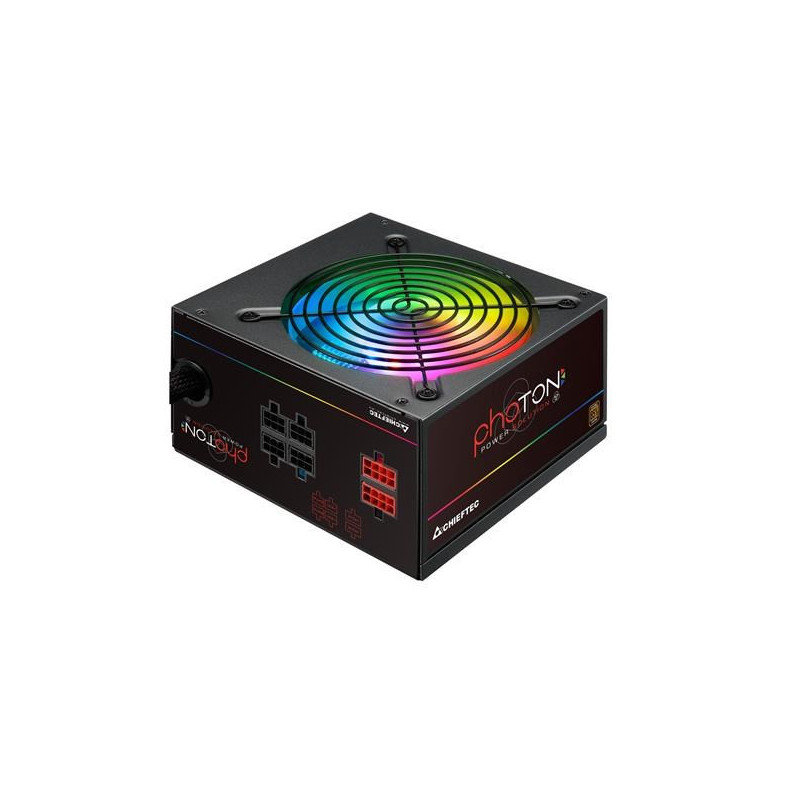

Fan 120mm silent RGB Rainbow fan
Security
  • UVP (Undervoltage protection)
  • OVP (Overvoltage protection)
  • SCP (Short-circuit protection)
  • OPP (Overload protection)
  • AFC (Automatic Fanspeed Control)
  • SIP (Surge & Inrush Protection)
Warranty 24 Months
