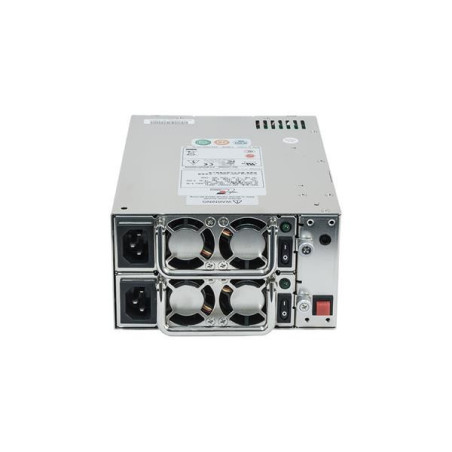

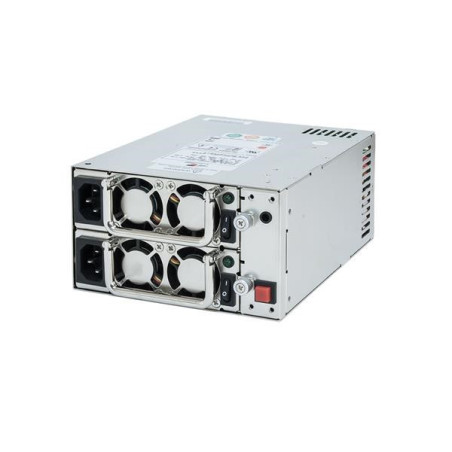

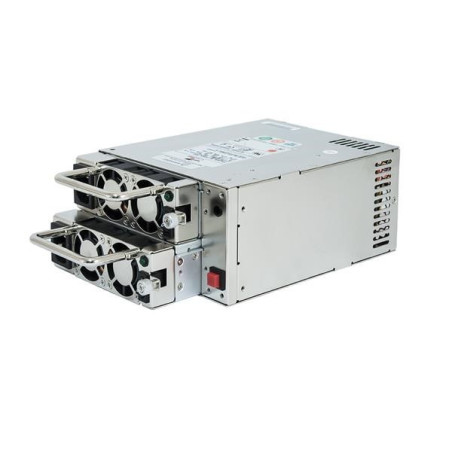

CHIEFTEC redundantní zdroj MRW-5600G, 2x600W, ATX-12V V.2.3, PS-2 type, PFC, 80+ Gold

Specification:

ATX 12V 2.3

Form factor:

PS II

Efficiency:

>90%

Dimension (DxWxH):

185 mm x 150 mm x 87 mm

PFC:

Active PFC (0,9)

Fan:

40mm fan (2x 40mm per module)

Security:

Metal frame

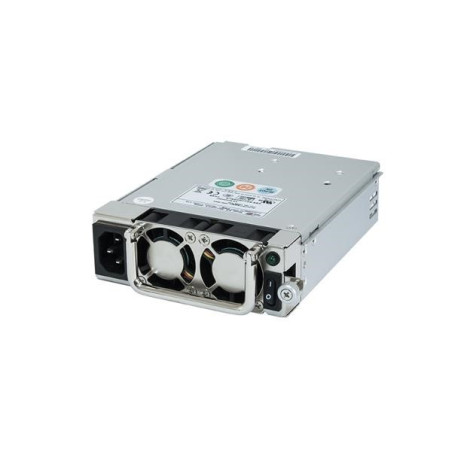

2 x 320W modules

TTL-Signal

Buzzer- & LED Alarm

Hot-swap, hot-plug features

Full range Input 100V~240V

Meet FCC, CISPR EMI regulation

Balanced load sharing design

UVP (Undervoltage protection)

Dual OVP (Overvoltage protection)

SCP (Short-circuit protection)

OPP (Overload protection)

OCP (Overcurrent protection)

OTP (Over Temperature Protection)

Certificates:

80PLUS Gold

Performance

AC Input:

100V / 9A | 240V / 4A

Frequency:

47-63 Hz

+5V:

25A

+3,3V:

25A

+12V1:

49A

+5V & +3,3V combined:

170W

+5V & +3,3V +12V1 combined:

N/A

P.F.:

>0,9

-5V:

N/A

-12V:

0,8A

+5VSB:

3,5A

Maximum Load:

600W

Connectors

Native cable:

24PIN:

===600mm===[24PIN]

SATA:

===600mm===[SATA]===200mm===[SATA]

Molex:

===600mm===[Molex]===200mm===[Molex]

Molex:

===600mm===[Molex]===200mm===[Molex]

Molex/Floppy:

===600mm===[Molex]===200mm===[Floppy]

8PIN EPS:

===600mm===[EPS]

8PIN EPS (4+4):

===600mm===[EPS]

TTL Signal-Kabel (red/black):

===750mm===[2PIN]

Buzzer Reset-Kabel (yellow/black):

===750mm===[2PIN]
