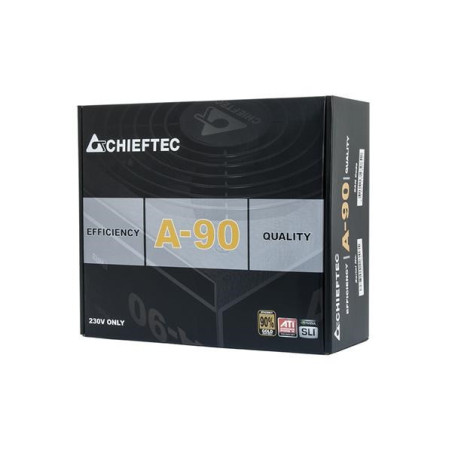

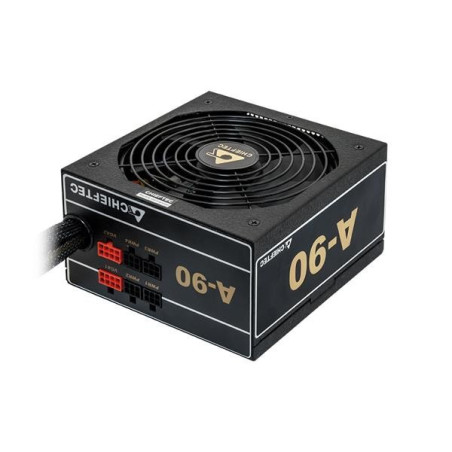

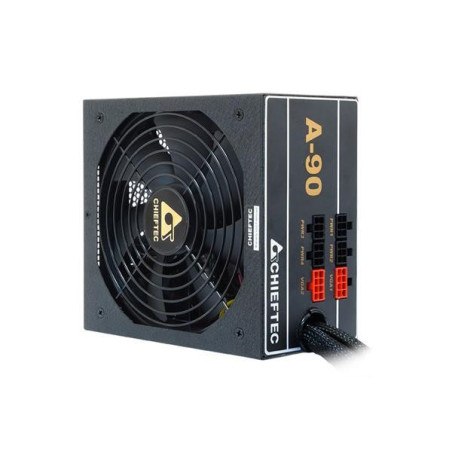

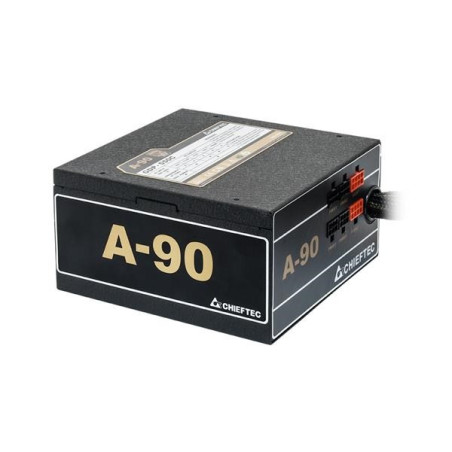

CHIEFTEC zdroj A90 Series, GDP-750C, 750W, ATX-12V V.2.3/EPS-12V, PS-2, 14cm fan, -90%

Specification:

ATX 12V 2.3

Form factor:

PS II

Efficiency:

>90%

Dimension (DxWxH):

160 mm x 150 mm x 87 mm

PFC:

Active (0,9)

Fan dimension:

140mm silent fan

Safety:

UVP (Undervoltage protection)

OVP (Overvoltage protection)

SCP (Short-circuit protection)

OPP (Overload protection)

OCP (Overcurrent protection)

OTP (Over Temperature Protection)

AFC (Automatic Fanspeed Control)

Certificate:

ATI Crossfire / Nvidia SLI

AC Input:

200-240V / 4A

Frequency:

47 - 63Hz

+5V:

22A

+3,3V:

22A

+5V & +3,3V combined:

120W

+12V 1:

62A / 744W

+12V 2:

N/A

+12V 1 & +12V 2 combined:

N/A

+12V 3:

N/A

+12V 4:

N/A

+12V 3 & +12V 4 combined:

N/A

P.F.:

>0,9

-12V:

0,3A

+5VSB:

2,5A

Maximum Load:

750W

Connectors

Native Cable:

20+4PIN:

===550mm===[20+4PIN]

8PIN EPS (4+4):

===550mm===[8PIN EPS]

Modular Cable:

SATA:

===550mm===[SATA]===150mm===[SATA]===150mm===[SATA]

SATA:

===550mm===[SATA]===150mm===[SATA]===150mm===[SATA]

Molex / Floppy:

===550mm===[Molex]===150mm===[Molex]===150mm===[Molex]===150mm===[Floppy]

8PIN PCIe (6+2):

===550mm===[PCIe]

8PIN PCIe (6+2):

===550mm===[PCIe]
