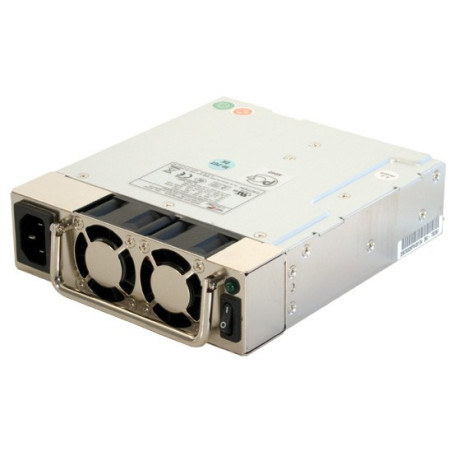

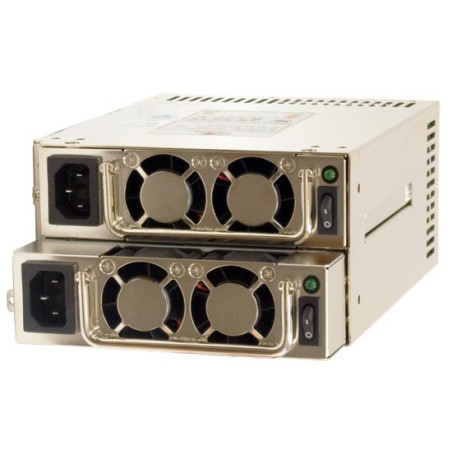

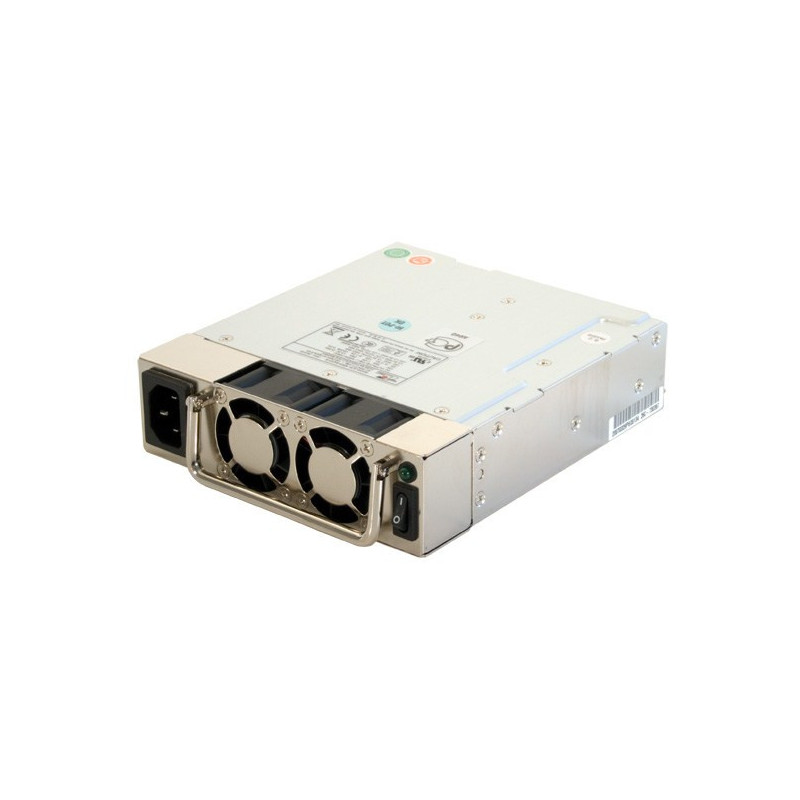

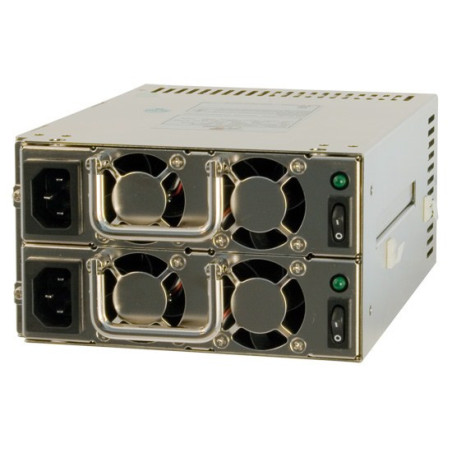

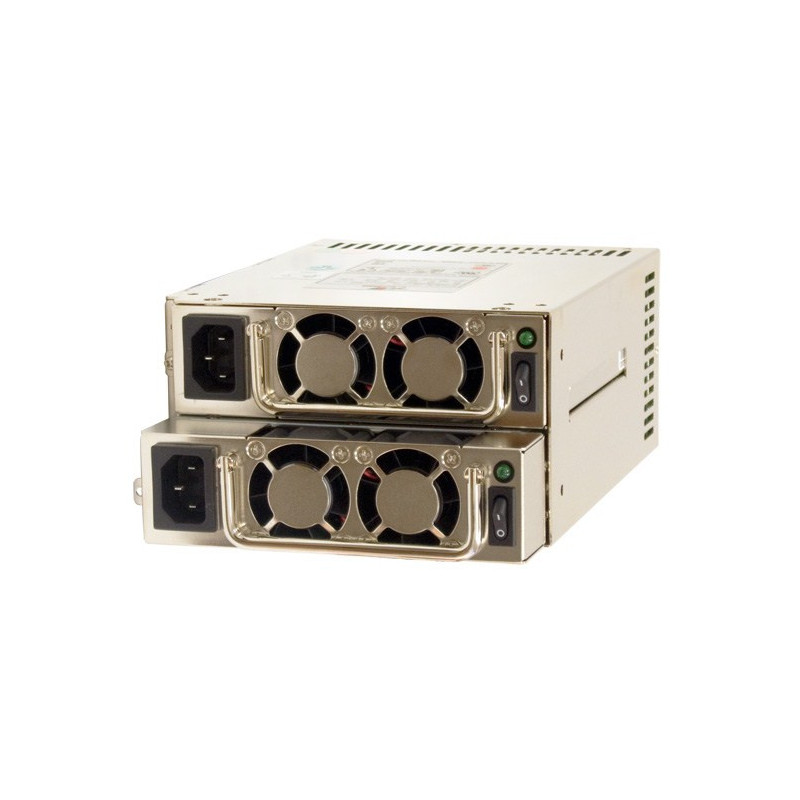

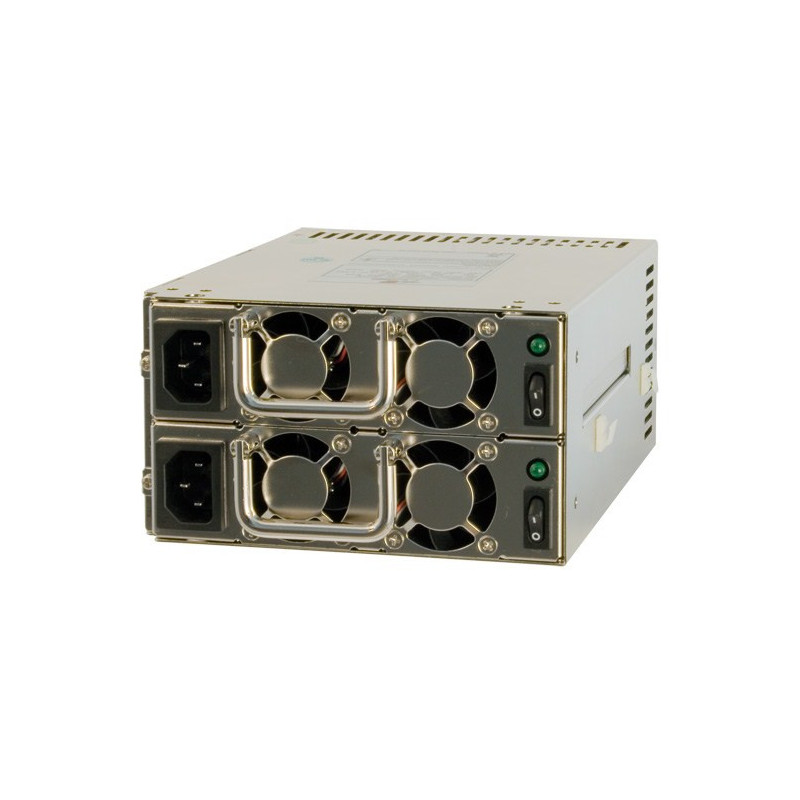

CHIEFTEC redundantní zdroj MRW-5600V, 600W, 80+
- Sdílet na facebook
- Dotaz na produkt
- favorite_border Přidat do oblíbených favorite Odebrat z oblíbených
Formát zdroje:ATX; Výkon zdroje (ve W):600; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin
Podrobnosti
http://www.chieftec.eu/en/psus/redundant-psus/mrw-5600v.html
Performance:
|
AC Input:
|
100V / 9A | 240V / 4A
|
|
Frequency:
|
47-63 Hz
|
|
+5V:
|
25A
|
|
+3,3V:
|
25A
|
|
+12V1:
|
49A
|
|
+5V & +3,3V combined:
|
170W
|
|
+5V & +3,3V +12V1 combined:
|
N/A
|
|
P.F.:
|
>0,9
|
|
-5V:
|
N/A
|
|
-12V:
|
0,8A
|
|
+5VSB:
|
3,5A
|
|
Maximum Load:
|
600W
|
Connectors (native cables):
|
20+4PIN:
|
|
===550mm===[24PIN]
|
|
SATA:
|
|
===550mm===[SATA]===200mm===[SATA]
|
|
SATA:
|
|
===550mm===[SATA]===200mm===[SATA]
|
|
Molex:
|
|
===550mm===[Molex]===200mm===[Molex]
|
|
Molex:
|
|
===550mm===[Molex]===200mm===[Molex]
|
|
Molex:
|
|
===550mm===[Molex]===200mm===[Molex]
|
|
Molex/Floppy:
|
|
===550mm===[Molex]===200mm===[Floppy]
|
|
Molex/Floppy:
|
|
===550mm===[Molex]===200mm===[Floppy]
|
|
8PIN EPS:
|
|
===550mm===[8PIN]
|
|
8PIN EPS (4+4):
|
|
===550mm===[EPS]
|
|
6PIN PCIe:
|
|
===550mm===[PCIe]
|
|
TTL Signal cable (red/black):
|
|
===1140mm===[2PIN]
|
|
Buzzer reset cable (yellow/black):
|
|
===740mm===[2PIN]
|
|
System power LED (red/black/green):
|
|
===1130mm===[LED]
|
Features:
|
Specification:
|
ATX 12V 2.3
|
|
Form faktor:
|
PS II
|
|
Efficiency:
|
>80%
|
|
Dimension (DxWxH):
|
210 mm x 150 mm x 87 mm
|
|
PFC:
|
Active PFC (0,9)
|
|
Fan:
|
40mm fan (2x 40mm pro Module)
|
|
Security:
|
Metal frame
|
|
2 x 600W Module
|
|
|
TTL-Signal
|
|
|
Buzzer- & LED Alarm
|
|
|
Hot-swap, hot-plug features
|
|
|
Full range Eingang 100V~240V
|
|
|
Meet FCC, CISPR EMI regulation
|
|
|
Balanced load sharing design
|
|
|
UVP (Undervoltage protection)
|
|
|
Dual OVP (Overvoltage protection)
|
|
|
SCP (Short-circuit protection)
|
|
|
OPP (Overload protection)
|
|
|
OCP (Overcurrent protection)
|
|
|
OTP (Over Temperature Protection)
|
|
|
MTBF (mean time between failure): >100.000h
|
Parametry
- Výkon zdroje (W)
- 600
