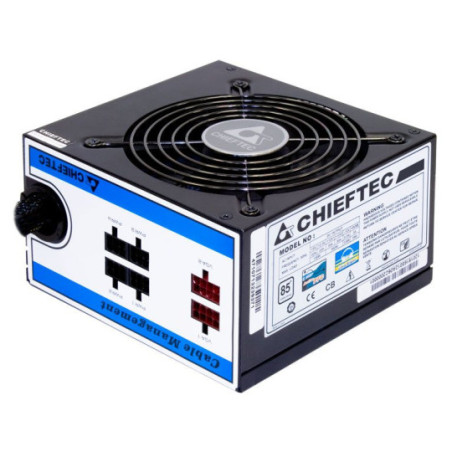

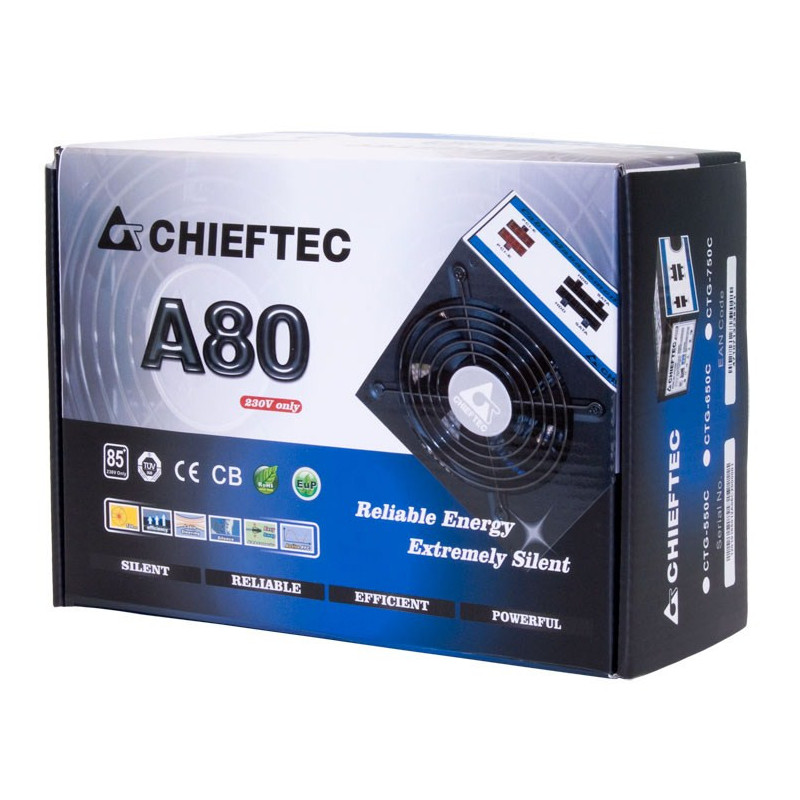

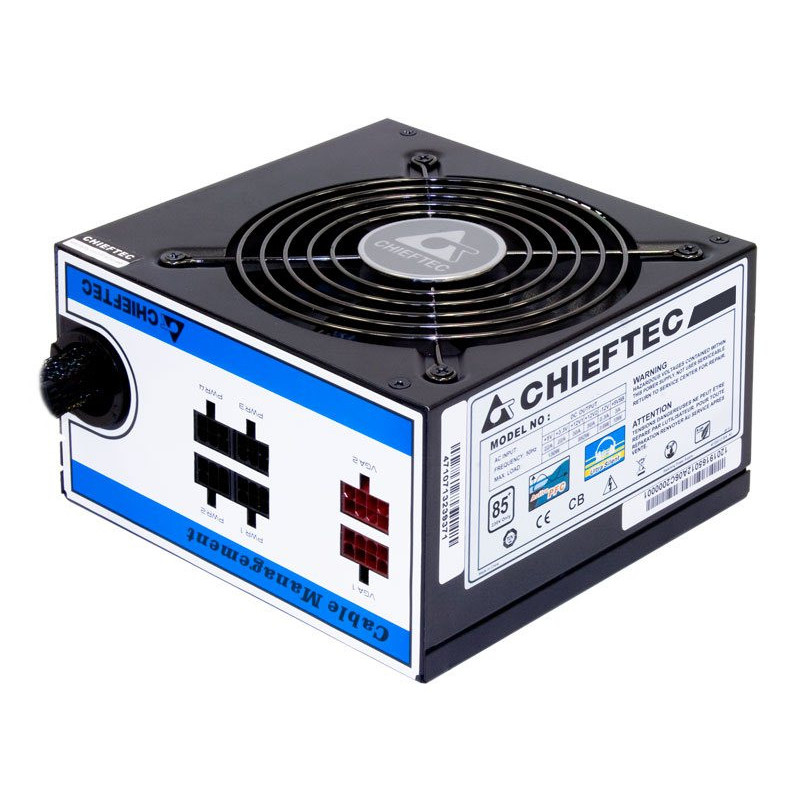

CHIEFTEC zdroj A80 Series, CTG-750C, 750W, 12cm fan, Active PFC, Modular, Retail, 85+
- Sdílet na facebook
- Dotaz na produkt
- favorite_border Přidat do oblíbených favorite Odebrat z oblíbených
Formát zdroje:ATX; Výkon zdroje (ve W):750; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž
Podrobnosti
http://www.chieftec.eu/en/psus/a-80-series/ctg-750c.html
Performance:
|
AC Input:
|
230V / 6A
|
|
Frequency:
|
50 Hz
|
|
+5V:
|
22A
|
|
+3,3V:
|
22A
|
|
+5V & +3,3V combined:
|
130W
|
|
+12V 1:
|
35A
|
|
+12V 2:
|
35A
|
|
+12V 1 & +12V 2 combined:
|
648W
|
|
+12V 3:
|
N/A
|
|
+12V 4:
|
N/A
|
|
+12V 3 & +12V 4 combined:
|
N/A
|
|
P.F.:
|
>0,9
|
|
-12V:
|
0,3A / 3,6W
|
|
+5VSB:
|
3,0A / 15W
|
|
Maximum Load:
|
750W
|
Connectors:
|
Native cable:
|
|
|
24PIN:
|
|
|
===450mm===[24PIN]
|
|
|
8PIN EPS / 4PIN 12V:
|
|
|
===550mm===[8PIN EPS]===150mm===[4PIN 12V]
|
|
|
Modular cable:
|
|
|
SATA:
|
|
|
===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]
|
|
|
SATA:
|
|
|
===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]
|
|
|
Molex / Floppy:
|
|
|
===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
|
|
|
Molex / Floppy:
|
|
|
===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]
|
|
|
8PIN PCIe (6+2):
|
|
|
===450mm===[PCIe]
|
|
|
8PIN PCIe (6+2):
|
|
|
===450mm===[PCIe]
|
Features:
|
Specification:
|
ATX 12V 2.3
|
|
Form factor:
|
PS II
|
|
Efficiency:
|
>85%
|
|
Dimension (DxWxH):
|
140 mm x 150 mm x 87 mm
|
|
PFC:
|
Active PFC (0,9)
|
|
Fan:
|
120mm silent fan
|
|
Security:
|
UVP (Undervoltage protection)
|
|
OVP (Overvoltage protection)
|
|
|
SCP (Short-circuit protection)
|
|
|
OPP (Overload protection)
|
|
|
AFC (Automatic Fanspeed Control)
|
|
|
MTBF (mean time between failure): >50.000h
|
|
|
Certificates:
|
85+ only 230V
|
