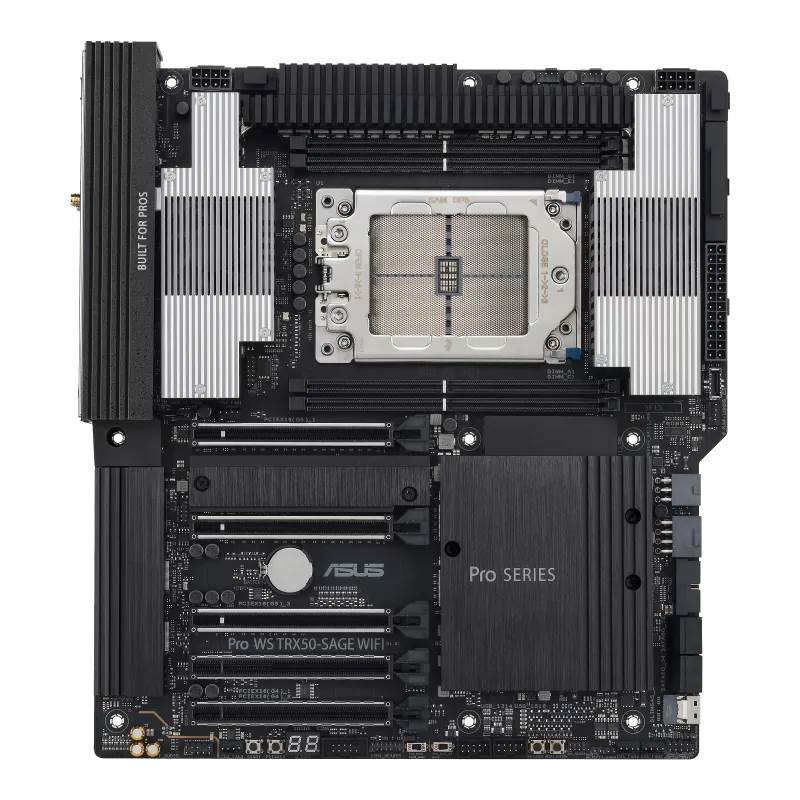

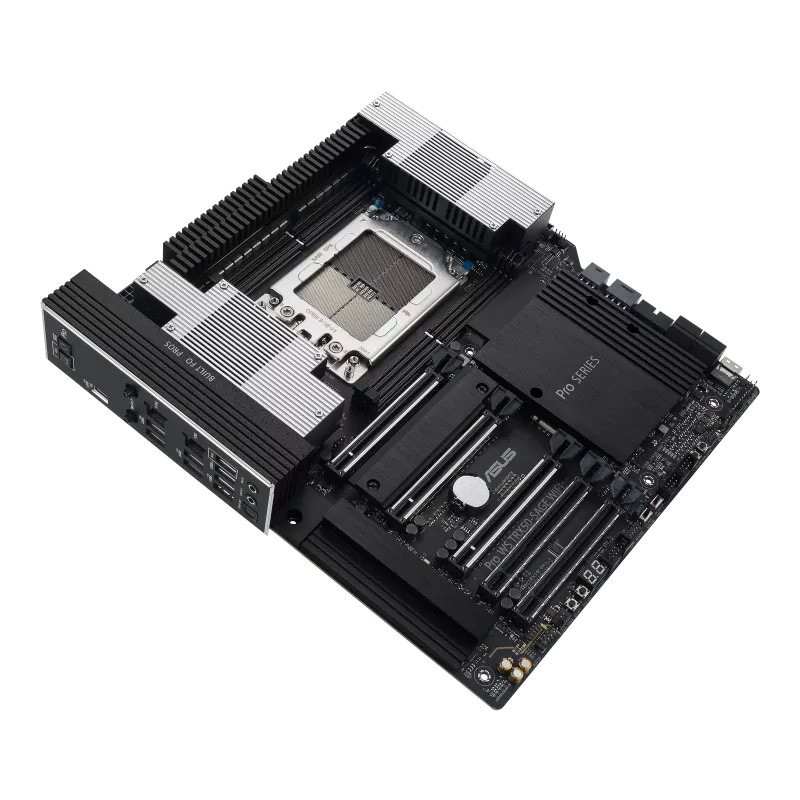

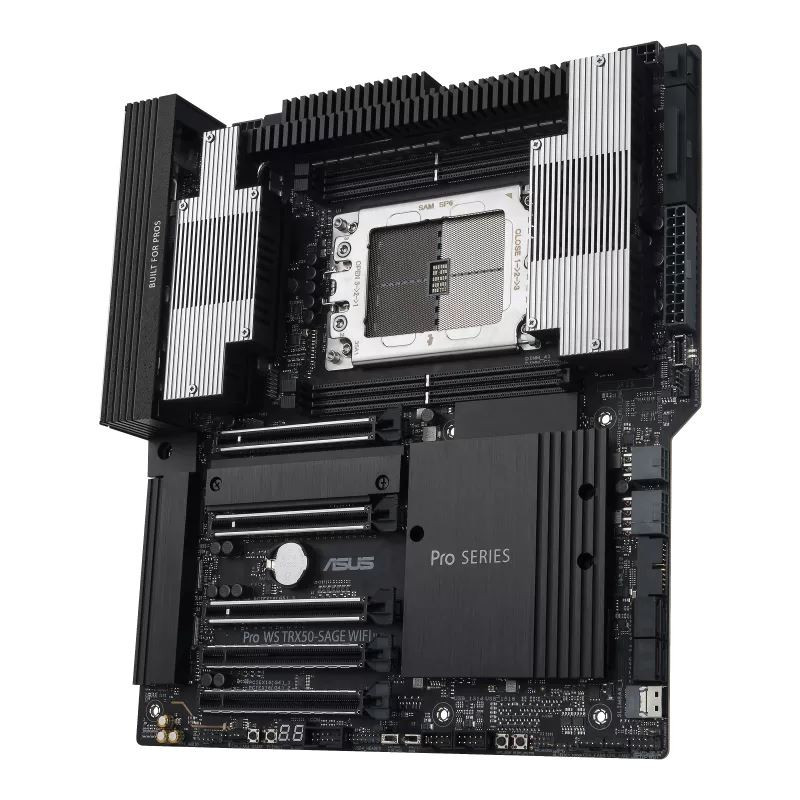

Asus PRO WS TRX50-SAGE WIFI 90MB1FZ0-M0EAY0

CPU

AMD Socket sTR5 for RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors *
* Refer to www.asus.com for CPU support list.

Chipset

AMD TRX50 Chipset

Memory

4 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Expansion Slots

AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)

Storage

Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports
AMD RYZEN™ Threadripper™ PRO 7000 WX-Series and RYZEN™ Threadripper™ 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

LAN

1 x Marvell AQtion 10Gb Ethernet
1 x Intel I226-LM 2.5Gb Ethernet

WiFi & Bluetooth

---Místo pro Wifi a BT---

USB

Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

"Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

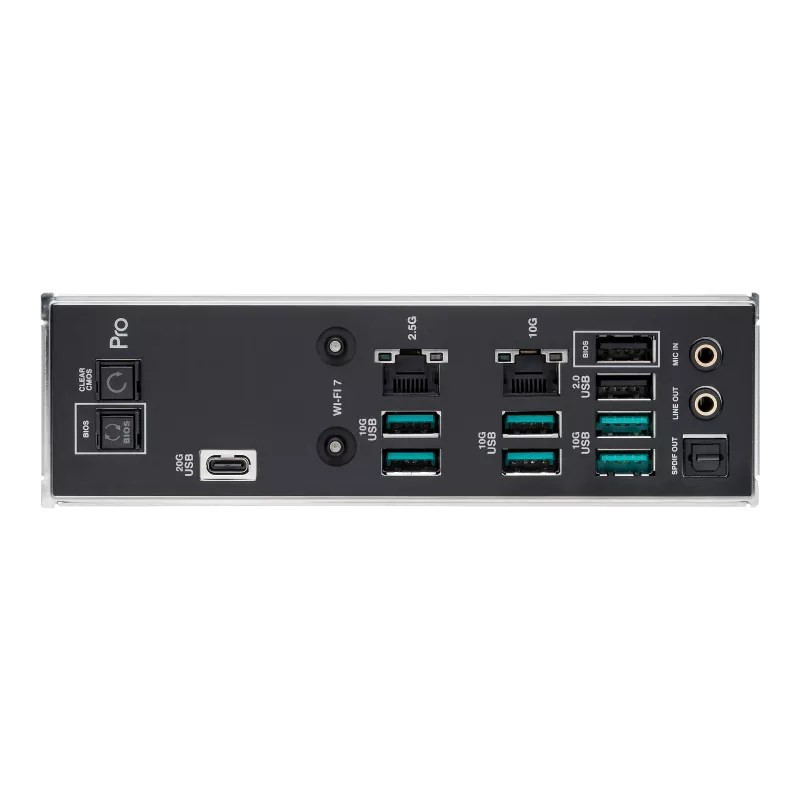

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button

Internal I/O Ports

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x BMC header
1 x COM Port header
1 x USB4 header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header

Special Features

ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection

Software Features

ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE (UEFI mode)

Accessories

Cables
2 x SATA 6Gb/s cables
1 x CPU 8-pin to PCIe 8-pin adapter cable package
1 x Thermistor cable pack
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package(2 in 1)
2 x M.2 Rubber Packages
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x QSG

Operating System

"Windows 11
Windows 10 64-bit "

Form Factor

CEB Form Factor
12 inch x 11 inch (30.5 cm x 28.0 cm)
