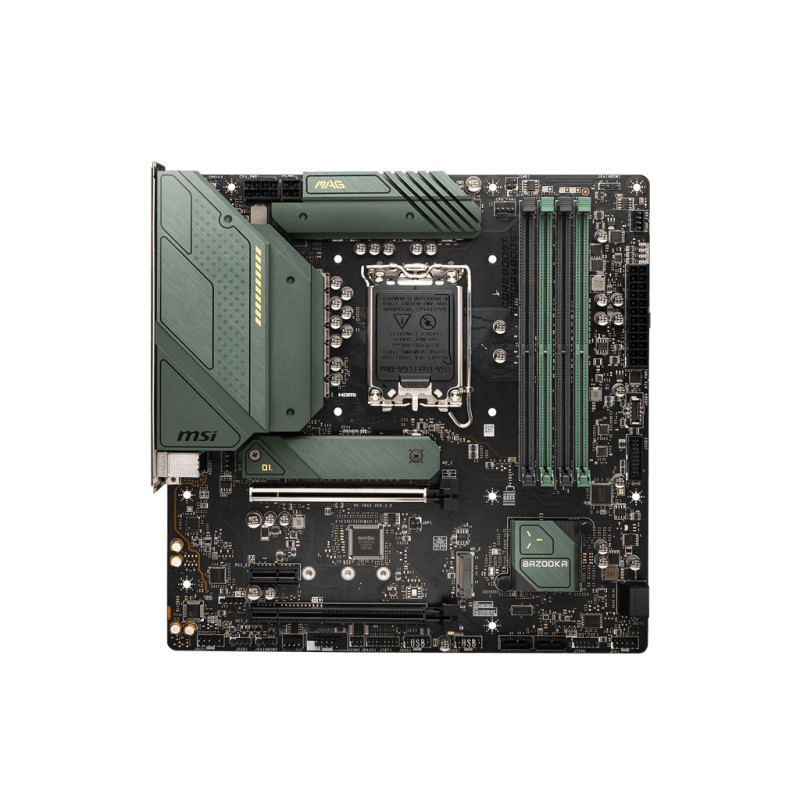

MSI MAG B660M BAZOOKA DDR4

Chipset: Intel B660 Chipset Rozměrový formát: Micro-ATX Form Factor (24.4 cm x 24.4 cm) Podpora pro procesory: 12th Gen Intel Core Processors Patice procesoru: LGA1700 Pozice na paměti: 4x DDR4 memory slots, Dual-Channel mode Podpora pro paměti: 1R 2133/ 2666/ 3200 MHz Max.velikost operační paměti: 128 GB Podpora pro paměti typu: non-ECC, XMP Grafická karta: (na základě procesoru) *1x HDMI 2.1 with HDR port, maximální rozlišení 4K 60Hz *1x DisplayPort 1.4 port with HBR3, maximální rozlišení 4K 60Hz Zvuková karta: Realtek ALC897 Codec *7.1-Channel High Definition Audio Síťová karta: 1x Realtek 8125BG 2.5Gbps LAN controller Rozšiřující sloty: *2x PCIe x16 slots *1x PCIe 3.0 x1 slot RAID řadič: RAID 0, RAID 1 , RAID 5 and RAID 10 SATA: 4x SATA 6Gb/s connectors M.2: 2x M.2 slots (M-Key) USB: *Interní: *1x USB 3.2 Gen 1 5Gbps Type-C port *1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *Externí: *2x USB 2.0 *2x USB 3.2 Gen 1 5Gbps Type-A *2x USB 3.2 Gen 2 10Gbps Type-A Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x 4-pin ATX 12V power connector *4x SATA 6Gb/s connectors *2x M.2 slots (M-Key) *1x USB 3.2 Gen 1 5Gbps Type-C port *1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin water-pump fan connector *2x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Chassis Intrusion connector *1x TPM module connector *1x Clear CMOS jumper *1x TBT connector (supports RTD3) *1x Serial port *1x Tuning Controller connector Externí porty: *2x USB 2.0 *2x USB 3.2 Gen 1 5Gbps Type-A *2x USB 3.2 Gen 2 10Gbps Type-A *1x DisplayPort *1x HDMI *1x 2.5G LAN *Keyboard / Mouse *Audio Connectors BIOS: AMI BIOS, 7D43vH1 Stránka výrobce: http://www.msi.com/Motherboard/MAG-B660M-BAZOOKA-DDR4/Overview
