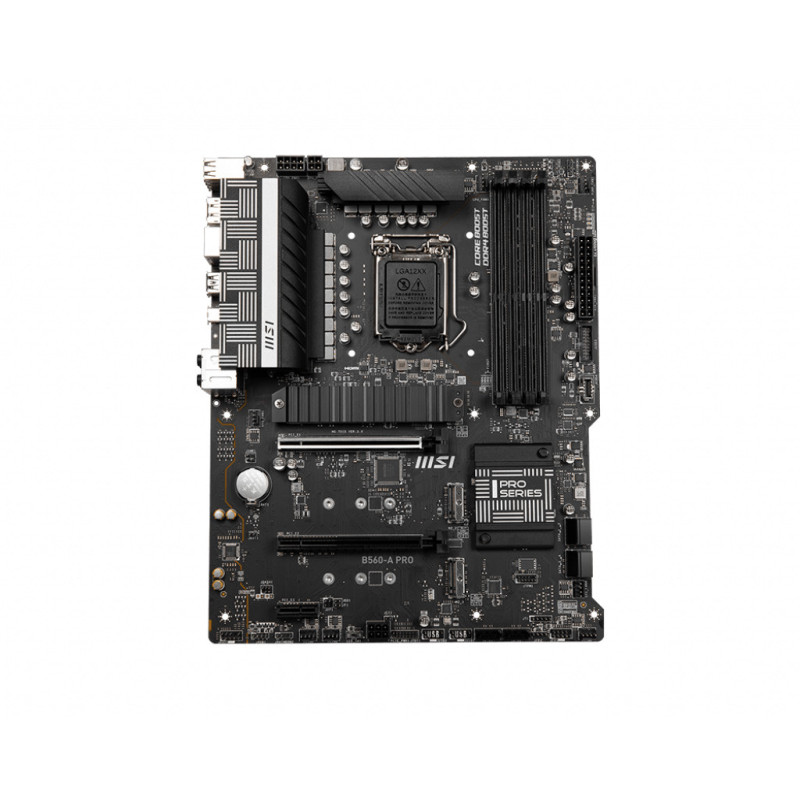

MSI B560-A PRO

Chipset: Intel B560 Chipset Rozměrový formát: ATX Form Factor (30.5 cm x 24.4 cm) Podpora pro procesory: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Patice procesoru: LGA1200 Pozice na paměti: 4x DDR4 memory slots, Dual-Channel mode Podpora pro paměti: *Podpora 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU *Podpora 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU Max.velikost operační paměti: 128 GB Podpora pro paměti typu: XMP, non-ECC Grafická karta: (na základě procesoru) *1x HDMI 2.0b with HDR port, maximální rozlišení 4K 60Hz *1x DisplayPort 1.4 port, maximální rozlišení 4K 60Hz Zvuková karta: Realtek ALC897 Codec *7.1-Channel High Definition Audio Síťová karta: 1x Realtek RTL8125B 2.5Gbps LAN controller Rozšiřující sloty: *2x PCIe x16 slots *1x PCIe 3.0 x1 slot SATA: 6x SATA 6Gb/s connectors M.2: 3x M.2 slots (M-Key) USB: *Interní: *1x USB 3.2 Gen 2 10Gbps Type-C port *1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *Externí: *4x USB 2.0 *1x USB 3.2 Gen 2x2 20Gbps Type-C *4x USB 3.2 Gen 1 5Gbps Type-A Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x 4-pin ATX 12V power connector *1x 6-pin PCIE power connector *6x SATA 6Gb/s connectors *3x M.2 slots (M-Key) *1x USB 3.2 Gen 2 10Gbps Type-C port *1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin water-pump fan connector *5x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Chassis Intrusion connector *1x Clear CMOS jumper *1x TPM module connector *1x TBT connector (Supports RTD3) *1x Tuning controller connector Externí porty: *4x USB 2.0 *1x USB 3.2 Gen 2x2 20Gbps Type-C *4x USB 3.2 Gen 1 5Gbps Type-A *1x HDMI *1x DisplayPort *1x LAN port *1x Optical S/PDIF OUT *Audio connector BIOS: AMI BIOS, 7D15vH2 Stránka výrobce: http://www.msi.com/Motherboard/B560-A-PRO/Overview
