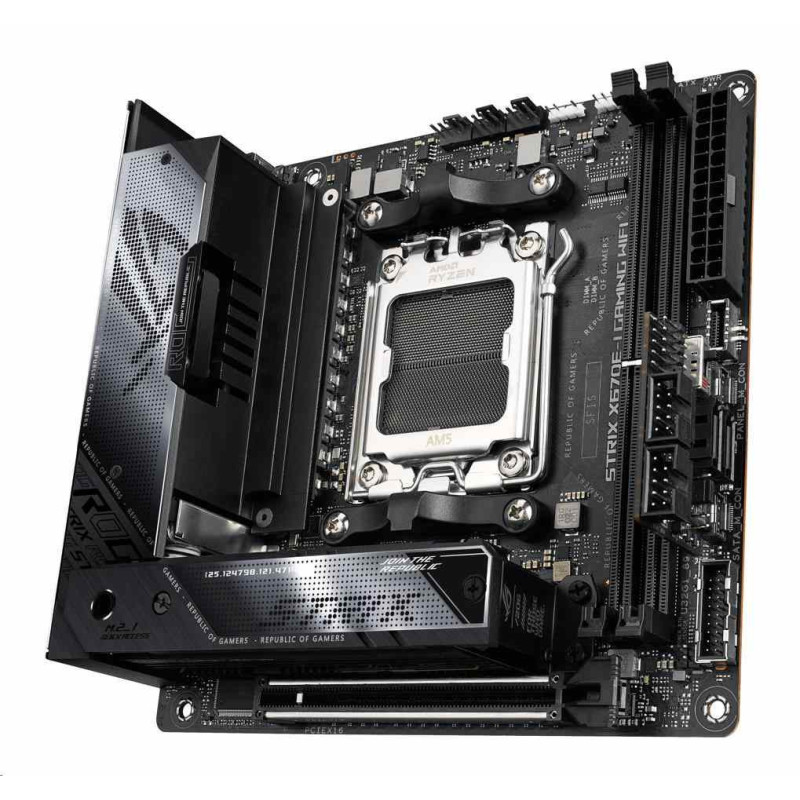

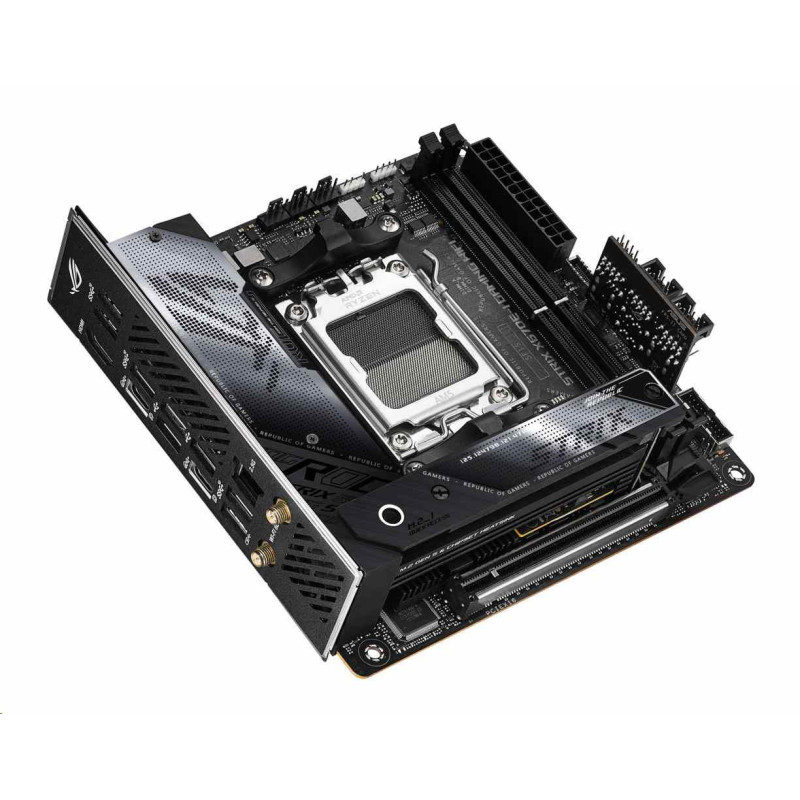

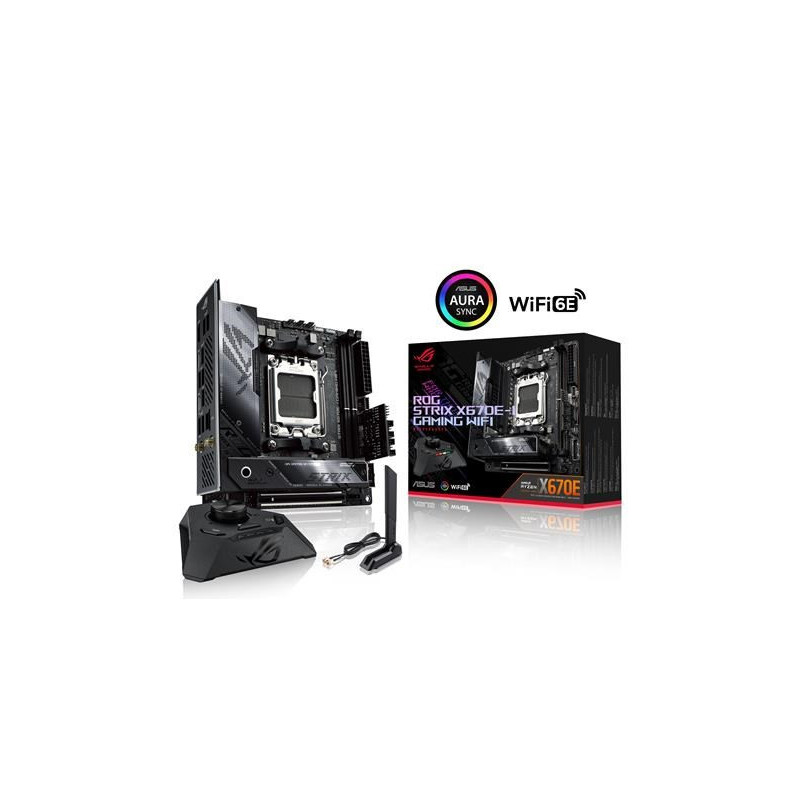

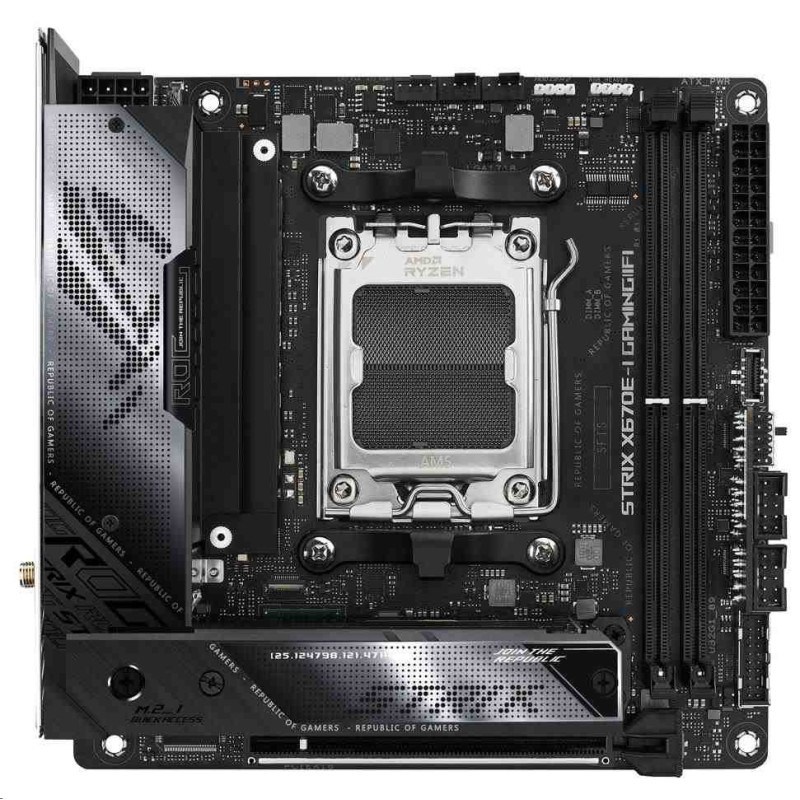

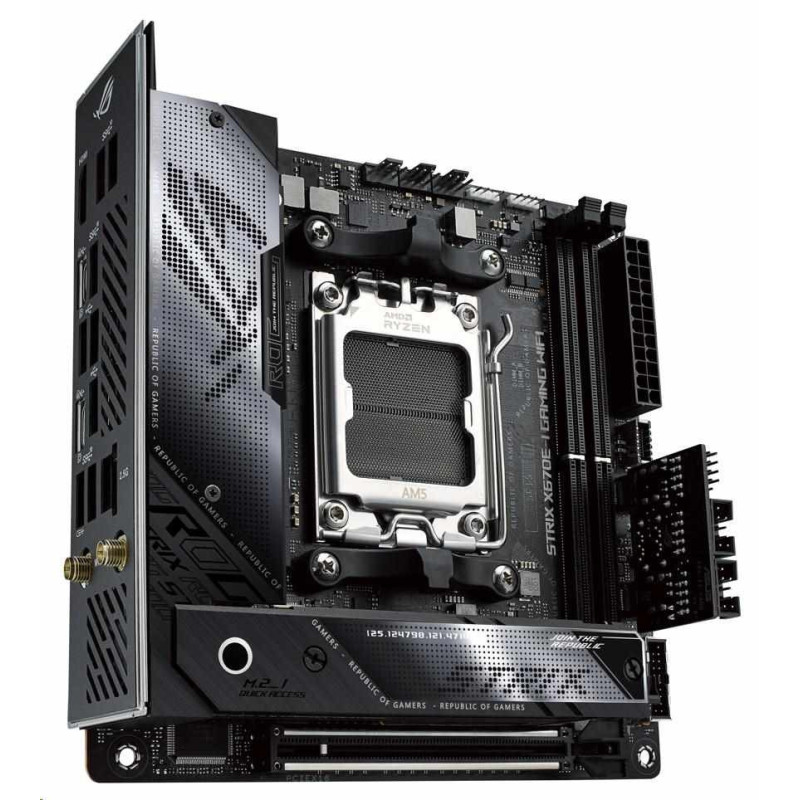

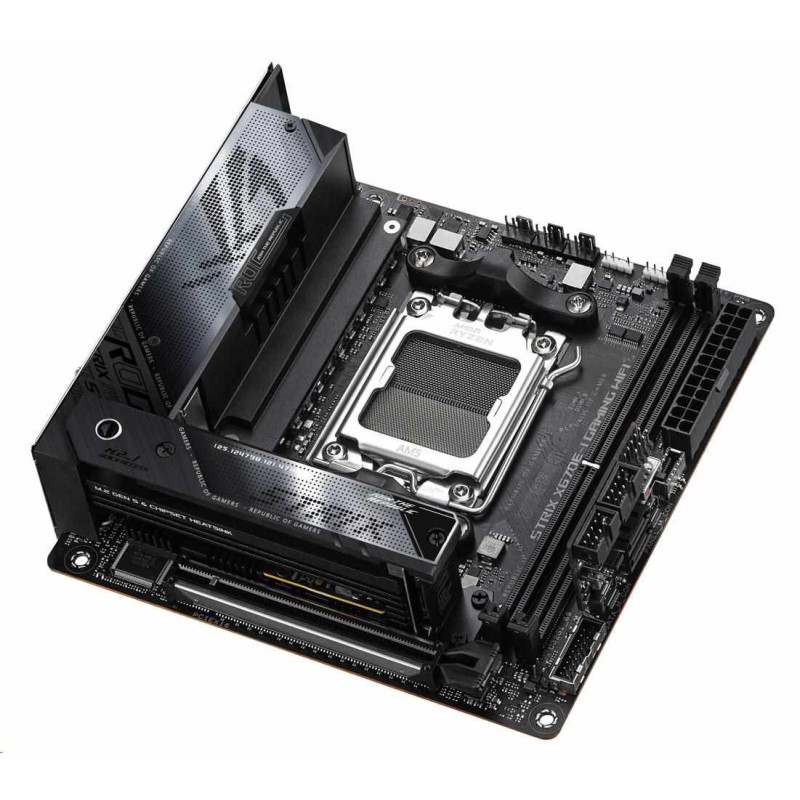

Asus ROG Strix X670E-I GAMING WiFi 90MB1B70-M0EAY0
Pro procesory:AMD; Socket (patice):Socket AM5; Chipset:AMD X670E; Počet paměťových slotů:2; Technologie paměti RAM:DDR5; Formát základní desky:Mini-ITX; PCI Express x16:1; SATA 3:2; M.2 slot:2; 3.5mm Jack; HDMI:1; Bezdrátové připojení:WiFi + Bluetooth
Podrobnosti
ROG STRIX X670E-I GAMING WIFI
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. | |
| Chipset | AMD X670 |
| Memory | 2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Graphics | 1 x HDMI port* |
| 2 x USB4 ports support USB Type-C display outputs** | |
| *Supports 4K@60Hz as specified in HDMI 2.1. | |
| ** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slot(s) | |
| Storage | Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) | |
| AMD X670 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 2 x SATA 6Gb/s ports**** | |
| *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1 and SATA RAID 0/1. | |
| **** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth v5.2 | |
| * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | |
| USB | Rear USB (Total 10 ports) |
| 2 x USB4 port(s) with Intel JHL8540 USB4 controller (2 x USB Type-C) | |
| 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) | |
| 3 x USB 2.0 port(s) (3 x Type-A) | |
| Front USB (Total 3 ports) | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports | |
| ROG STRIX HIVE (Total 2 ports) | |
| 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C) | |
| 1 x USB 2.0 port(s) (1 x Type-A) | |
| ROG FPS-II C (Total 3 ports) | |
| 2 x USB 2.0 header(s) additional 3 USB 2.0 ports** | |
| Audio | ROG High Definition Audio CODEC ALC4050 |
| - Supports: Jack-detection | |
| - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| - ROG Hyper-Grounding Technology | |
| - ESS SABRE9260Q DAC | |
| - Silver-plated audio jacks | |
| - Optical S/PDIF out port & USB Type-C port with indepent power solution | |
| - Dedicated audio PCB layers | |
| *All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE | |

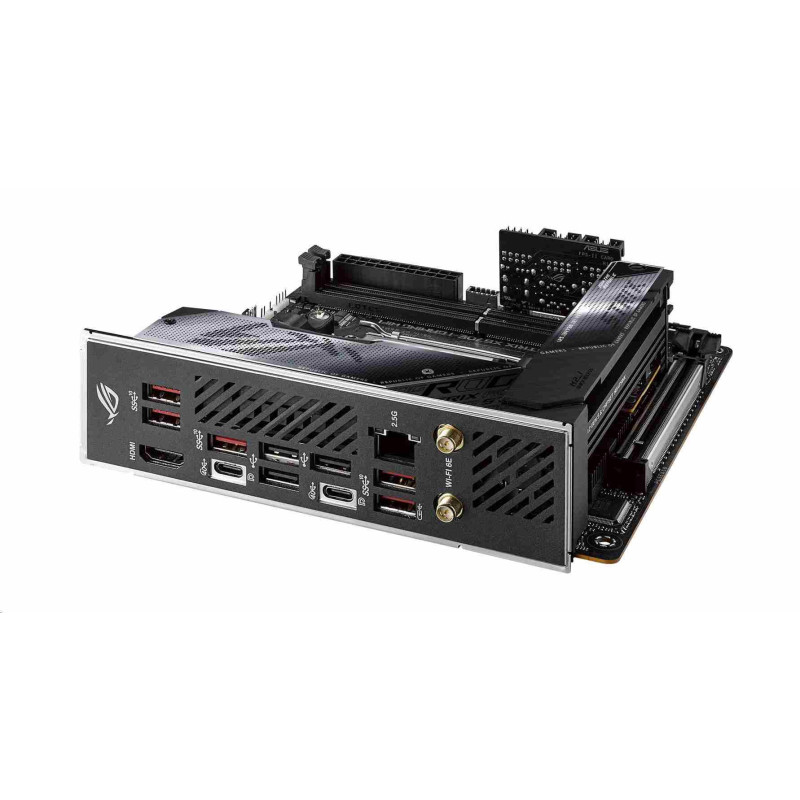

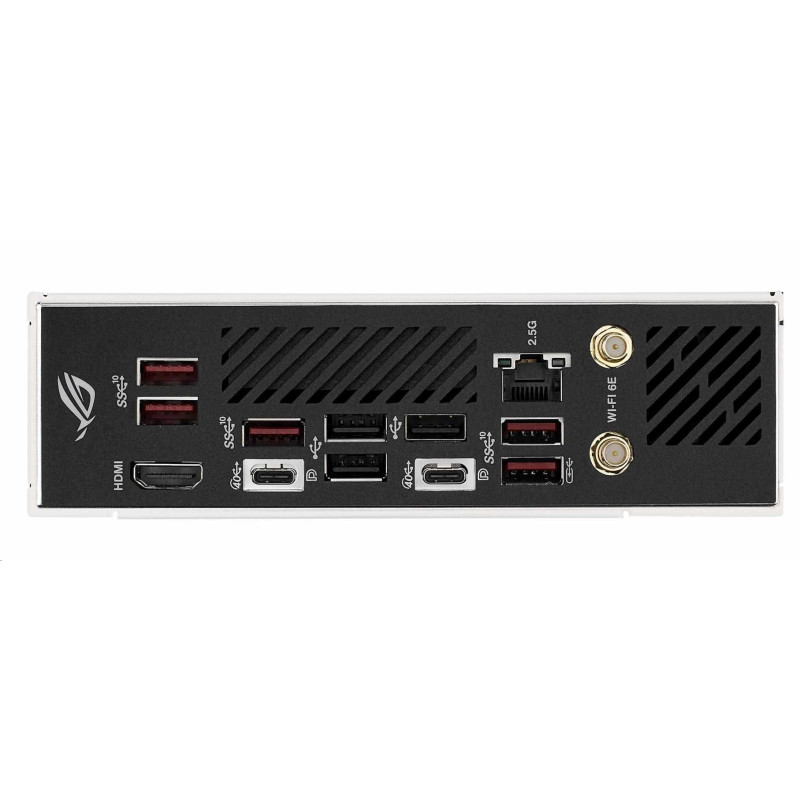

| Back Panel I/O Ports | 2 x USB4 port(s) with Intel JHL8540 USB4 controller (2 x USB Type-C) |
| 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE) | |
| 3 x USB 2.0 port(s) (3 x Type-A) | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Intel I225-V 2.5Gb Ethernet port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header(s) | |
| 1 x 4-pin AIO Pump header(s) | |
| 1 x 4-pin Chassis Fan header(s) | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| USB | |
| 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C ) | |
| Miscellaneous | |
| 1 x Addressable Gen 2 header(s) | |
| 1 x AURA RGB header(s) | |
| 1 x RTC Battery header | |
| 1 x Thermal Sensor header | |
| 1 x 2 pin Power_BTN header | |

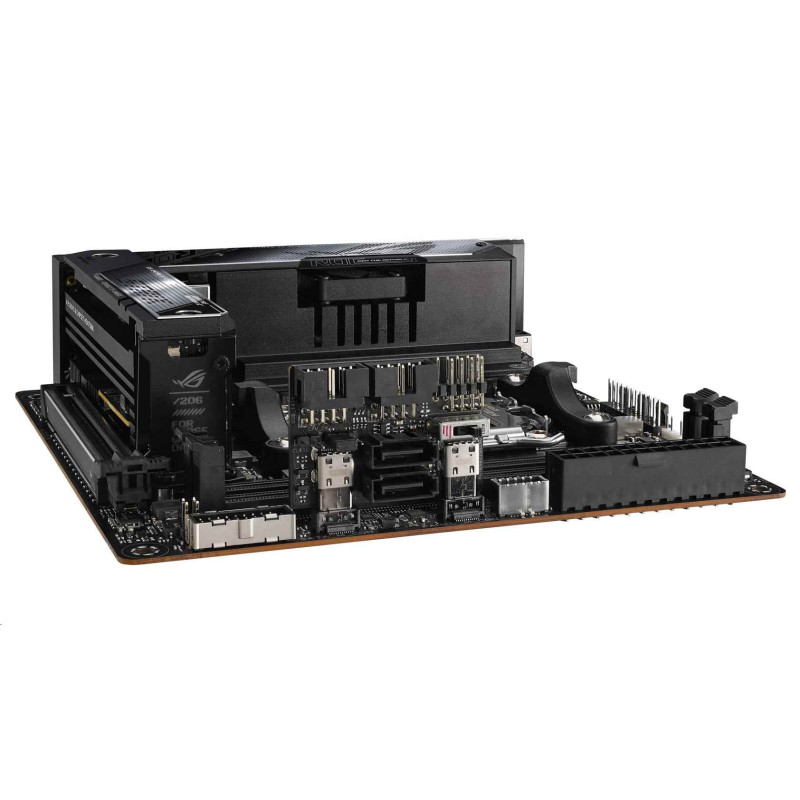

| 2 x USB Type-C connectors to Install ROG FPS-II card* | |

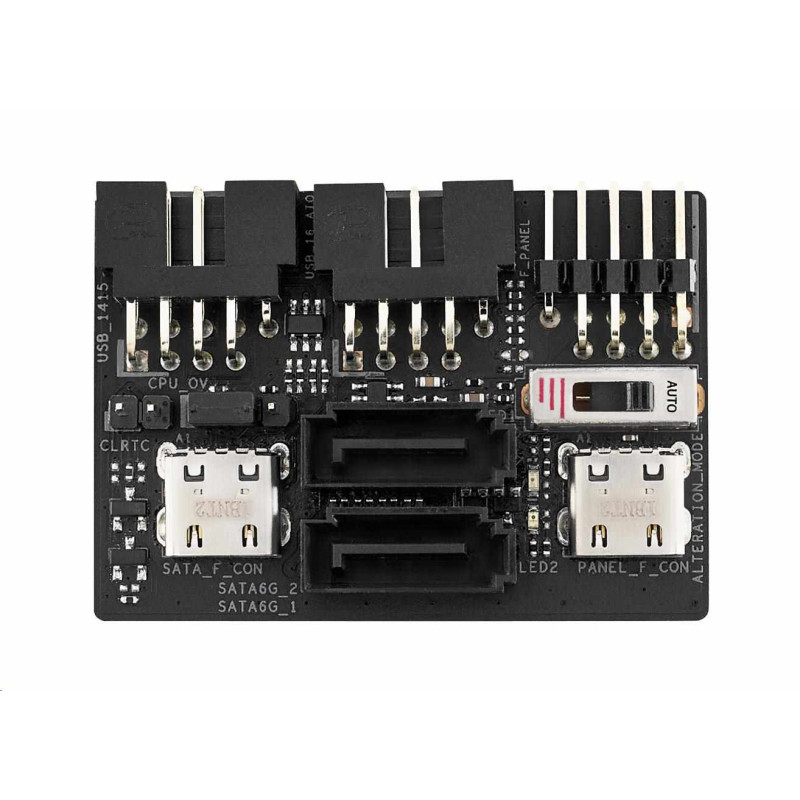

| ROG FPS-II card | |
| 2 x SATA 6Gb/s ports | |
| 1 x CPU Over Voltage jumper | |
| 1 x Clear CMOS header | |
| 1 x Front Panel header | |
| 1 x Alteration mode switch | |
| 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports | |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - Q-DIMM | |
| - Q-Slot | |
| ASUS Thermal Solution | |

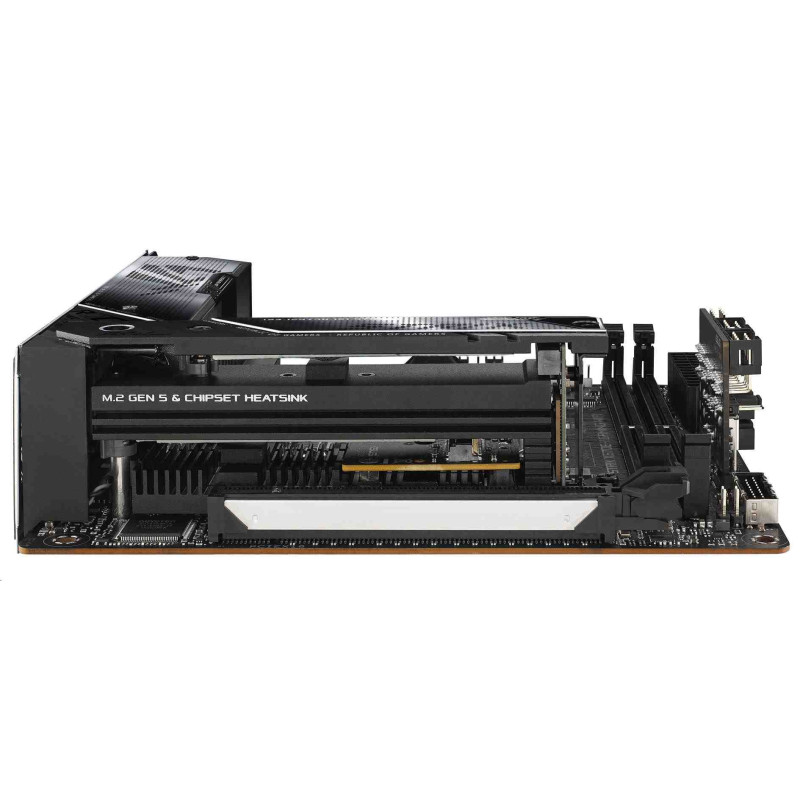

| - M.2 heatsink | |
| - Aluminum backplate | |
| - M.2 Chipset Fan | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBack™ button | |
| - BIOS FlashBack™ LED | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| AURA Sync | |
| - AURA RGB header(s) | |
| - Addressable Gen 2 header(s) | |

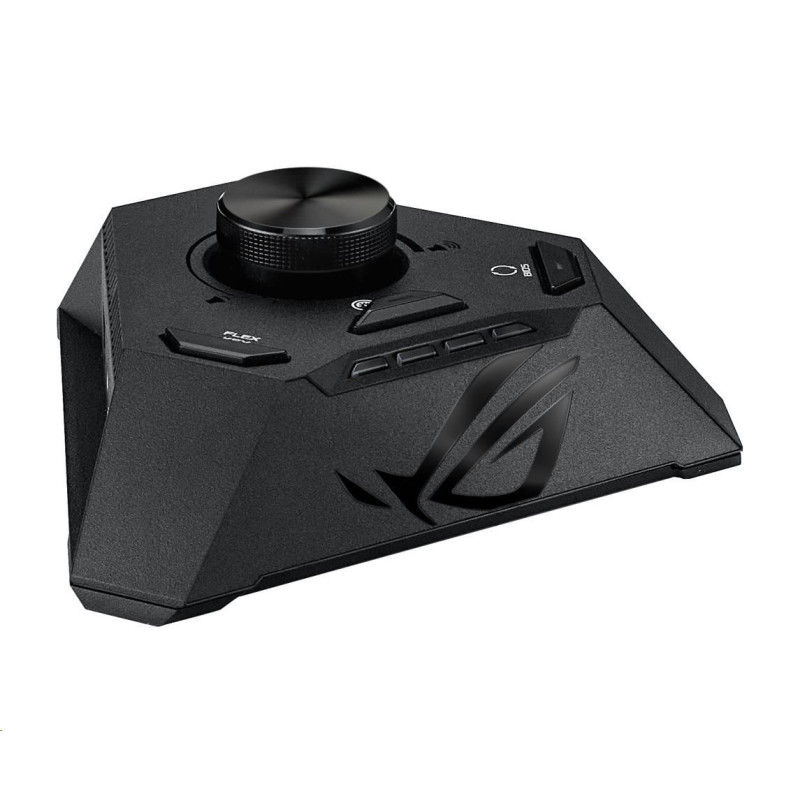

| ROG STRIX HIVE | |
| 1 x USB Type-C connects to Motherboard | |
| 1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C) | |
| 1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack™) | |
| 1 x Headphone jack with Mic in | |
| 1 x Mic in jack with Optical S/PDIF out | |
| 1 x EZ mode PBO button | |
| 1 x FlexKey button | |
| 1 x BIOS FlashBack™ button | |
| 1 x Volume Control Knob with Mute Button | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Software Features | ROG Exclusive Software |
| - GameFirst VI | |
| - ROG CPU-Z | |
| - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTS Sound Unbound | |
| - Anti-virus software | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (60 days free trial) | |
| - AURA Creator | |
| - AURA Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| - TPU | |
| - DIGI+ VRM | |
| - Turbo app | |
| - PC Cleaner | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| Dynamic OC Switcher | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

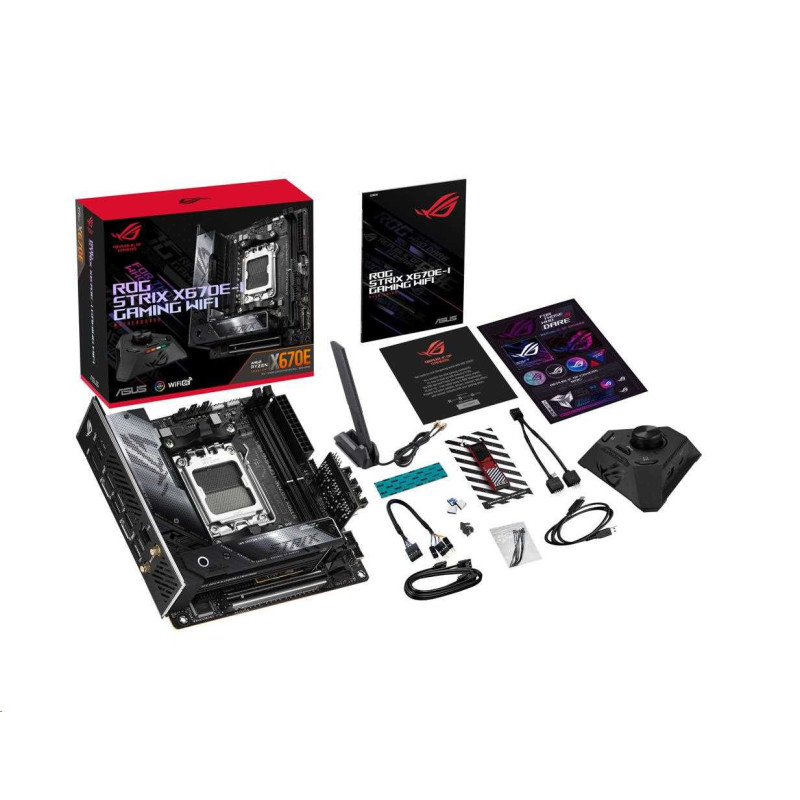

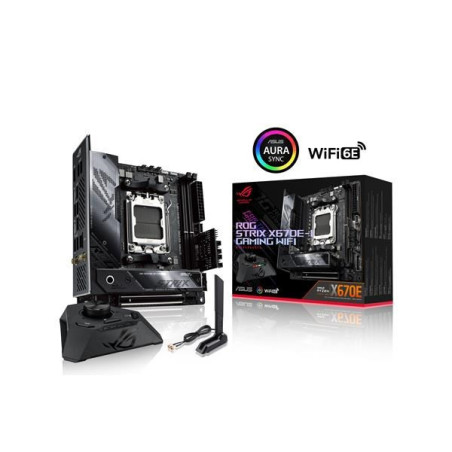

| Cables | |
| 2 x SATA 6Gb/s cables | |
| 1 x ROG USB2.0 splitter cable | |
| 1 x Panel Cable | |
| ROG FPS-II Card | |
| 1 x ROG FPS-II Card | |
| ROG STRIX HIVE | |
| 1 x ROG STRIX HIVE | |
| 1 x USB Type-C power connection cable | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Cable ties pack | |
| 1 x Rubber Package(s) for M.2 | |
| 1 x Q-Latch package(s) for M.2 | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 1 x ROG Strix thank you card | |
| Installation Media | |
| 1 x User guide | |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | Mini-ITX Form Factor |
| 6.7 inch x 6.7 inch( 17cm x 17cm) |
Parametry
- Formát základní desky
- Mini ITX
- CPU Socket
- AM5
- Technologie RAM
- DDR5
- Čipset desky
- AMD X670
