Asus J1900I-C 90MB0JH0-M0EAYM

Chipset:Intel; Technologie paměti RAM:SODIMM DDR3; Formát základní desky:Mini-ITX; Podpora RAID:1, 5, 10; PCI Express x16:1; 3.5mm Jack; COM port; Integrovaná grafická karta:Ano (CPU); Integrovaná LAN karta:1; Další rozhraní:COM port
není skladem

PN: 90MB0JH0-M0EAYM
SKU: 70251779
EAN: 4716659734703
Značka: Asus
Záruka: 36 Měsíc(ů)
Záruka na IČ: 36 Měsíc(ů)

Značka:
Cena s DPH:
2 060,00 Kč
Cena bez DPH:
1 702,48 Kč
Doba dodání:
na vyžádání

Podrobnosti

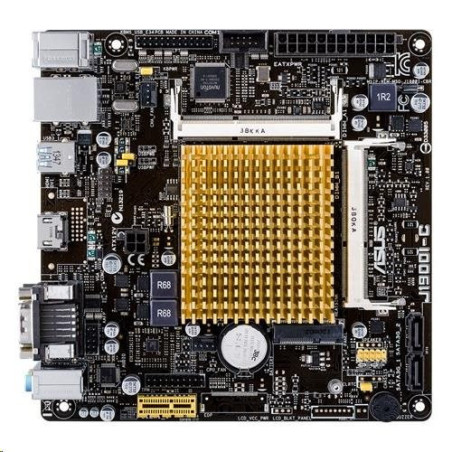

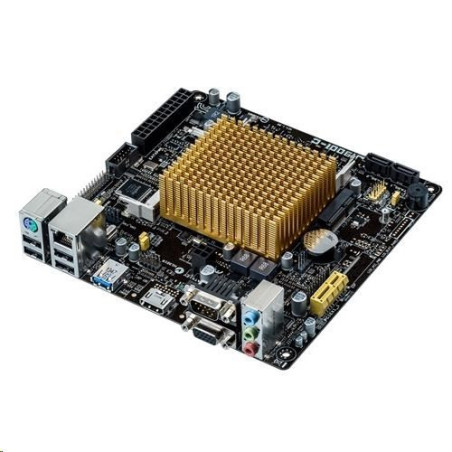

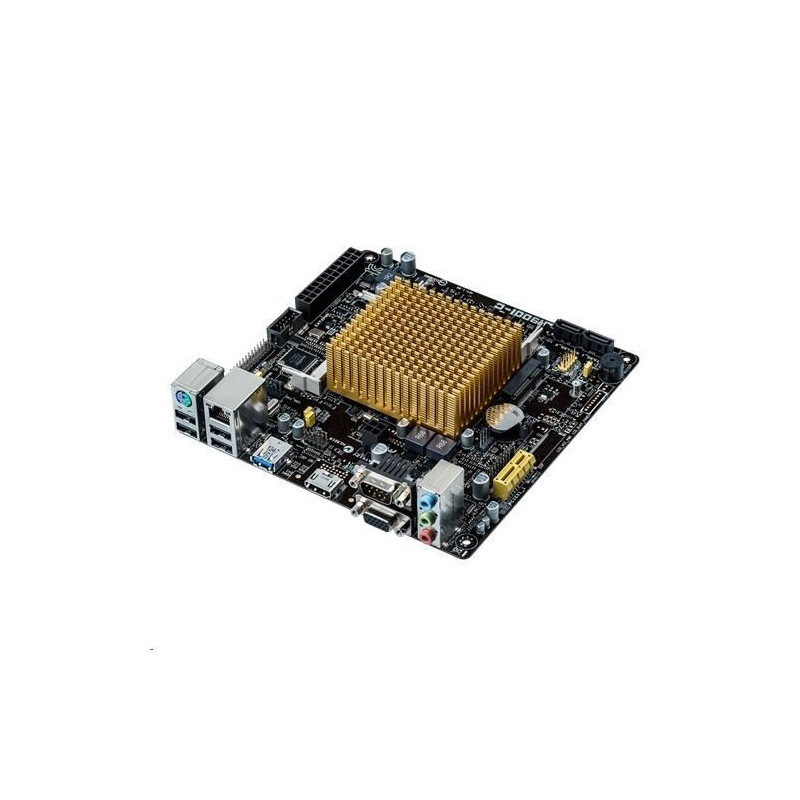

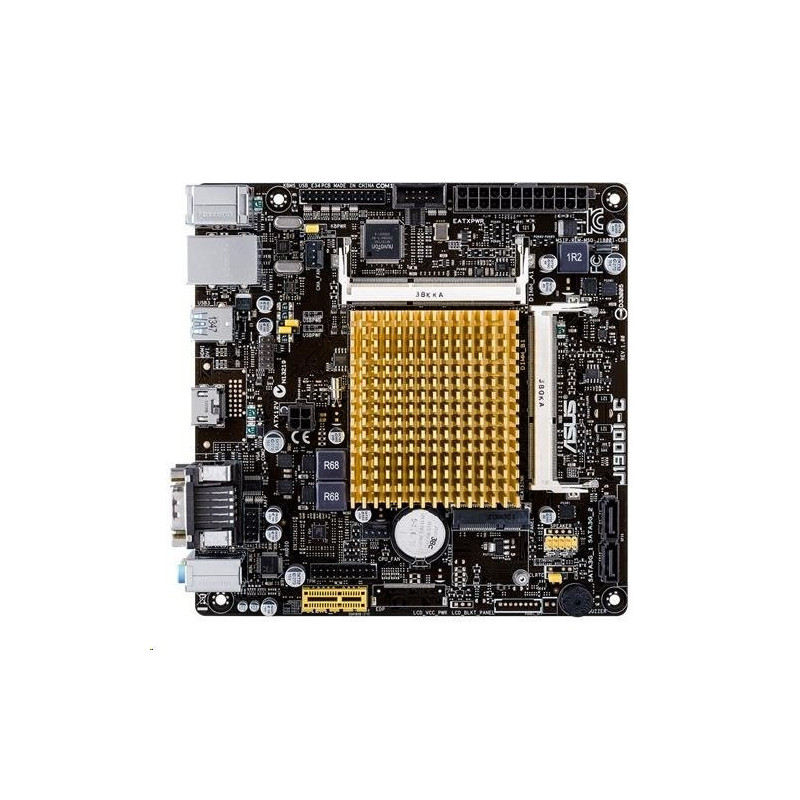

J1900I-C

Compact and great value Intel Celeron J1900 SoC CPU board with HDMI and USB 3.0

  • New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
  • USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
  • Network iControl: Real-time network bandwidth management
  • CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
  • AI Suite 3: One-stop access to innovative ASUS features

TECHNICAL SPECIFICATIONS

CPU Intel Celeron quad-core J1900 Processors
Memory 2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
- Supports RGB with max. resolution 2560 x 1600 @ 60 Hz
Maximum shared memory of 512 MB
Supports DirectX 11
Expansion Slots 1 x PCIe 2.0 x1
1 x mini-PCIe *2
Storage Built-in Controller:
2 x SATA 3Gb/s port(s), dark brown
Supports Intel Smart Connect Technology
LAN Realtek RTL8111G, 1 x Gigabit LAN Controller(s)
Audio Realtek ALC887-VD 8-Channel High Definition Audio CODEC *1
- Supports: Jack-detection, Front Panel Jack-retasking
USB Ports Built-in Controller:
1 x USB 3.1 Gen 1 port(s) (1 at back panel, blue)
Built-in Controller:
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
Software Features ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
ASUS Quiet Thermal Solution:
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Operating System Support Windows 8.1
Windows 8
Windows 7
Please update your BIOS and drivers to the latest version to support Windows 7

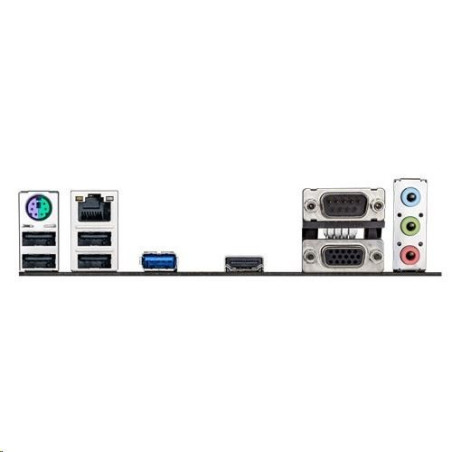

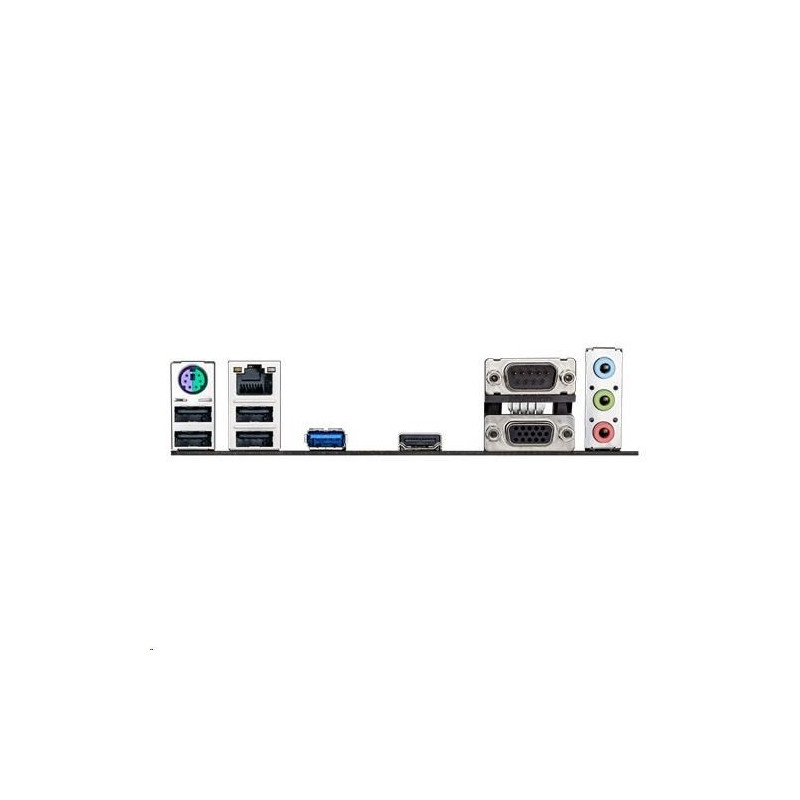

Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 1
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)
Internal I/O Ports 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x TPM header
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Buzzer
Accessories User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Form Factor Mini ITX Form Factor
6.7 x 6.7 inch (17 x 17 cm)
Note *1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2:This socket does not support USB Bluetooth signals.
(The PCI Express x1 slots conform to PCI Express 2.0 standard)
*3:Please update your BIOS and drivers to the latest version to support Windows 7.

Parametry

Formát základní desky
Mini ITX
CPU Socket
Intel Celeron
Technologie RAM
DDR3
Čipset desky
Intel Celeron
