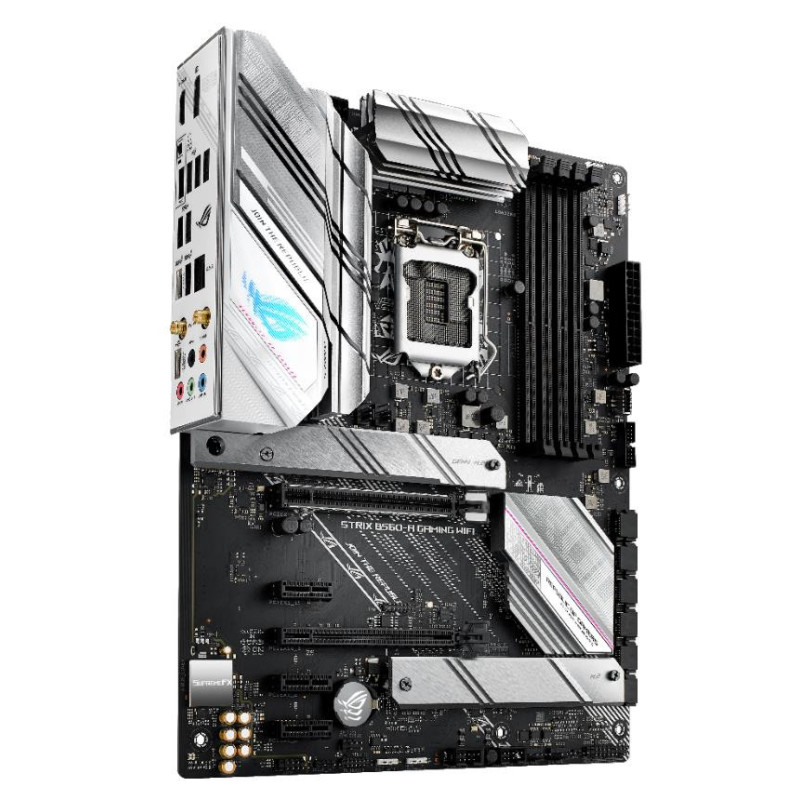

ASUS MB Sc LGA1200 ROG STRIX B560-A GAMING WIFI, Intel B560, 4xDDR4, 1xDP, 1xHDMI, WI-FI

ROG STRIX B560-A GAMING WIFI

Intel B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Realtek 2.5 Gb Ethernet, two M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C, SATA and Aura Sync RGB lighting

• Intel LGA 1200 socket: Ready for 11th Gen Intel Core™, 10th Gen Intel Core, Pentium Gold and Celeron processors
• Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• Smooth Networking: On-board Intel WiFi 6 AX201 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
• Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III
• Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard

CPU

Intel Socket LGA1200 for 11th Gen Intel Core™ Processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors

Chipset

Intel B560 Chipset

Memory

Memory Channels: 4DDR4 (Dual channel)
Max Memory Size: 128GB

Graphics

1 x DisplayPort 1.4
1 x HDMI 2.0

Expansion Slots

1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)

Storage

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Ethernet

1 x Realtek 2.5Gb Ethernet

USB

Rear USB: Total 9 ports
Front USB: Total 7 ports

Audio

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Internal I/O Connectors

1 x TB Header (for add-on TB card)

Operating System

Windows10 64-bit

Form Factor

ATX
30.5cm x 24.4cm
