ASUS MB Sc LGA1200 ROG STRIX Z590-I GAMING WIFI, Intel Z590, 2xDDR4, 1xHDMI, WI-FI, ITX

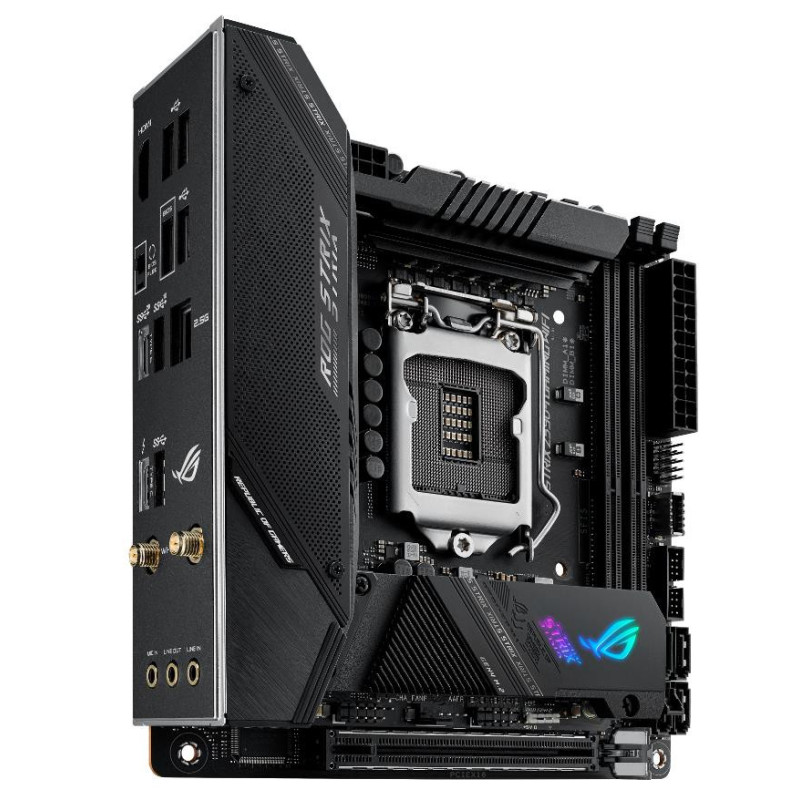

ROG STRIX Z590-I GAMING WIFI

Intel Z590 LGA 1200 ITX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, two M.2 slots with heatsinks, Thunderbolt™ 4 USB Type-C, USB 3.2 Gen 2x2 USB Type-C, SATA and Aura Sync RGB lighting

• Ready for 11th Gen Intel Core™ processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors
• Optimal Power Solution: 8+2 power stages with ProCool II power connector, high-quality ferrite chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: VRM and aluminum I/O heatsink with two skived fins, L-shaped heatpipe, two onboard M.2 heatsinks, including an M.2 backplate and a skived fin for the PCIe 4.0 M.2 slot
• High-performance Networking: On-board Intel WiFi 6E AX210 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI™ 2.0, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C
• Intelligent Control:? ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance
• DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™ and FlexKey
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and Gen 2 addressable header
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
• Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

CPU

Intel Socket LGA1200 for 11th Gen Intel Core™ Processors & 10th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z590 Chipset

Memory

Memory Channels: 2DDR4 (Dual Channel)
Max Memory Size: 64GB
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x HDMI 2.0**

Expansion Slots

Intel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)*
- Intel 11th Gen processors supports PCIe 4.0 x16 mode
- Intel 10th Gen processors supports PCIe 3.0 x16 mode
* Supports PCIe bandwidth bifurcation for RAID on CPU function.

Storage

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel Z590 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

Ethernet

1 x Intel 2.5Gb Ethernet

USB

Rear USB: Total 8 ports
1 x Thunderbolt™ 4 port(s) (1 x USB Type-C) with up to 5V/3A, 15W charging support
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB: Total 5 ports
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Audio

Audio Features
- Audio Shielding
- ALC4080 + Savitech SV3H712 AMP
- LED-illuminated audio jacks
- Premium Japanese audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Internal I/O Connectors

1 x Thunderbolt 4 (onboard)
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
Miscellaneous
1 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Special Features

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Skived Fin heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS HYDRANODE
- 1 x Chassis fan support* (CHA_FANP)
* Visit ASUS Website for the latest compatibility list.

Software Features

ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
Two-Way AI Noise Cancelation
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo app
- EZ update
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
MemTest86
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
4 x SATA 6Gb/s cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
2 x M.2 SSD screw package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual

Operating System

Windows10 64-bit

Form Factor

Mini ITX
17cm x 17cm
