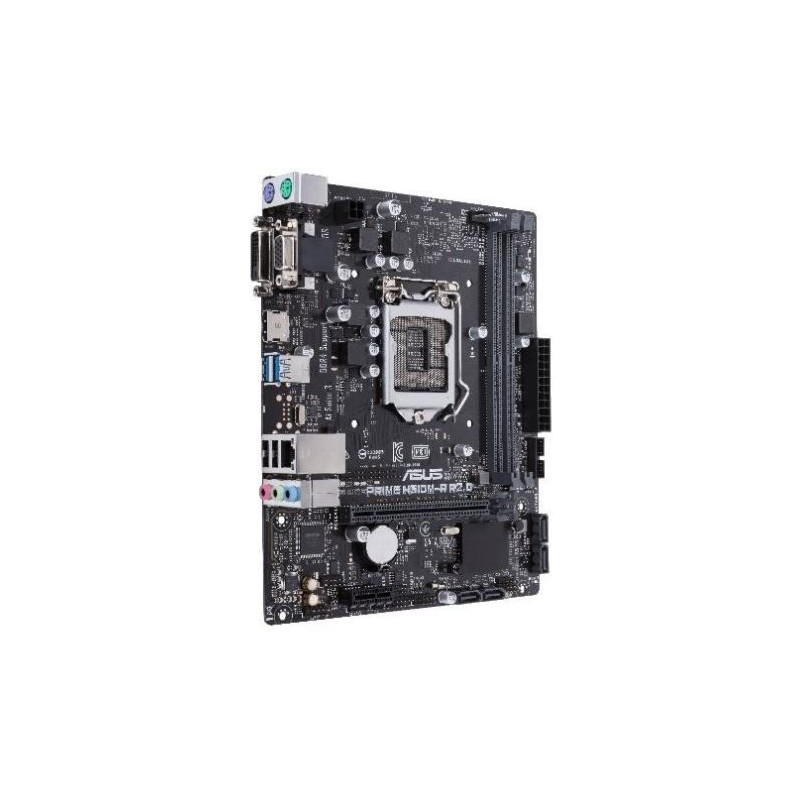

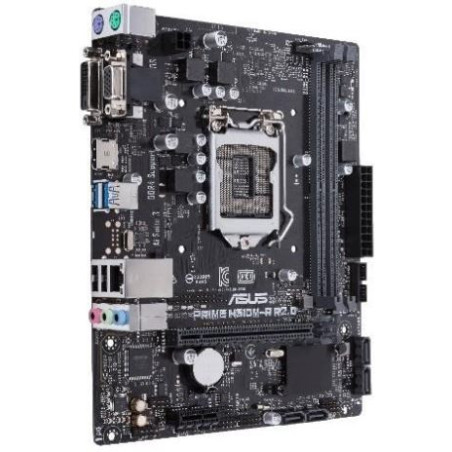

ASUS MB Sc LGA1151 PRIME H310M-R R2.0, Intel H310, 2xDDR4, VGA, mATX
- Sdílet na facebook
- Dotaz na produkt
- favorite_border Přidat do oblíbených favorite Odebrat z oblíbených
Socket (patice):Socket 1151; Formát:micro ATX; Integrovaná grafická karta:Ano (CPU); Chipset:Intel; Technologie paměti RAM:DDR4; Podpora RAID:Bez RAID podpory; PCI express 16x:1; Integrovaná LAN karta:1; Rozhraní:HDMI, VGA, USB 2.0, USB 3.1, 3.5mm Jack, LAN (RJ-45), DVI
Podrobnosti
PRIME H310M-R R2.0
TECHNICAL SPECIFICATIONS
| CPU | LGA1151 socket for the 8th Generation Intel Core™ i7/ i5/ i3/ Pentium / Celeron Processors Supports 14nm CPU Supports Intel Turbo Boost Technology 2.0* * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. ** Refer to www.asus.com for Intel CPU support list. |
| Chipset | Intel H310 Chipset |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors *** Refer to www.asus.com for the Memory QVL(Qualified Vendors List). |
| Expansion Slots | Slots 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode) 1 x PCI Express 2.0 x1 slot |
| VGA | Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DVI-D/D-Sub port - Supports HDMI with max. resolution 4096 x 2304 @24Hz - Supports DVI-D with max. resolution 1920 x 1200 @60Hz - Supports D-Sub with max. resolution 1920 x 1200 @60Hz Supports up to 2 displays simultaneously Maximum shared memory of 1024MB |
| Storage |
Intel H310 Chipset and Intel Rapid Storage Technology 16 suppot: |
| LAN | Realtek 8111H Gigabit LAN support LANGuard |
| Audio | Realtek ALC887 8-channel* High Definition Audio CODEC - Supports jack-detection and front panel jack-retasking * Use a chassis with HD audio module in the front panel to support a 8-channel audio output. |
| USB | Intel H310 Chipset - 4 x USB 3.1 Gen1 ports (2 ports @ mid-board, 2 ports @ back panel) - 6 x USB 2.0/1.1 ports (4 ports @ mid-board, 2 ports @ back panel) |
| ASUS Special Features | ASUS 5X PROTECTION II - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design Superb Performance ASUS EPU - EPU UEFI BIOS - Most advanced options with fast response time ASUS Exclusive Features - ASUS AI Charger - ASUS AI Suite 3 ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS EZ Flash Easy PC DIY Safe motherboard mounting - Component-free areas to minimize damage risk Q-Design - ASUS Q-Slot - ASUS Q-DIMM |
| Back Panel I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse port (green) 2 x USB 3.1 Gen1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DVI port 1 x D-Sub port 1 x LAN (RJ-45) port 3 x Audio jacks support 8-channel audio output * Use a chassis with HD audio module in the front panel to support a 8-channel audio output. |
| Internal I/O Connectors | 1 x USB 3.1 Gen1 connectors support additional 2 USB USB 3.1 Gen1 ports 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports 4 x SATA 6.0Gb/s connectors 1 x 4-pin CPU Fan connector for 4-pin PWM mode 1 x 4-pin Chassis Fan connector for 4-pin PWM mode 1 x Front panel audio connector (AAFP) 1 x COM header 1 x LPT header 1 x 24-pin EATX Power connector 1 x 4-pin ATX 12V Power connector 1 x 14-1 pin TPM header 1 x Clear CMOS 1 x Speaker connector 1 x Chassis Intrusion header 1 x System Panel connector |
| BIOS | 64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, ASUS EZ Flash, Multi Language |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Accessories | 2 x Serial ATA 6.0Gb/s cables 1 x I/O shield 1 x Support DVD 1 x User's manual |
| Support DVD | Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) |
| OS | Windows 10 (64-bit) |
| Form Factor | uATX Form Factor 8.4"*7.0" (21.34 cm*17.78 cm) |
Parametry
- Formát základní desky
- Micro ATX
- CPU Socket
- LGA 1151
- Technologie RAM
- DDR4
- Čipset desky
- Intel H310
