• Doprava zdarma!

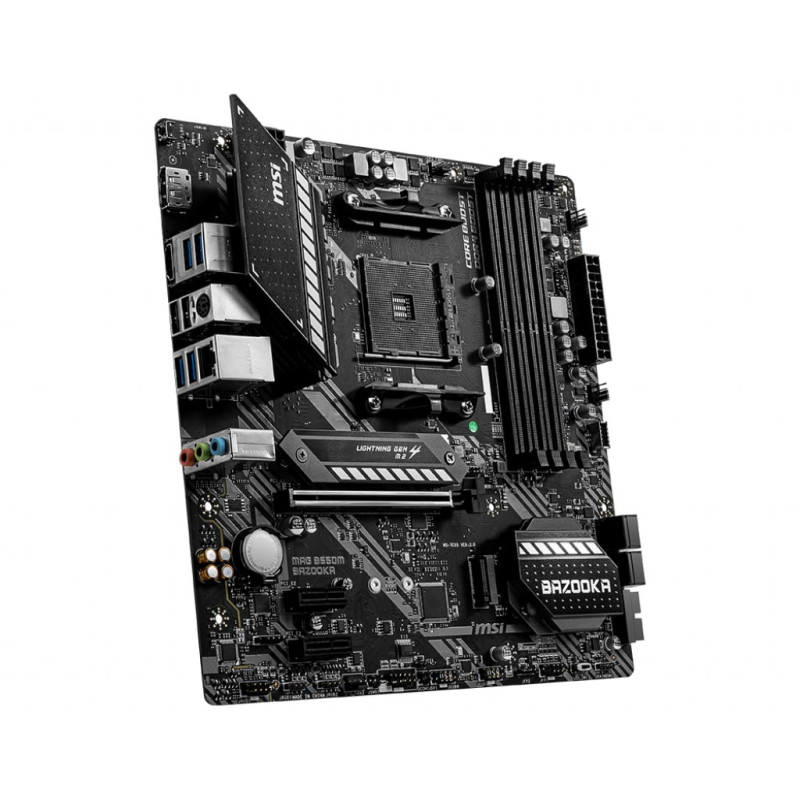

MSI MB Sc AM4 MAG B550M BAZOOKA, AMD B550, 4xDDR4, VGA, mATX

Socket (patice):Socket AM4; Formát:micro ATX; Integrovaná grafická karta:Ano (CPU); Chipset:AMD; Technologie paměti RAM:DDR4; PCI express 16x:1; Integrovaná LAN karta:1; Rozhraní:HDMI, USB 2.0, USB 3.2, 3.5mm Jack, DisplayPort
není skladem

PN: MAG B550M BAZOOKA
SKU: 70251665
EAN: 4719072733674
Značka: MSI
Záruka: 36 Měsíc(ů)
Záruka na IČ: 36 Měsíc(ů)

Značka:
Cena s DPH:
3 701,00 Kč
Cena bez DPH:
3 058,68 Kč
Doba dodání:
na vyžádání


Podrobnosti

MAG B550M BAZOOKA

TECHNICAL SPECIFICATIONS

CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset AMD B550 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/
  • 4400+ MHz by A-XMP OC MODE
  • 1DPC 1R max speed 4400 MHZ
  • 1DPC 2R max speed 3733 MHZ
  • 2DPC 1R max speed 3866 MHZ
  • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  • Please refer www.msi.com for more information on compatible memory.
Slots
  • 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1
  • 2x PCIe 3.0 x1 slots
    The supported specification depends on installed processor.PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.
Onboard Graphics
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
  • Maximum shared memory of 16GB
  • Available for the processor with integrated graphics.
Storage

AMD B550 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
  • M2_1 slot (from AMD processor)
  • Supports PCIe 4.0/ 3.0 x4 1
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (from AMD B550 chipset)
  • Supports PCIe 3.0x4
  • Supports 2242/ 2260/ 2280 storage devices
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports (4 Type-A ports on the back panel)
Audio
  • Realtek ALC892 Codec
    7.1-Channel High Definition Audio
LAN
  • 1x Realtek RTL8111HN 1Gbps LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper
Back Panel Ports
  • USB 3.2 Gen 1 5Gbps Type A
  • PS/2 Combo Port
  • Gigabit LAN Port
  • Flash BIOS Button
  • DisplayPort
  • HDMI
  • USB 2.0 port
  • USB 3.2 Gen 1 5Gbps Type A
  • HD Audio Connectors
I/O Controller
  • NUVOTON NCT6687-R Controller Chip
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Parametry

Formát základní desky
Micro ATX
CPU Socket
AM4
Technologie RAM
DDR4
Čipset desky
AMD B550
