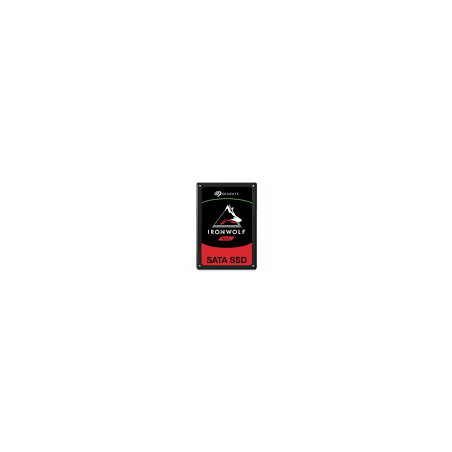

IronWolf 110 SSD - Tough. Ready. Scalable
The Seagate IronWolf 110 SSD is designed for everything business NAS, with 24×7 performance to handle multi-user environments across a wide range of capacities.
Key Advantages
TECHNICAL SPECIFICATIONS
SPECIFICATIONS | |
Capacity | 3.84TB |
Standard Model (TCG Pyrite) | ZA3840NM10001 |
FEATURES | |
Interface | SATA 6Gb/s |
NAND Flash Type | 3D TLC |
Form Factor | 2.5 in × 7mm |
PERFORMANCE | |
Sequential Read (MB/s) Sustained, 128KB QD32 | 560 |
Sequential Write (MB/s) Sustained, 128KB QD32 | 535 |
Random Read (IOPS) Sustained, 4KB QD32 | 85,000 |
Random R70R (IOPS) Sustained. 4KB QD32 | 60,000 |
Random Write (IOPS) Sustained, 4KB QD32 | 45,000 |
Average Read Latency (µs), 4KB QD1 | 175 |
Average Write Latency (µs), 4KB QD1 | 40 |
ENDURANCE/RELIABILITY | |
Total Bytes Written (TB) | 7000 |
Nonrecoverable Read Errors per Bits Read | 1 per 10E17 |
Mean Time Between Failures (MTBF, hours) | 2,000,000 |
Limited Warranty (years) | 5 |
POWER MANAGEMENT | |
+5/+12V Active Max Average Power (W) | 3.5 |
Average Idle Power (W) | 1.2 |
ENVIRONMENTAL | |
Temperature, Operating Internal (°C) | 0°C – 70°C |
Temperature, Nonoperating (°C) | -40°C – 85°C |
Temperature Change Rate/Hr, Max (°C) | 20 |
Shock, 0.5ms (Gs) | 1000 |
PHYSICAL | |
Height (mm/in, max) | 7.0mm/0.276in |
Width (mm/in, max) | 70.10mm/2.760in |
Depth (mm/in, max) | 100.25mm/3.947in |
Weight (g/lb) | 77.0g/0.169lb |
