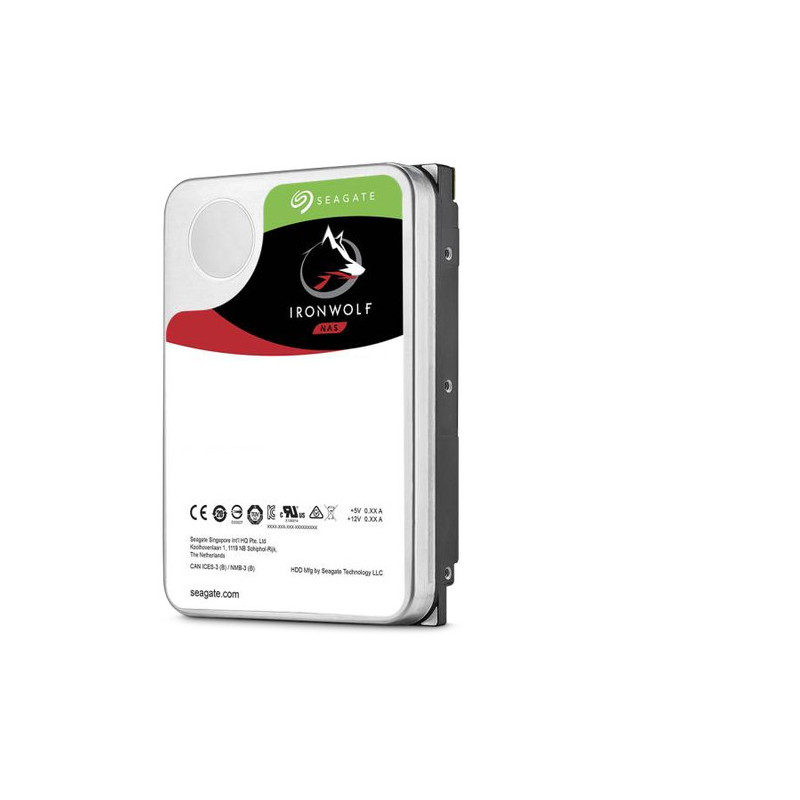

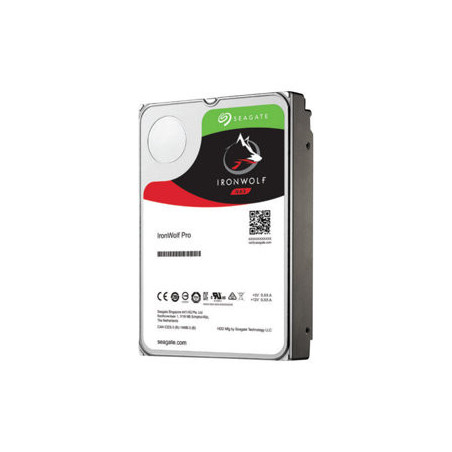

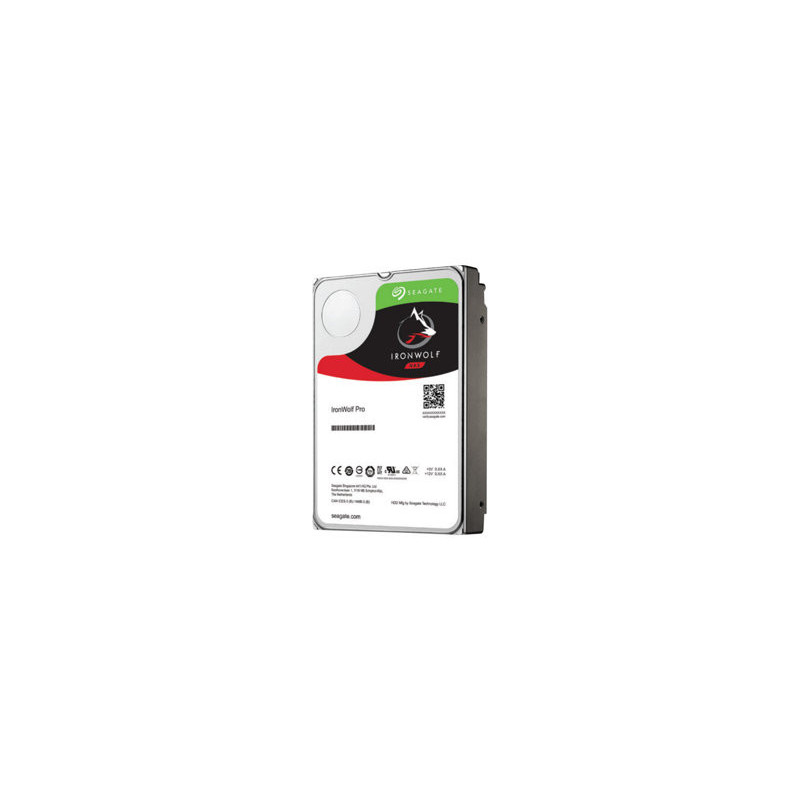

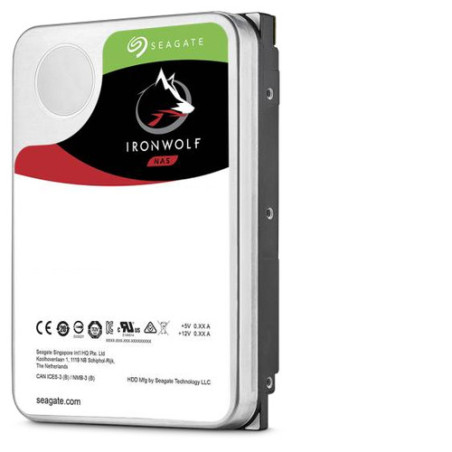

IronWolf NAS
IronWolf™ Pro is designed for everything business NAS. Get used to tough, ready and scalable 24×7 performance that can handle multidrive environments across a wide range of capacities.
Key Advantages
TECHNICAL SPECIFICATIONS
| SPECIFICATIONS | |
| Standard Model Number1 | ST12000NE0007 |
| Capacity | 12TB |
| FEATURES | |
| Drive Bays Supported | Up to 16 Bays |
| Multi-User Technology | 300TB/year |
| Rotational Vibration (RV) Sensor | yes |
| Hot-Plug Support2 |
yes |
| Cache (MB) | 256 |
| RELIABILITY/DATA INTEGRITY | |
| Mean Time Between Failures (MTBF, hours) | 1,200,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.73% |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E15 |
| Power-On Hours per Year (24×7) | 8760 |
| Sector Size (Bytes per Logical Sector) | 512E |
| Rescue Services3 |
yes |
| Limited Warranty (years) | 5 |
| PERFORMANCE | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD (MB/s) | 250MB/s |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotational Vibration @ 10-1500 Hz (rad/s2) |
12.5 |
| POWER CONSUMPTION | |
| Startup Current, Typical (12V, A) | 2.0 |
| Average Operating Power (W) | 7.8W |
| Idle Power, Average (W) | 5.0W |
| Standby Mode/Sleep Mode, Typical (W) | 0.8/0.8 |
| Power Supply Requirements | +12 V and +5 V |
| ENVIRONMENTAL/TEMPERATURE | |
| Operating (ambient, min °C) | 5 |
| Operating (drive case, max °C)2 | 60 |
| Nonoperating (ambient, min °C) | -40 |
| Nonoperating (ambient, max °C) | 70 |
| ENVIRONMENTAL/SHOCK | |
| Shock, Operating 2ms (Read/Write) (Gs) | 70/40Gs |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 250 |
| ENVIRONMENTAL/ACOUSTICS | |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 2.27 |
| PHYSICAL | |
| Height (mm/in) | 26.11mm/1.028in |
| Width (mm/in, max) | 101.85mm/4.010in |
| Depth (mm/in, max) | 146.99mm/5.787in |
| Weight (g/lb) | 705g/1.55lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet/Cartons per Layer | 40 / 8 |
1 Seagate recommends validating your configuration with your HBA/RAID controller manufacturer to ensure full capacity capabilities.
2 Supports Hot-Plug operation per Serial ATA Revision 2.6 specification.
3 Rescue recovery services not available in all countries. Contact your Seagate sales representative for further details. Register an IronWolf Pro drive to activate your 2-year Rescue plan at seagate.com/register
