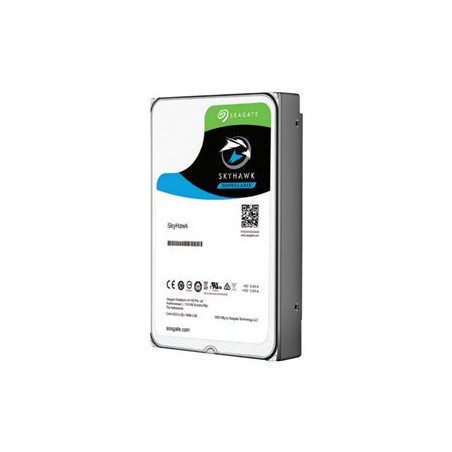

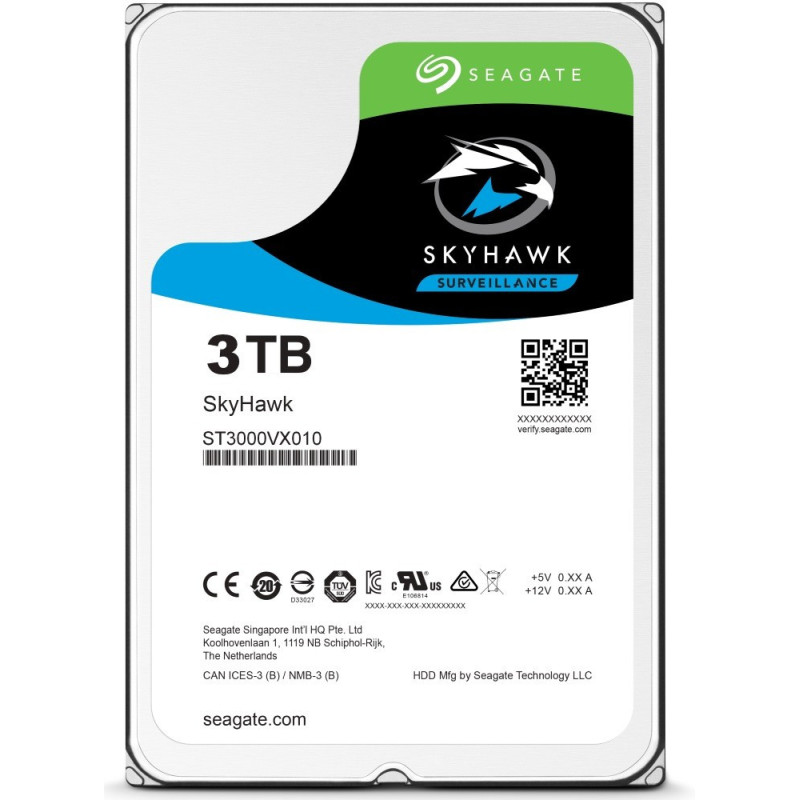

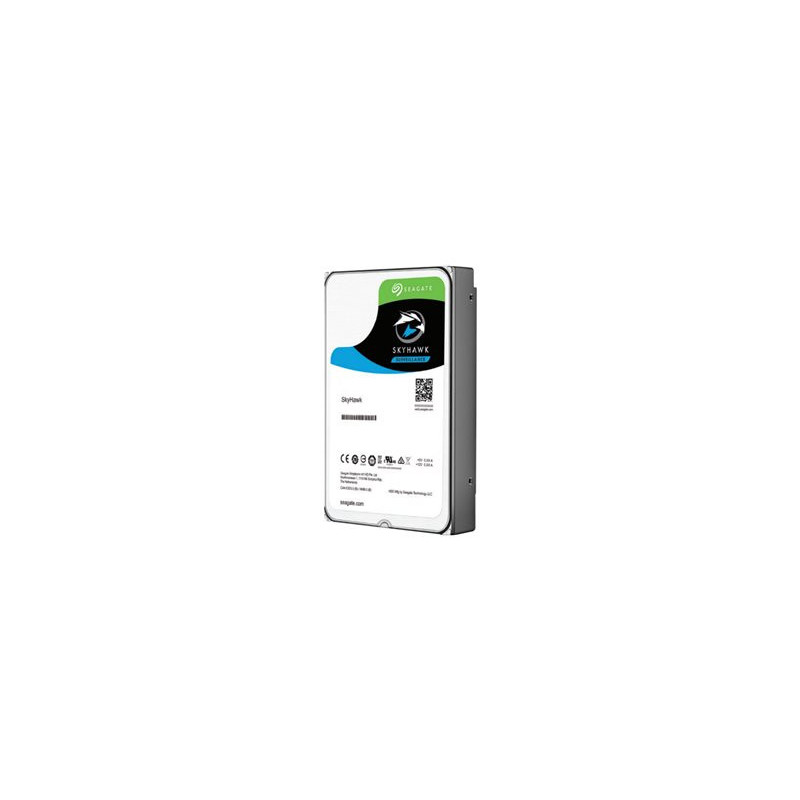

SKYHAWK 3TB
Key Advantages
TECHNICAL SPECIFICATIONS
| SPECIFICATIONS | |
| Base Mode1 | ST3000VX009 |
| Capacity | 3TB |
| Interface | SATA 6Gb/s |
| FEATURES AND PERFORMANCE | |
| Drive Bays Supported | 1 to 8 |
| Cameras Supported | Up to 64 |
| Max. Sustained Transfer Rate OD (MB/s) | 180MB/s |
| Cache, Multisegmented (MB) | 256 |
| RELIABILITY/DATA INTEGRITY | |
| Tarnish Resistant | yes |
| Load/Unload Cycles | 300,000 |
| Nonrecoverable Read Errors per Bits Read, Max |
1 per 10E15 |
| Power-On Hours per Year (24×7) | 8760 |
| Workload Rate Limit (WRL)2 |
180 |
| MTBF | 1,000,000hr |
| Limited Warranty (years)3 |
3 |
| POWER MANAGEMENT | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 3.5 |
| Idle Average (W) | 2.5W |
| Standby Mode/Sleep Mode, Typical (W) | 0.25/0.25 |
| Voltage Tolerance, Inc. Noise (5V) | ±5% |
| Voltage Tolerance, Inc. Noise (12V) | ±10% |
| ENVIRONMENTAL/TEMPERATURE | |
| Operating (ambient, min °C) | 0 |
| Operating (drive case, max °C)4 |
70 |
| Nonoperating (ambient) | -40 |
| PHYSICAL | |
| Height (in/mm, max) | 20.20mm/0.795in |
| Width (mm/in, max) | 101.85mm/4.010in |
| Depth (mm/in, max) | 146.99mm/5.787in |
| Weight (g/lb) | 490g/1.08lb |
