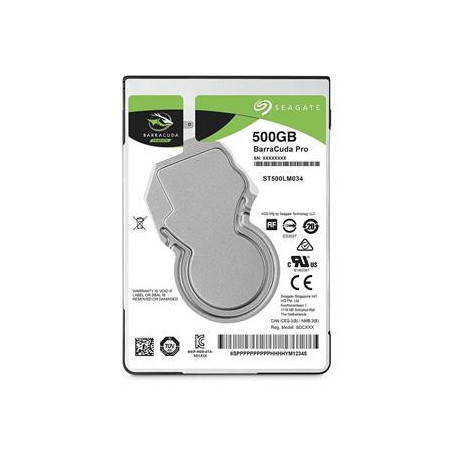

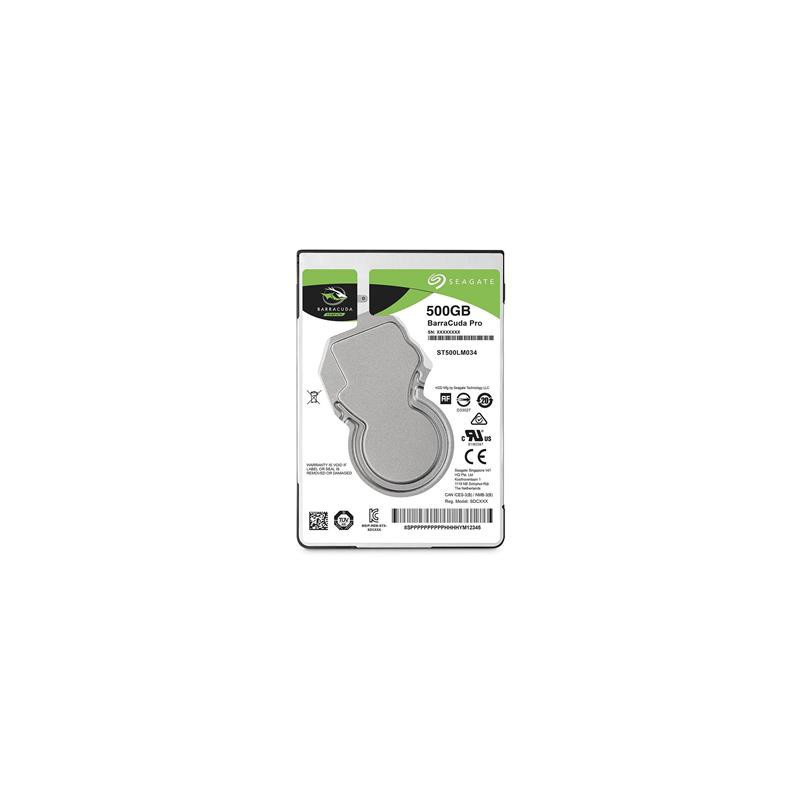

BARRACUDA PRO
Key Advantages
TECHNICAL SPECIFICATIONS
| SPECIFICATIONS | |
| Base Mode | ST500LM034 |
| Capacity | 500GB |
| Bytes per Sector (logical/physical) | 512/4096 |
| PERFORMANCE | |
| Interface | SATA 6Gb/s |
| Data Transfer Rate (MB/s) | Up to 160 |
| Cache (MB) | 128 |
| Spindle Speed (RPM) | 7200 |
| RELIABILITY/DATA INTEGRITY | |
| Load/Unload Cycles | 600,000 |
| Head-Rest Method | QuietStep Ramp Load |
| Nonrecoverable Read Errors per Bits Read, Max |
1 per 10E14 |
| Limited Warranty (years)1 |
5 |
| POWER MANAGEMENT | |
| Startup Current (+5V, A) | 1.0 |
| Read/Write Power, Average (W) | 1.9/1.7 |
| Idle Power, Average (W) | 0.7 |
| ENVIRONMENTAL | |
| Temperature, Operating (°C) | 0°C – 60°C |
| Temperature, Nonoperating (°C) | -40°C – 70°C |
| Shock, Operating: 2ms (Gs) | 400 |
| Shock, Nonoperating: 1ms (Gs) | 1000 |
| Acoustics, Typical Idle (bels) | 2.2 |
| Acoustics, Typical Seek (bels) | 2.4 |
| PHYSICAL | |
| Height (in/mm, max) | 7.0mm/0.276in |
| Width (mm/in, max) | 69.85mm/2.750in |
| Depth (mm/in, max) | 100.35mm/3.951in |
| Weight (g/lb) | 85g/0.187lb |
1 Extended warranty products available. Consult your distributor for details
