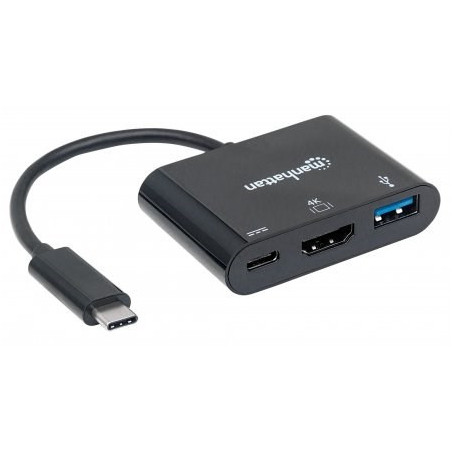

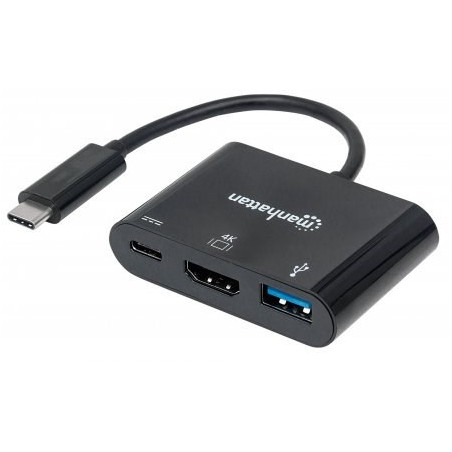

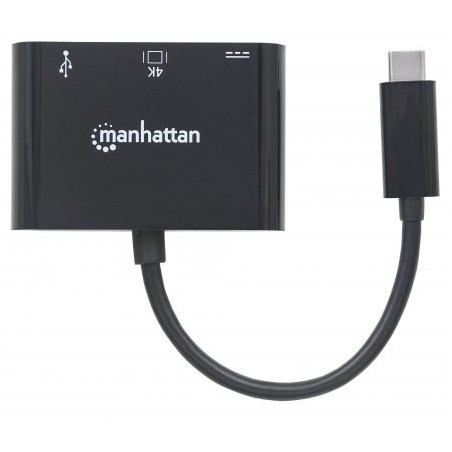

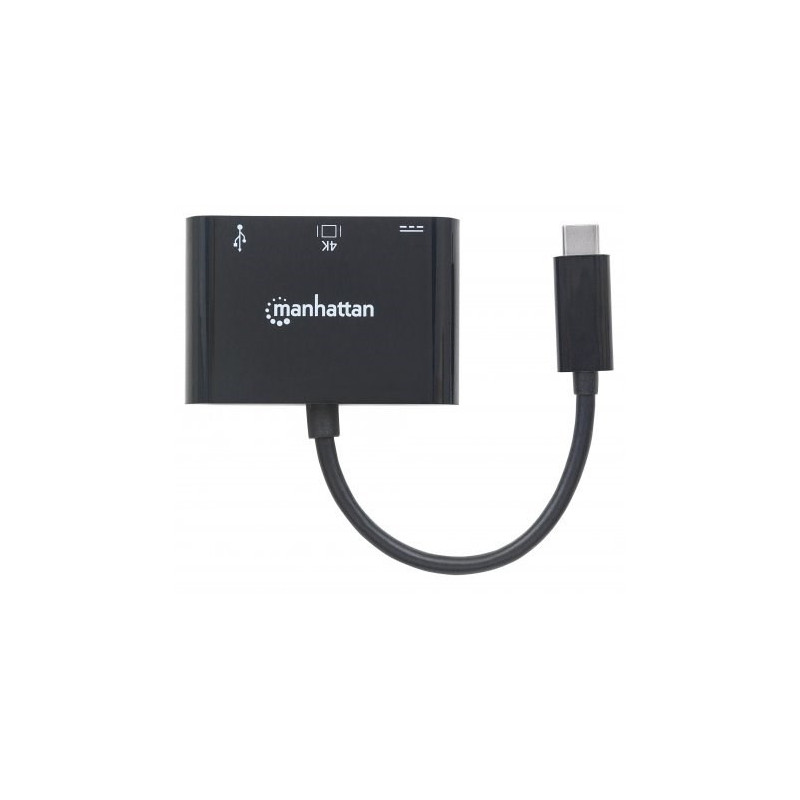

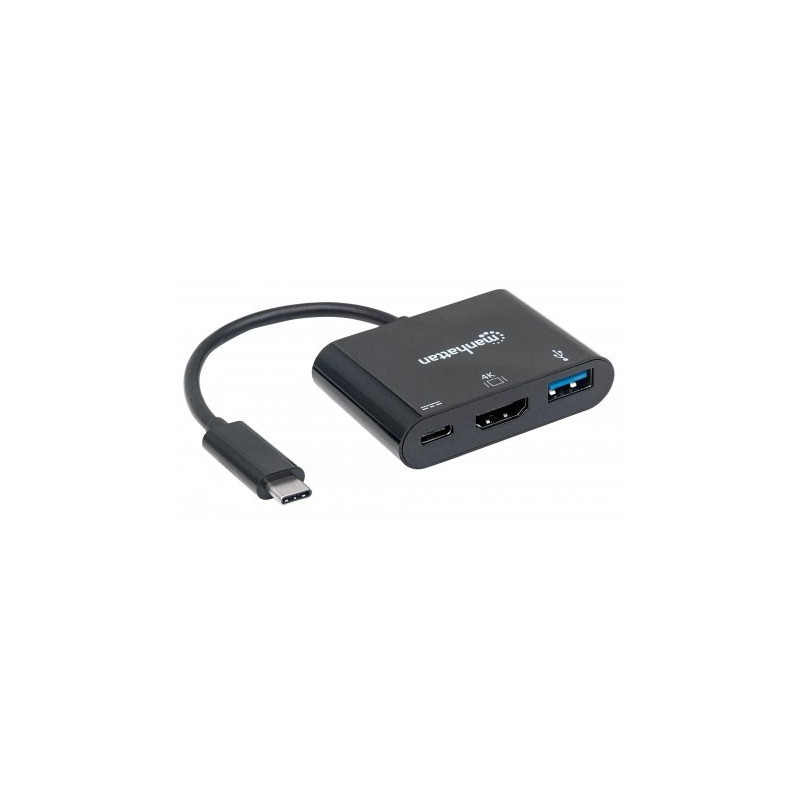

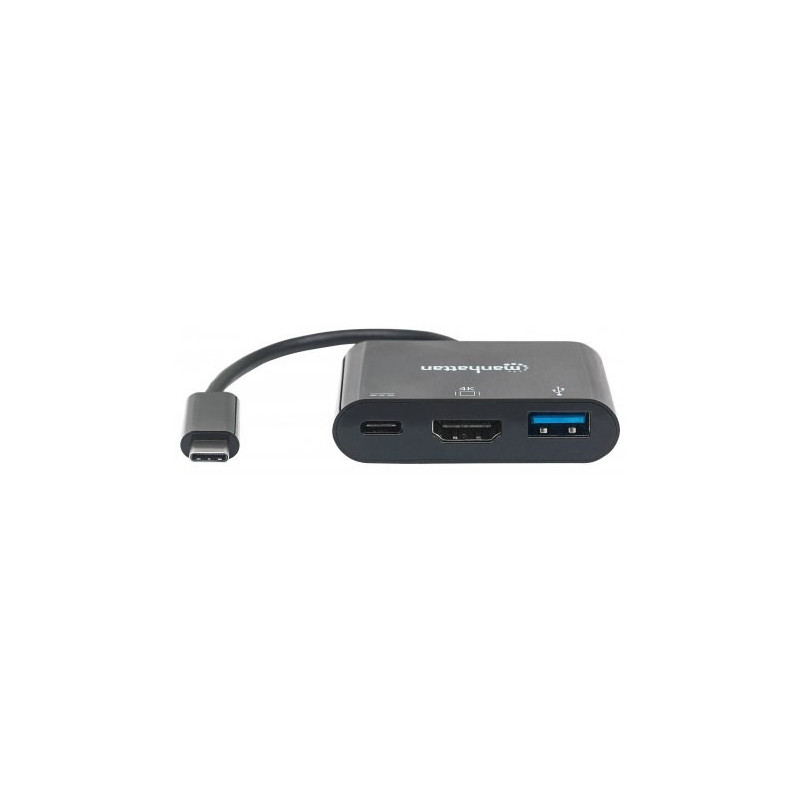

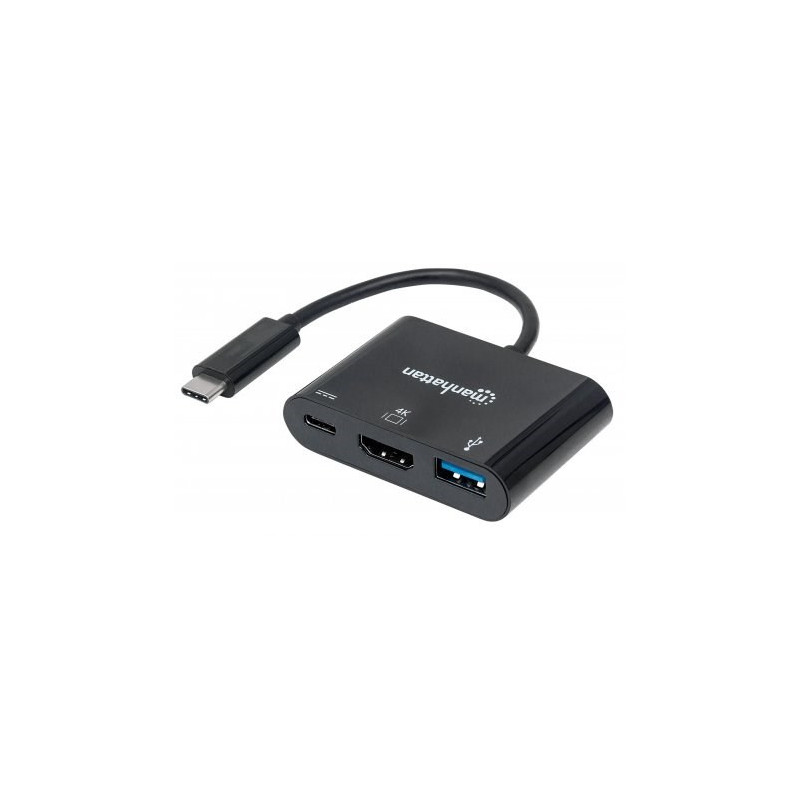

MANHATTAN multifunkční převodník z USB 3.1 type C Male na HDMI, USB 3.0 A a USB C Females

Easily connect a USB type-C device with an HDMI display and USB peripherals.

The Manhattan USB Type-C HDMI Docking Converter establishes a fast, simple and convenient link between newer USB type-C equipped media sources (computers, tablets, etc.) and existing HDMI displays (monitors, projectors, etc.), in either mirror- or extended-display mode. Create a mini-workstation by adding any USB 3.0 peripheral such as a mouse, keyboard, hub, external memory device and more with the integrated USB 3.0 port. Charge a device through the type-C charging port.

The Manhattan USB Type-C HDMI Docking Converter is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your type-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly.

Features:

Multi-function docking converter connects a USB type-C port to an HDMI display, USB 3.0 port and type-C charging port
Enjoy Ultra High-Definition(UHD) video and audio on an HDMI monitor, projector or other display device
Mirror or Extended display modes support video resolutions up to 1080p@60Hz or 3840x2160p@30Hz, 4K, Full UHD
Provides a standard USB 3.0 type-A port to connect mice, keyboards or portable memory devices (and more) or to charge and sync a portable electronic device
USB-A port supports superspeed (5Gbps) data transmission, charging up to 7.5W (5V/1.5A); BC1.2 compliant
USB-C port supports charging at 60W (20V@3A)
USB-C supports 5Gbps data transmission
Supports USB Power Delivery (PD) function up to 60 watts
Compatible with all USB type-C supported desktops, notebooks and tablets including Apple MacBook, Chromebook Pixel and more
Compliant with DisplayPort 1.2 Alternate Mode (DP Altmode)
Plug and Play
Fully shielded to reduce EMI and other interference sources
Molded PVC boot and strain relief
Lifetime Warranty

Specifications:

Standards and Certifications
USB 3.1
HDMI
HDCP 1.4
CE
FCC
RoHS2
WEEE

General
Bus powered, up to 60 watts
Overcurrent protection

Connections
USB type-C, 24-pin, male
HDMI, 19-pin, female
USB type-C, 24-pin, female
USB type-A, 4-pin, female

Video Resolutions
640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 3840 x 2160p@30Hz, 4K

Physical
24-AWG cable gauge
Mylar and aluminum shielding
Withstanding voltage: 300 VDC
Insulation resistance: 10 MΩ
Conductive resistance: 5 Ω
Thermal plastic casing
Length: 8 cm (3 in.)
Weight: 31 g (1.1 oz.)
Shielded
Housing: ABS plastic

Operating Environment
Operation Temperature: 0 ~ 40°C
Storage Temperature: 20 ~ 60°C
Humidity (noncondensing): 5 ~ 90%

System Requirements
Windows XP/Vista/7/8.1/10 or Linux or Mac 9.x/10.x or above

Package Contents

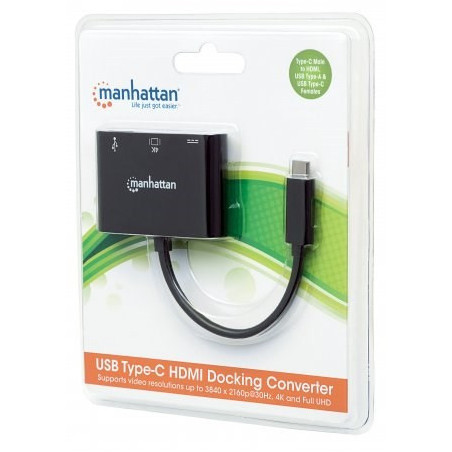

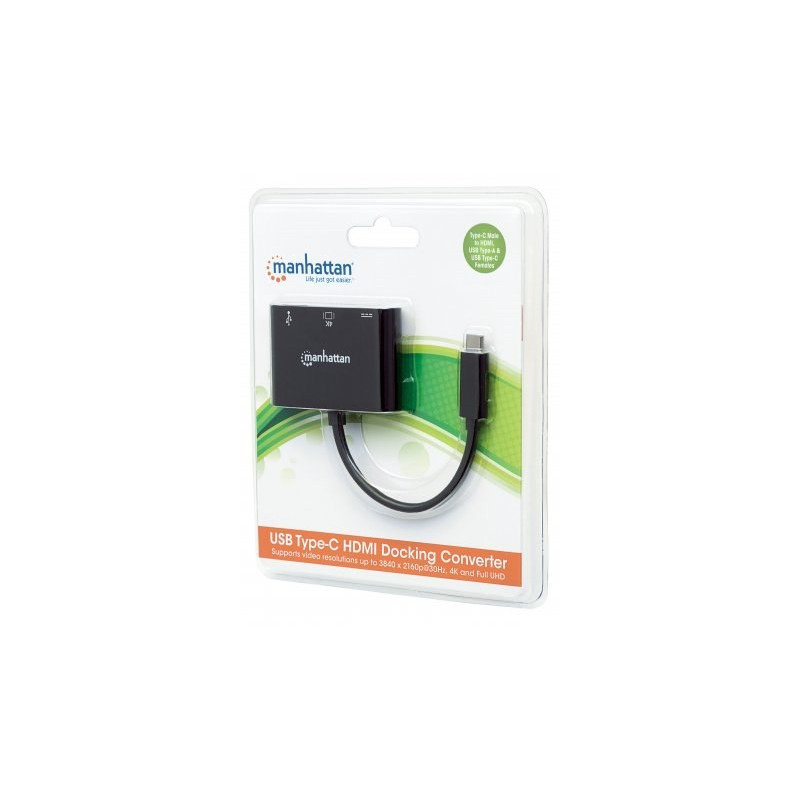

SuperSpeed USB C HDMI Docking Converter
Quick Instruction Guide
