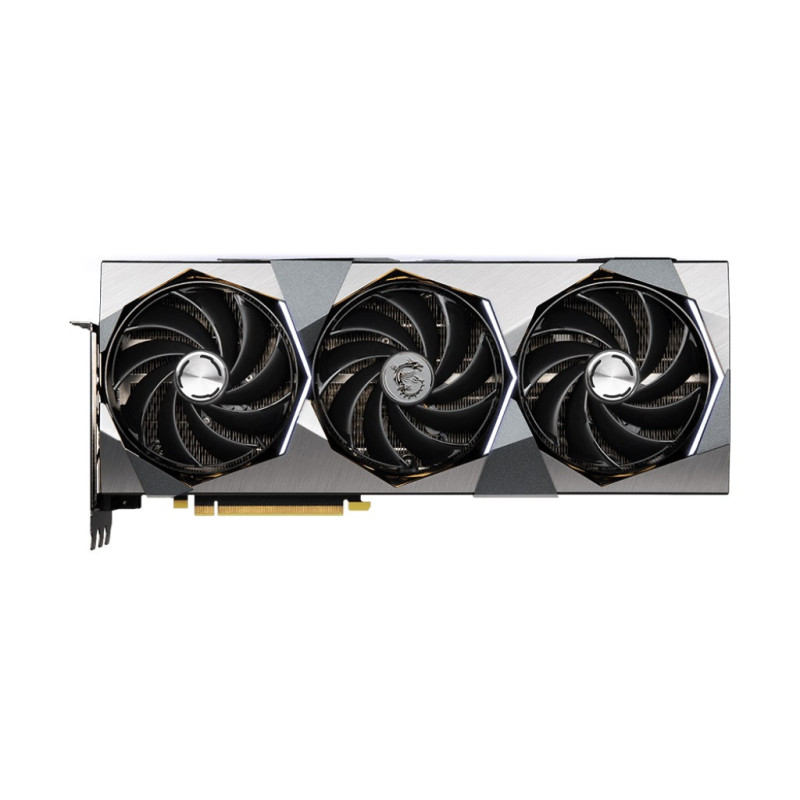

MSI VGA NVIDIA GeForce RTX 4070 Ti SUPRIM X 12G, RTX 4070 Ti, 12GB GDDR6X, 3xDP, 1xHDMI

GeForce RTX™ 4070 Ti SUPRIM X 12G

WITH DLSS 3

Get equipped for stellar gaming and creating with the NVIDIA GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

• Extreme Performance: 2790 MHz (MSI Center)
• Boost: 2775 MHz (GAMING & SILENT Mode)
• 21 Gbps
• 12GB GDDR6X
• DisplayPort x 3 (v1.4a)
• HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

TRI FROZR 3S Thermal Design

• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
• COPPER BASEPLATE: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
• Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
• Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

Dual BIOS

• Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Mystic Light

• Controls lighting for both MSI and compatible third-party RGB products.

MODEL NAME

GeForce RTX™ 4070 Ti SUPRIM X 12G

GRAPHICS PROCESSING UNIT

NVIDIA GeForce RTX™ 4070 Ti

INTERFACE

PCI Express Gen 4

CORE CLOCKS

Extreme Performance: 2790 MHz (MSI Center)
Boost: 2775 MHz (GAMING & SILENT Mode)

CUDA CORES

7680 Units

MEMORY SPEED

21 Gbps

MEMORY

12GB GDDR6X

MEMORY BUS

192-bit

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP SUPPORT

Y

POWER CONSUMPTION

285 W

POWER CONNECTORS

16-pin x 1

RECOMMENDED PSU

750 W

CARD DIMENSION (MM)

338 x 142 x 73 mm

WEIGHT (CARD / PACKAGE)

2019g / 3224g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

G-SYNC TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680x4320
