GIGABYTE VGA AMD Radeon RX 6750 XT GAMING OC 12G, RX 6750 XT, 12GB GDDR6, 2xDP, 2xHDMI

Radeon™ RX 6750 XT GAMING OC 12G

• Powered by AMD RDNA™ 2 Radeon™ RX 6750 XT
• Integrated with 12GB GDDR6 192-bit memory interface

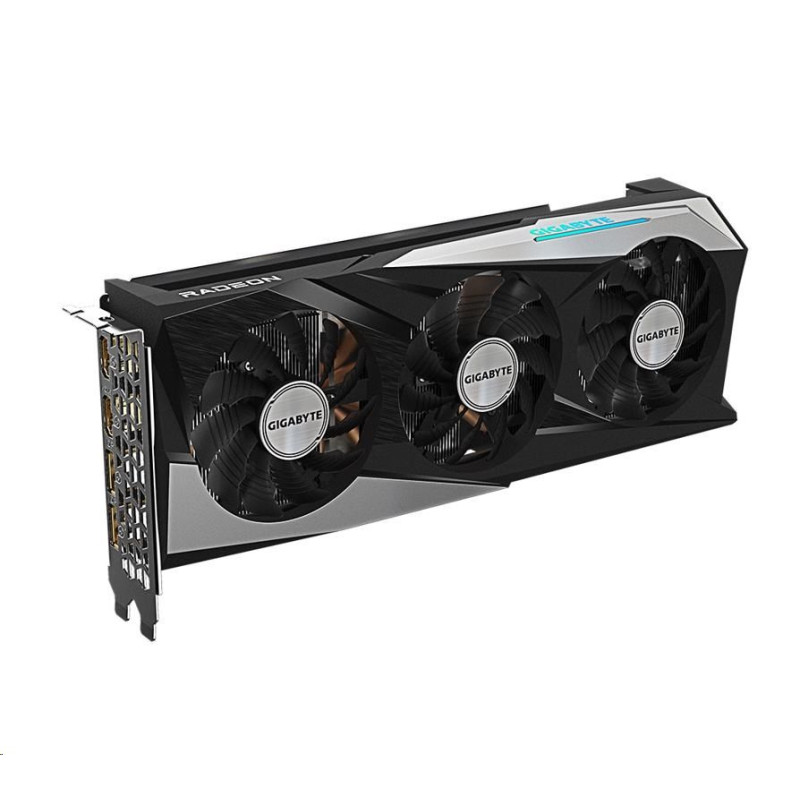

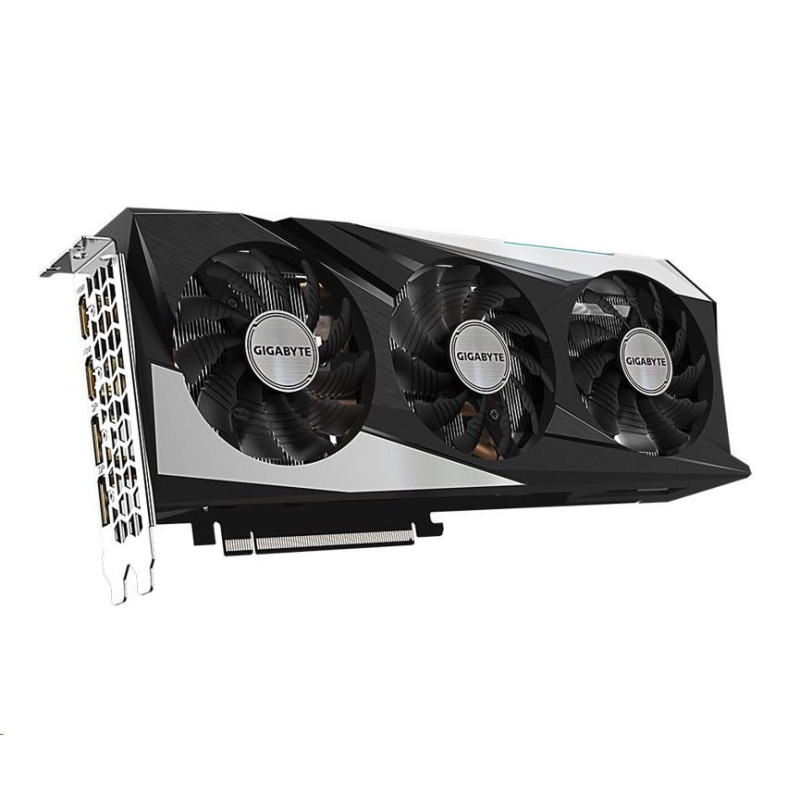

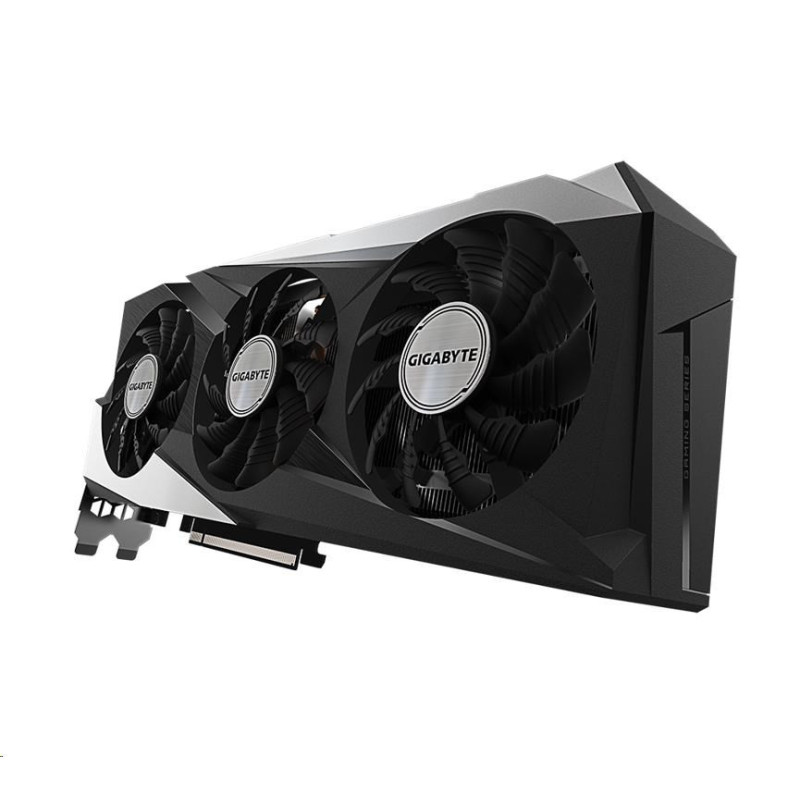

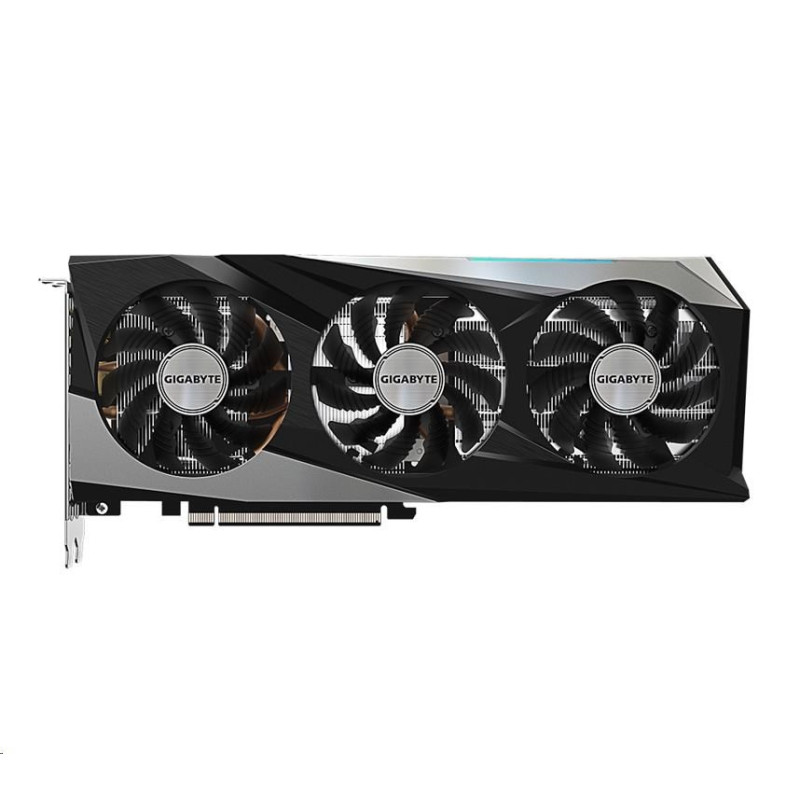

• WINDFORCE 3X Cooling System with alternate spinning fans
• Screen cooling
• Graphene nano lubricant
• RGB Fusion 2.0

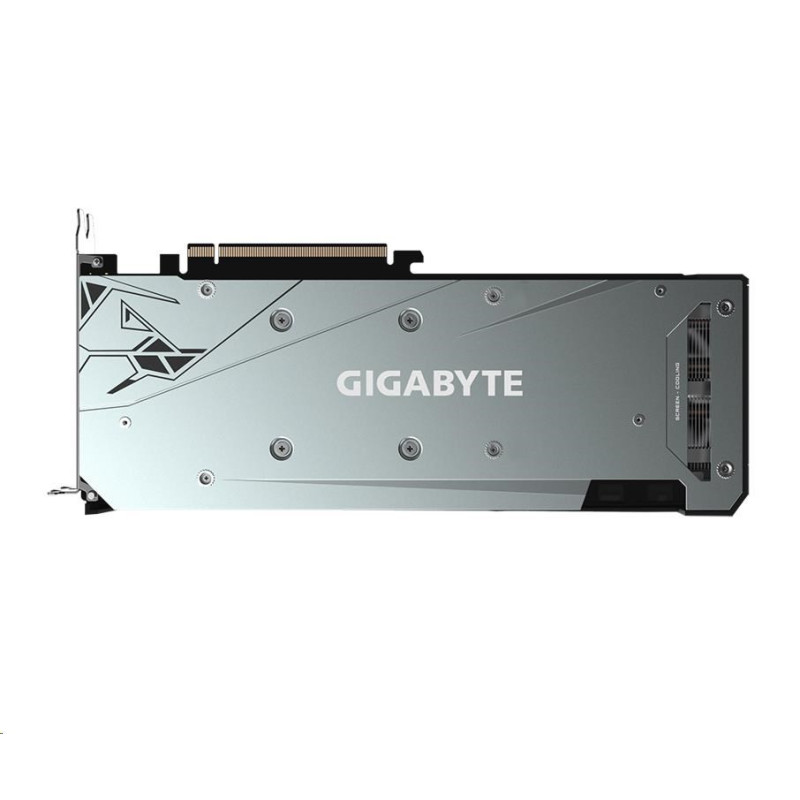

• Protection metal back plate

CORE CLOCK

• Boost Clock : up to 2623 MHz (Reference card: 2600 MHz)
• Game Clock : up to 2533 MHz (Reference card: 2495 MHz)

Graphics Processing

Radeon™ RX 6750 XT

Core Clock

Boost Clock* : up to 2623 MHz (Reference card: 2600 MHz)
Game Clock* : up to 2533 MHz (Reference card: 2495 MHz)

Stream Processors

2560

Process Technology

7 nm

Memory Clock

18000 MHz

Memory Size

12 GB

Memory Type

GDDR6

Memory Bus

192 bit

Memory Bandwidth (GB/sec)

432 GB/s

Card Bus

PCI-E 4.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=281 W=115 H=49 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

650W

Power Connectors

8 Pin*1, 6 Pin*1

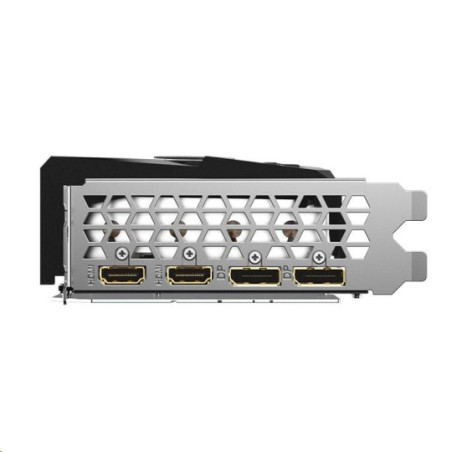

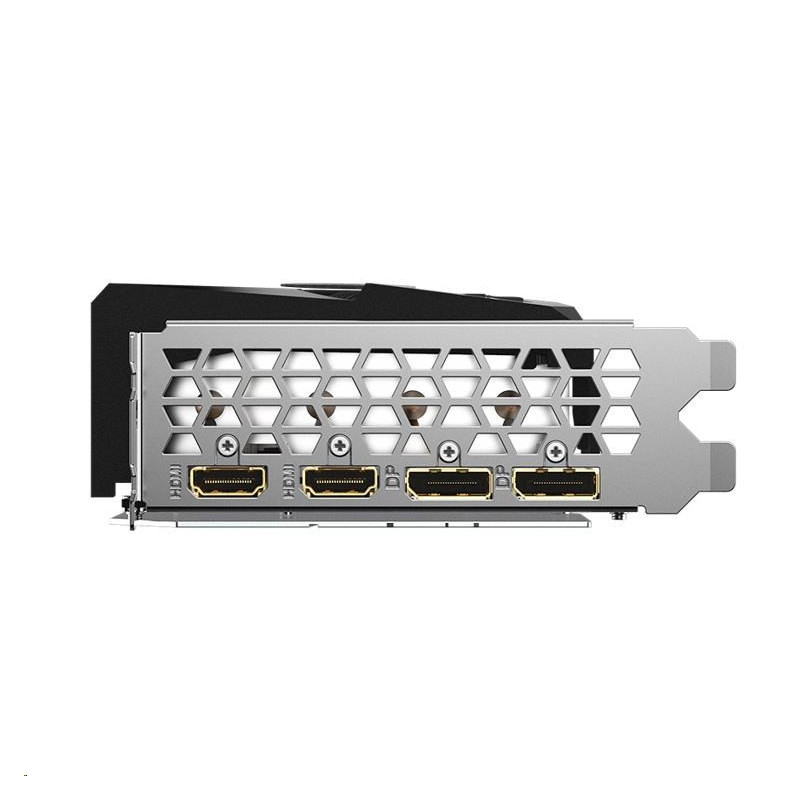

Output

DisplayPort 1.4a *2
HDMI 2.1 *2

Accessories

Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
