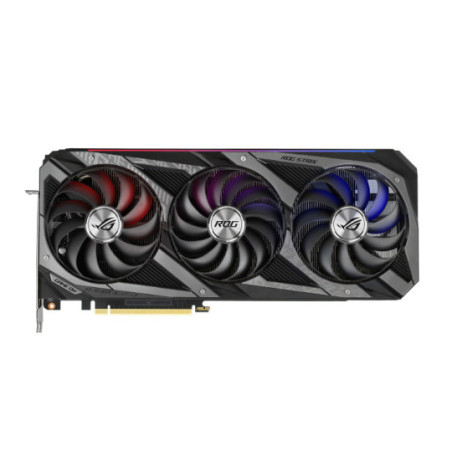

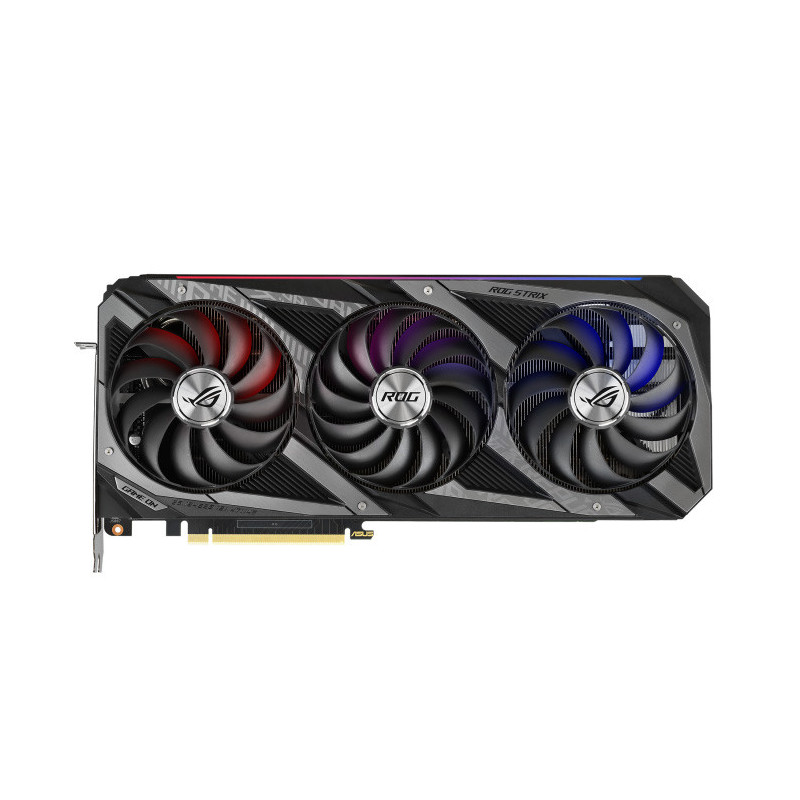

ASUS VGA NVIDIA ROG-STRIX-RTX3060TI-O8G-V2-GAMING, RTX 3060Ti LHR, 8GB GDDR6, 3xDP, 2xHDMI

ROG-STRIX-RTX3060TI-O8G-V2-GAMING

ROG Strix GeForce RTX™ 3060 Ti V2 OC Edition 8GB GDDR6 with LHR offers a buffed-up design with chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
• OC Edition: Boost clock 1890 MHz (OC mode)/ 1860 MHz (Gaming mode)
• Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
• 2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
• Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Graphic Engine

NVIDIA GeForce RTX™ 3060 TI

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

8GB GDDR6

Engine Clock

OC Mode - 1890 MHz (Boost Clock)
Gaming Mode - 1860 MHz (Boost Clock)

CUDA Core

4864

Memory Speed

14 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x ROG Velcro Hook & Loop
1 x ROG ruler
1 x Collection card
1 x Speedsetup manual

Software

ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

12.53 " x 5.51 " x 2.27 " Inch
31.85 x 14.01 x 5.78 Centimeter

Recommended PSU

750W

Power Connectors

2 x 8-pin

Slot

2.9 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
