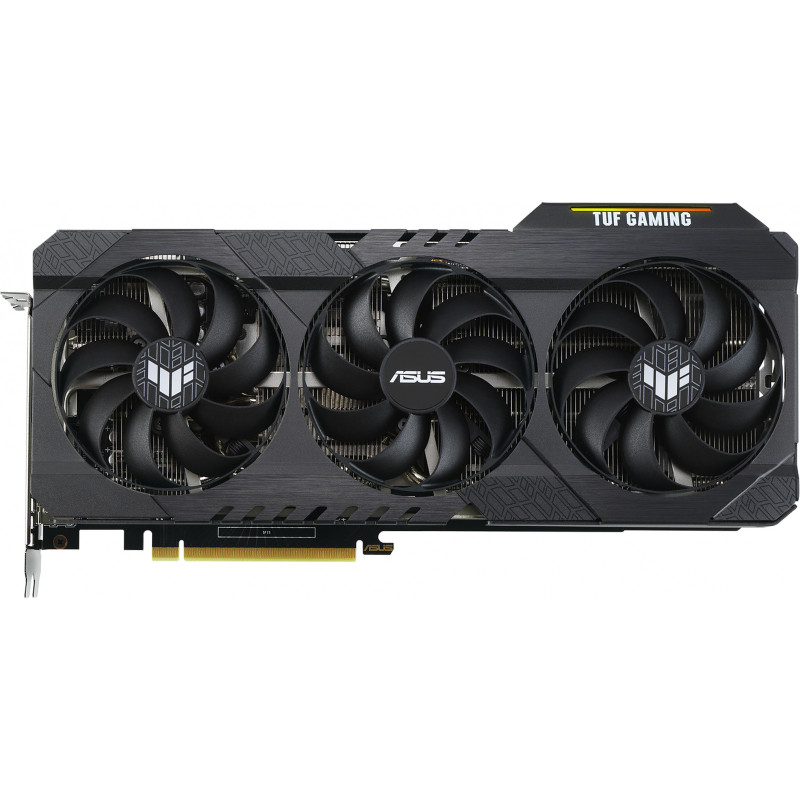

Asus TUF-RTX3060-O12G-V2-GAMING 90YV0GC0-M0NA10

TUF Gaming GeForce RTX™ 3060 V2 OC Edition

ASUS TUF Gaming GeForce RTX™ 3060 V2 OC Edition 12GB GDDR6 buffed-up design with chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• OC edition: Boost clock 1882 MHz (OC mode)/ 1852 MHz (Gaming mode)
• Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• An all-aluminum shroud and metal backplate enhance durability.
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Graphic Engine

NVIDIA GeForce RTX™ 3060

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

12GB GDDR6

Engine Clock

OC Mode - 1882 MHz (Boost Clock)
Gaming Mode - 1852 MHz (Boost Clock)

CUDA Core

3584

Memory Speed

15 Gbps

Memory Interface

192-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x TUF certificate of Reliability
1 x Collection card
1x Speedsetup Manual

Software

ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

11.81 " x 5.63 " x 2.13 " Inch
30.1 x 14.3 x 5.4 Centimeter

Recommended PSU

750W

Power Connectors

1 x 8-pin

Slot

2.7 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
