ASUS VGA NVIDIA TUF Gaming GeForce RTX™ 3070 Ti OC Edition, RTX 3070 Ti, 8GB GDDR6X, 3xDP, 2xHDMI

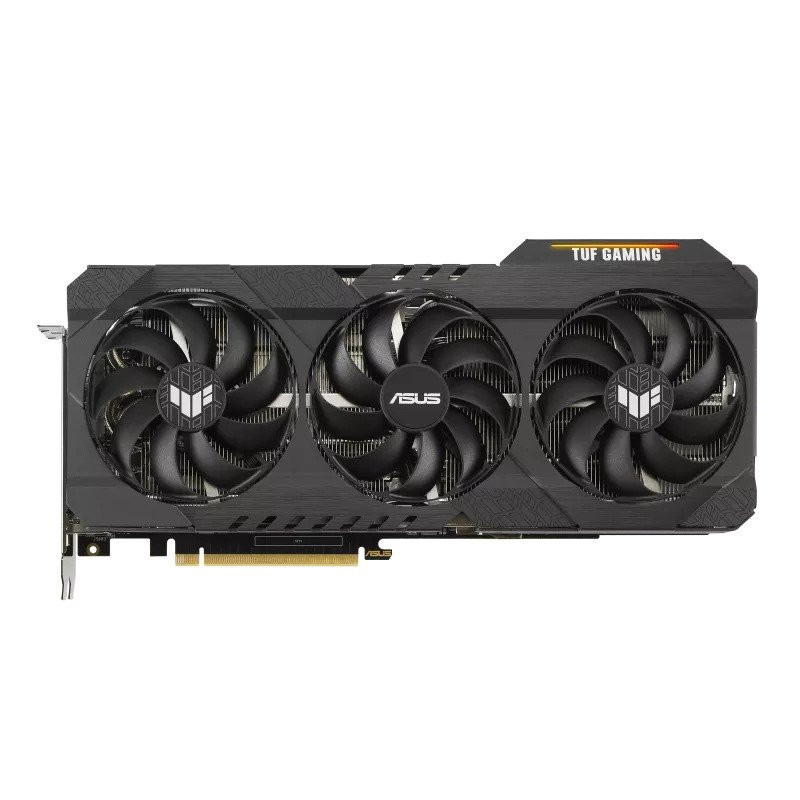

TUF Gaming GeForce RTX™ 3070 Ti OC Edition

TUF Gaming GeForce RTX™ 3070 Ti OC Edition 8GB GDDR6X buffed-up design with chart-topping thermal performance.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• OC edition: Boost clock 1815 MHz (OC mode)/ 1785 MHz (Gaming mode)
• Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
• Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
• Military-grade Capacitors and other TUF components enhance durability and performance.
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Graphic Engine

NVIDIA GeForce RTX™ 3070 Ti

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

8GB GDDR6X

CUDA Core

6144

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup Manual

Software

ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

299.9 x 126.9 x 51.7 mm
11.81 x 5 x 2.04 inch

Power Connectors

2 x 8-pin

Slot

2.7 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
