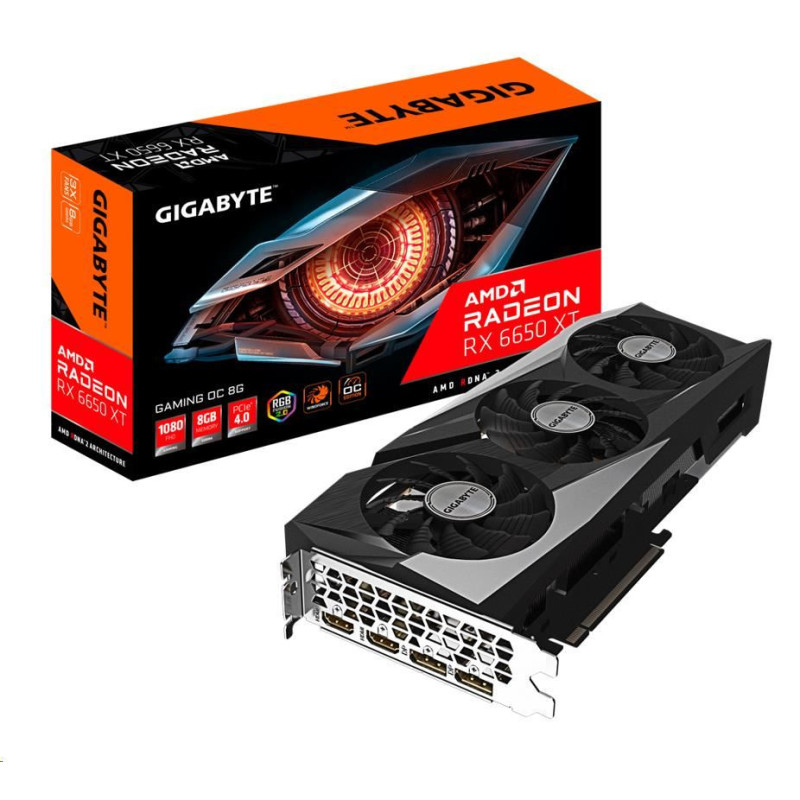

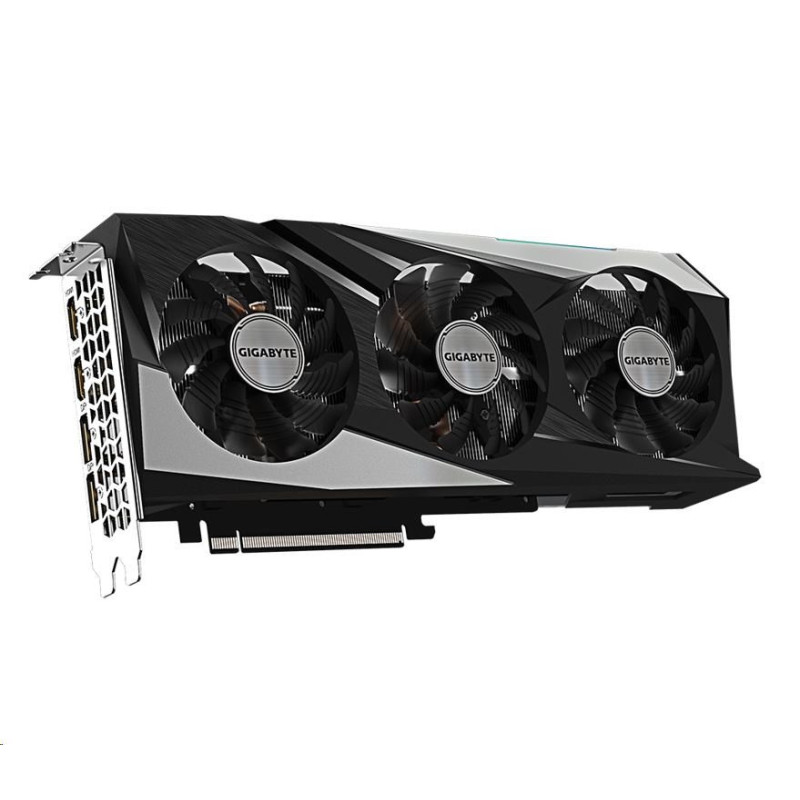

Gigabyte GV-R665XTGAMING OC-8GD

Radeon™ RX 6650 XT GAMING OC 8G

• Powered by AMD RDNA™ 2 Radeon™ RX 6650 XT
• Integrated with 8GB GDDR6 128-bit memory interface

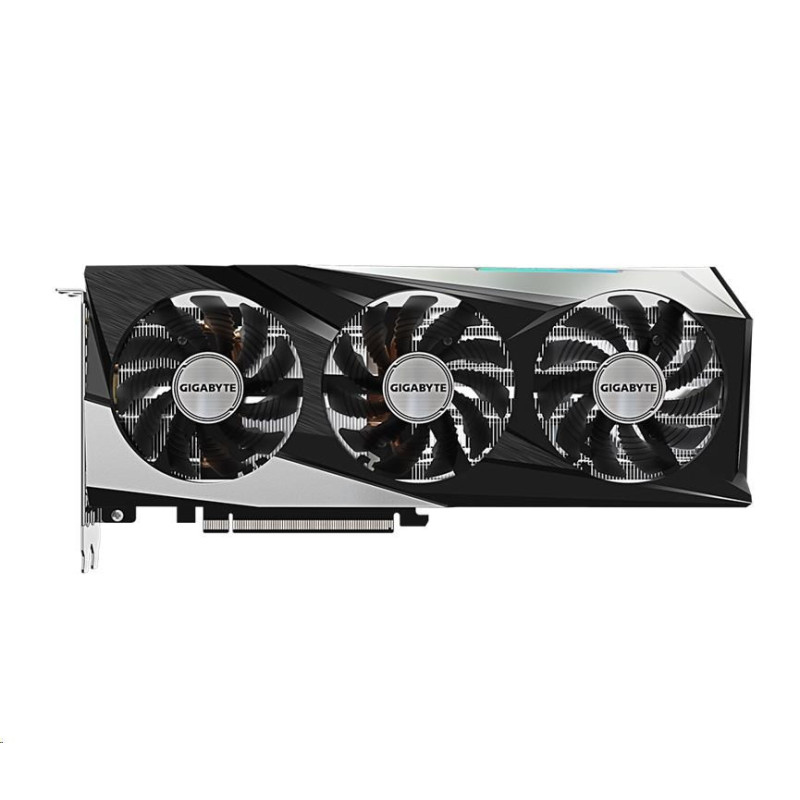

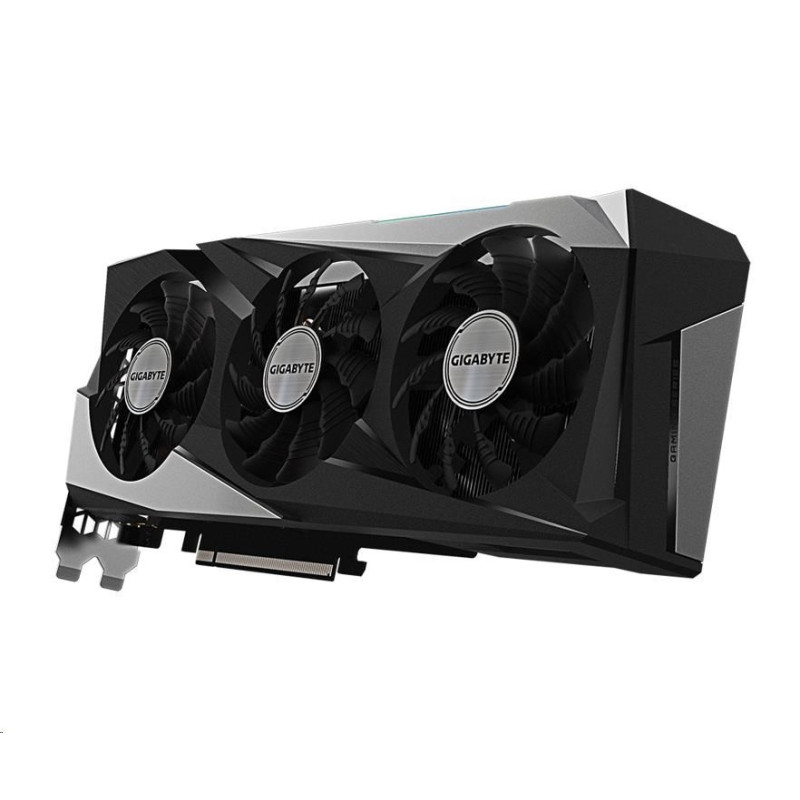

• WINDFORCE 3X Cooling System with alternate spinning fans
• Screen cooling
• Graphene nano lubricant
• RGB Fusion 2.0

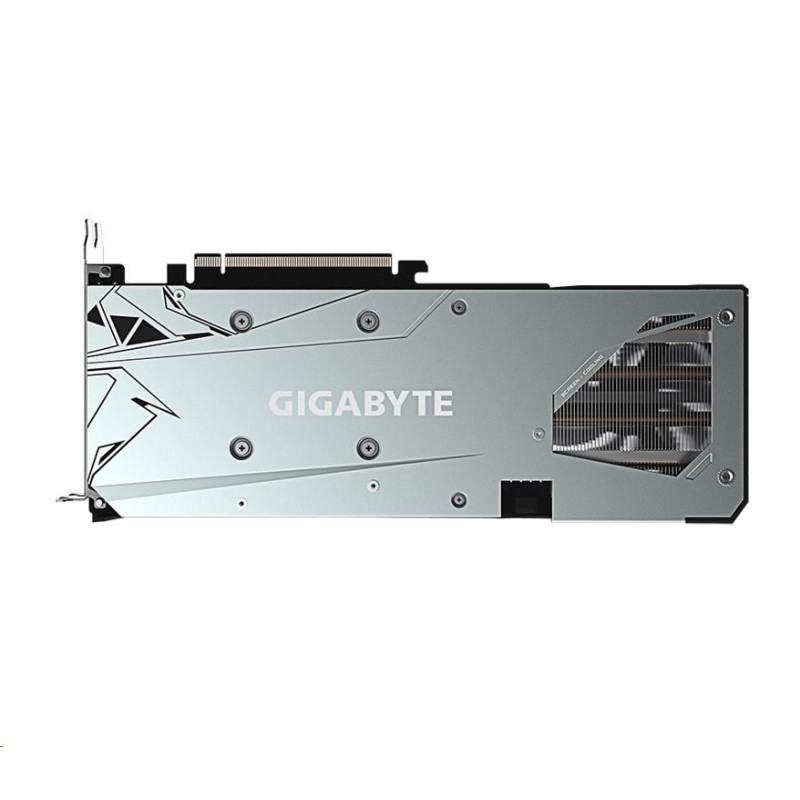

• Protection metal back plate

CORE CLOCK

• Boost Clock : up to 2694 MHz (Reference card: 2635 MHz)

Graphics Processing

Radeon™ RX 6650 XT

Core Clock

Boost Clock* : up to 2694 MHz (Reference card: 2635 MHz)
Game Clock* : up to 2523 MHz (Reference card: 2410 MHz)

Stream Processors

2048

Memory Clock

17500 MHz

Memory Size

8 GB

Memory Type

GDDR6

Memory Bus

128 bit

Memory Bandwidth (GB/sec)

280 GB/s

Card Bus

PCI-E 4.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=282 W=115 H=50 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

500W

Power Connectors

8 pin*1

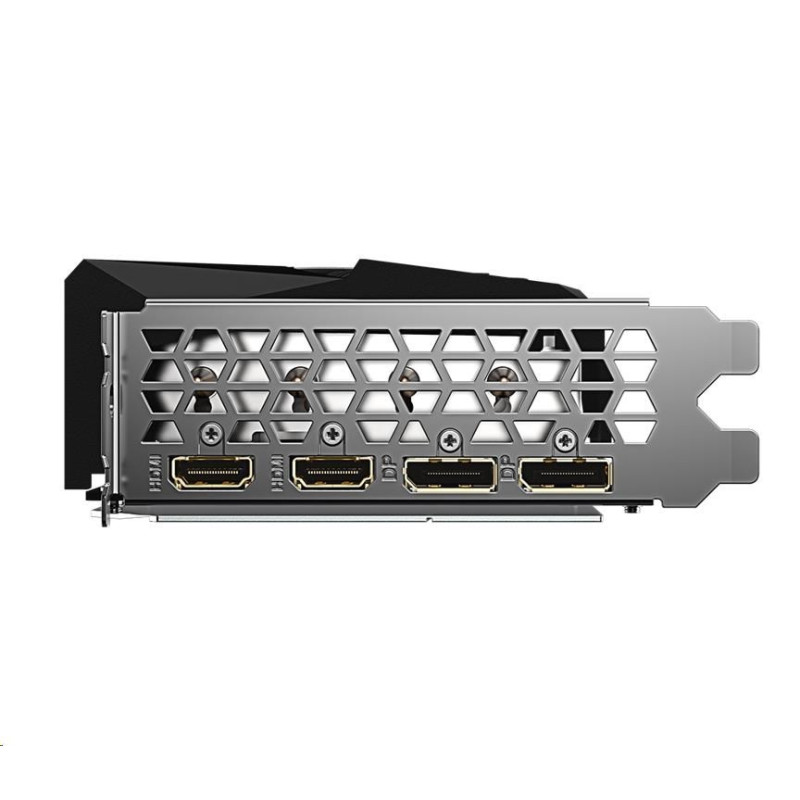

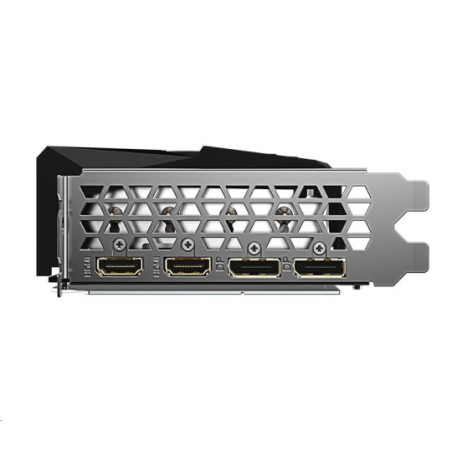

Output

DisplayPort 1.4a *2
HDMI 2.1 *2

Accessories

Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
