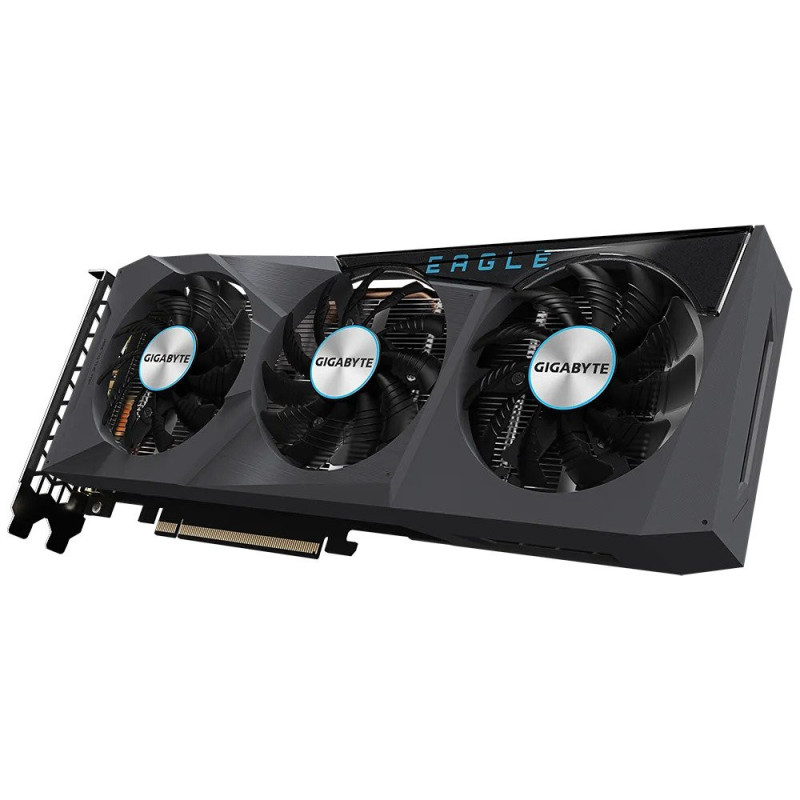

GIGABYTE VGA AMD Radeon RX 6600 Eagle 8G, RX 6600, 8GB GDDR6, 2xDP, 2xHDMI

Radeon™ RX 6600 EAGLE 8G

• Powered by AMD RDNA™ 2 Radeon™ RX 6600
• Integrated with 8GB GDDR6 128-bit memory interface
• WINDFORCE 3X Cooling System with alternate spinning fans
• Screen cooling
• Graphene nano lubricant
• Protection back plate

CORE CLOCK

• Boost Clock : up to 2491 MHz
• Game Clock : up to 2044 MHz

Graphics Processing

Radeon™ RX 6600

Core Clock

Boost Clock* : up to 2491 MHz
Game Clock* : up to 2044 MHz

Stream Processors

1792

Memory Clock

14000 MHz

Memory Size

8 GB

Memory Type

GDDR6

Memory Bus

128 bit

Memory Bandwidth (GB/sec)

224 GB/s

Card Bus

PCI-E 4.0 x 8

Digital max resolution

7680x4320

Multi-view

4

Card size

L=282 W=113 H=41 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

500W

Power Connectors

8 pin*1

Output

DisplayPort 1.4a *2
HDMI 2.1 *2

Accessories

Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
