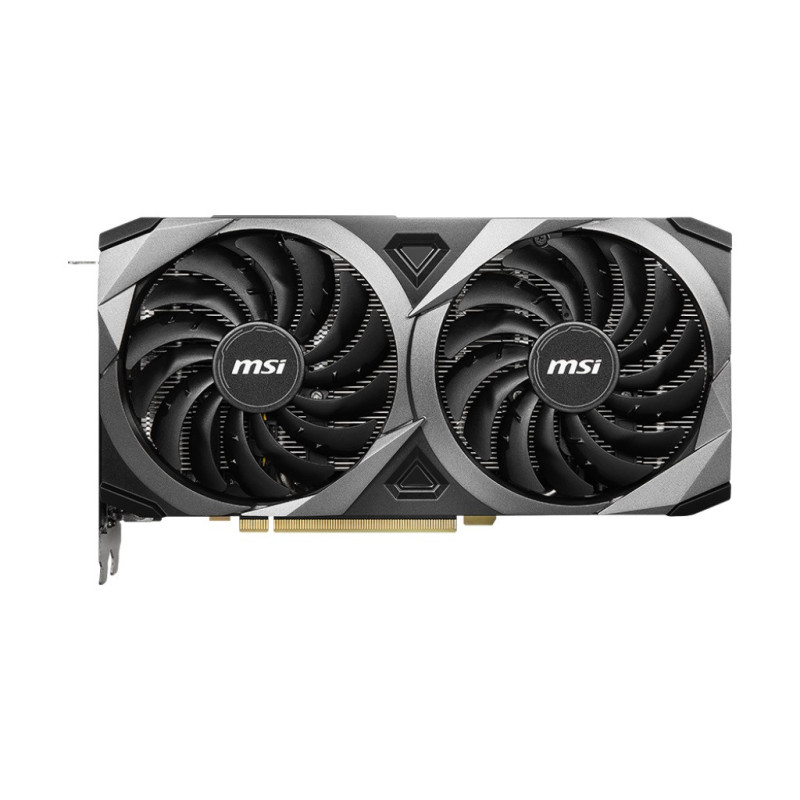

MSI VGA NVIDIA GeForce RTX 3060 Ti VENTUS 2X 8GD6X OC, RTX 3060 Ti, 8GB GDDR6X, 3xDP, 1xHDMI

GeForce RTX™ 3060 Ti VENTUS 2X 8GD6X OC

The GeForce RTX™ 3060 Ti lets you take on the latest games using the power of Ampere—NVIDIA’s 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6X memory.

Boost Clock / Memory Speed

• 1695 MHz / 19 Gbps
• 8GB GDDR6X
• DisplayPort x 3(v1.4a)
• HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

Dual Fan Thermal Design

• TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

Afterburner Overclocking Utility

• Supports multi-GPU setups.
• OC Scanner: An automated function finds the highest stable overclock settings.
• On Screen Display: Provides real-time information of your system's performance.
• Predator: In-game video recording.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

MODEL NAME

GeForce RTX™ 3060 Ti VENTUS 2X 8GD6X OC

GRAPHICS PROCESSING UNIT

NVIDIA GeForce RTX™ 3060Ti GDDR6X

INTERFACE

PCI Express Gen 4

CORE CLOCKS

1695 MHz

CUDA CORES

4864 Units

MEMORY SPEED

19 Gbps

MEMORY

8GB GDDR6X

MEMORY BUS

256-bit

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

HDCP SUPPORT

Y

POWER CONSUMPTION

225W

POWER CONNECTORS

8-pin x 2

RECOMMENDED PSU

600W

CARD DIMENSION (MM)

232 x 124 x 52 mm

WEIGHT (CARD / PACKAGE)

856 g / 1279 g

DIRECTX VERSION SUPPORT

12 API

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

VR READY

Y

G-SYNC TECHNOLOGY

Y

ADAPTIVE VERTICAL SYNC

Y

DIGITAL MAXIMUM RESOLUTION

7680x4320
