MSI VGA NVIDIA GeForce RTX 4080 SUPRIM X 16G, RTX 4080, 16GB GDDR6X, 3xDP, 1xHDMI

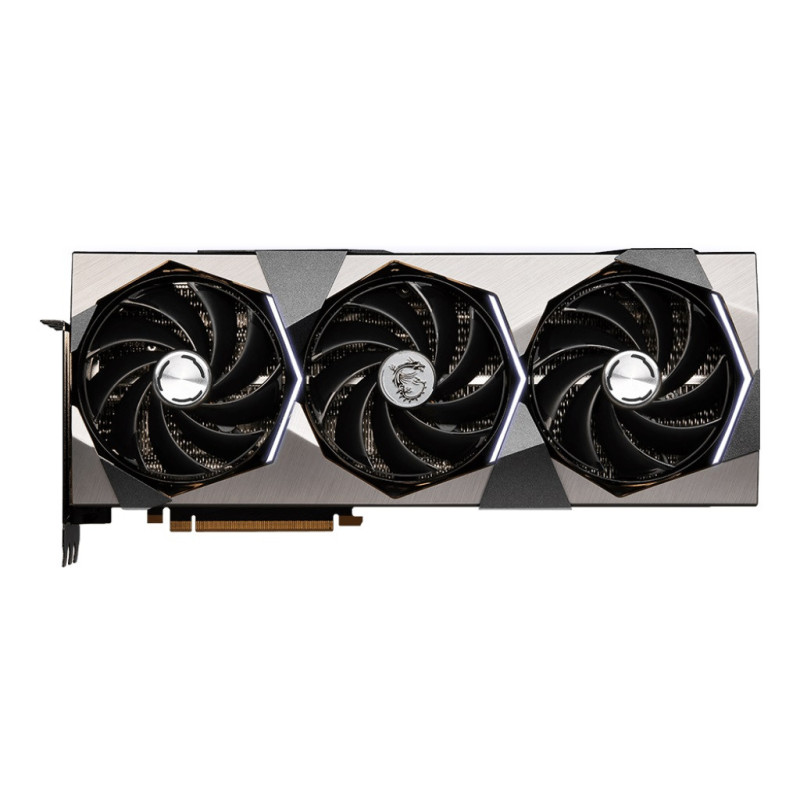

GeForce RTX™ 4080 16GB SUPRIM X

The NVIDIA GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.

Boost Clock / Memory Speed

• TBD / 22.4 Gbps
• 16GB GDDR6X
• DisplayPort x 3 (v1.4a)
• HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

TRI FROZR 3S Thermal Design

• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
• VAPOR CHAMBER: The GPU and memory modules are covered with a Vapor Chamber which rapidly transfers heat to Core Pipes.
• Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
• Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

Dual BIOS

• Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Mystic Light

• Controls lighting for both MSI and compatible third-party RGB products.

MODEL NAME

GeForce RTX™ 4080 16GB SUPRIM X

GRAPHICS PROCESSING UNIT

NVIDIA GeForce RTX™ 4080 16GB

INTERFACE

PCI Express Gen 4

CORE CLOCKS

TBD

CUDA CORES

9728 Units

MEMORY SPEED

22.4 Gbps

MEMORY

16GB GDDR6X

MEMORY BUS

256-bit

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP SUPPORT

Y

POWER CONSUMPTION

TBD

POWER CONNECTORS

16-pin x 1

RECOMMENDED PSU

850 W

CARD DIMENSION (MM)

336 x 142 x 78 mm

WEIGHT (CARD / PACKAGE)

TBD

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT¨

4.6

MAXIMUM DISPLAYS

4

G-SYNC TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680 x 4320
