MSI VGA NVIDIA GeForce RTX 4080 VENTUS 3X OC 16G, RTX 4080, 16GB GDDR6X, 3xDP, 1xHDMI

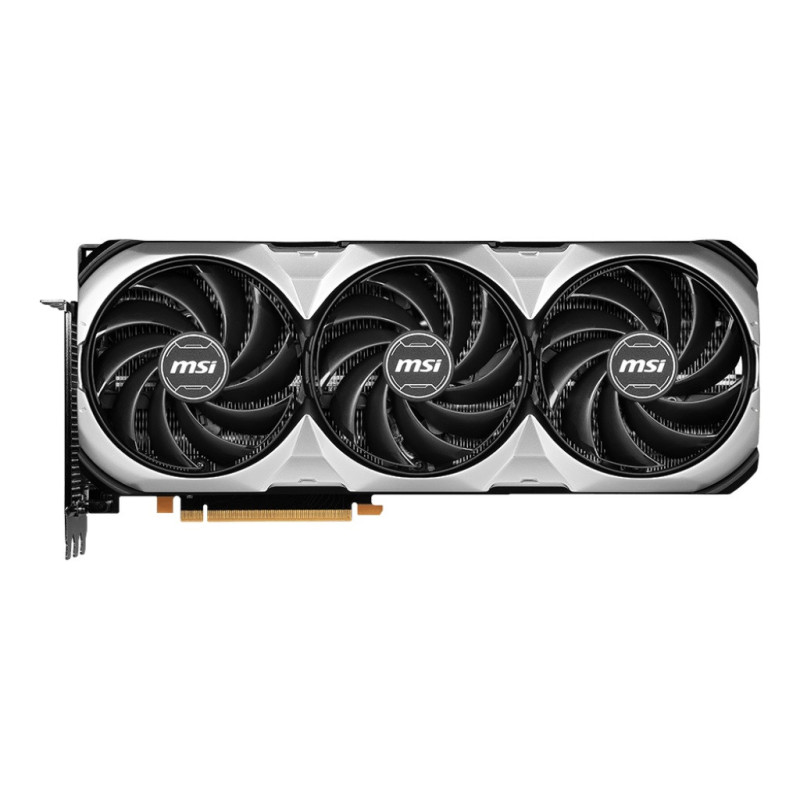

GeForce RTX™ 4080 16GB VENTUS 3X OC

The NVIDIA GeForce RTX 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.

Boost Clock / Memory Speed

• TBD / 22.4 Gbps
• 16GB GDDR6X
• DisplayPort x 3 (v1.4a)
• HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

Triple Fan Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

Metal Backplate

• Thermal pads under the sturdy flow-through metal backplate helps with cooling.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

MODEL NAME

GeForce RTX™ 4080 16GB VENTUS 3X OC

GRAPHICS PROCESSING UNIT

NVIDIA GeForce RTX™ 4080 16GB

INTERFACE

PCI Express Gen 4

CORE CLOCKS

TBD

CUDA CORES

9728 Units

MEMORY SPEED

22.4 Gbps

MEMORY

16GB GDDR6X

MEMORY BUS

256-bit

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP SUPPORT

Y

POWER CONSUMPTION

TBD

POWER CONNECTORS

16pin x 1

RECOMMENDED PSU

750W

CARD DIMENSION (MM)

322 x 136 x 63mm

WEIGHT (CARD / PACKAGE)

1595g / 2200g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

G-SYNC TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680 x 4320
