GIGABYTE VGA NVIDIA GeForce RTX 4080 16GB AORUS XTREME WATERFORCE WB, RTX 4080, 16GB GDDR6X, 3xDP, 1xHDMI

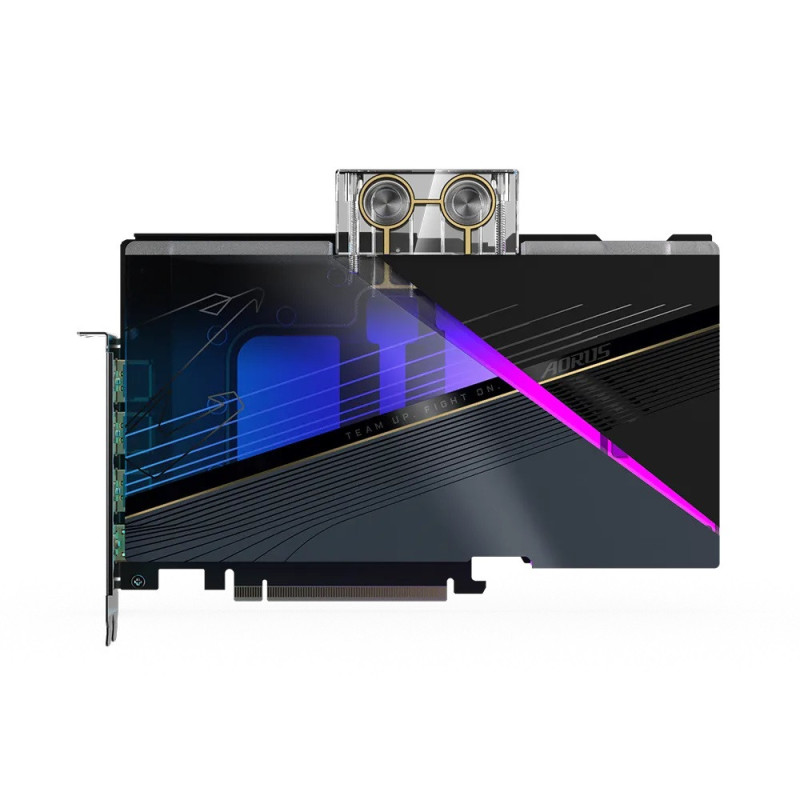

AORUS GeForce RTX™ 4080 16GB XTREME WATERFORCE WB

• NVIDIA Ada Lovelace Streaming Multiprocessors:
• Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 2X AI performance
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX™ 4080 16GB
• Integrated with 16GB GDDR6X 256-bit memory interface
• WATERFORCE Water Block cooling system
• Patented Leak detection
• RGB Fusion
• Protection metal back plate
• 4 Years Warranty (Online registration required)

CORE CLOCK

• 2565 MHz (Reference Card: 2505 MHz)

Graphics Processing

GeForce RTX™ 4080

Core Clock

2565 MHz (Reference Card: 2505 MHz)

CUDA Cores

9728

Memory Clock

22.4 Gbps

Memory Size

16 GB

Memory Type

GDDR6X

Memory Bus

256 bit

Card Bus

PCI-E 4.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=235 W=169 H=29 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

850W

Power Connectors

16 pin * 1

Output

DisplayPort 1.4a *3
HDMI 2.1 *1

Accessories

1. Quick guide
2. Warranty registration
3. WATERFORCE water block installation guide
4. AORUS Metal sticker
5. Xtreme Robot Limited Edition with AORUS flag
6. One 16 pin to triple 8-pin power adaptor
7. Thermal grease

Note

*Please use non-corrosive coolant.
