GIGABYTE VGA NVIDIA GeForce RTX 4090 AORUS XTREME WATERFORCE 24G, RTX 4090, 24GB GDDR6X, 3xDP, 1xHDMI

AORUS GeForce RTX 4090 XTREME WATERFORCE 24G

• NVIDIA Ada Lovelace Streaming Multiprocessors:
• Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 2X AI performance
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX 4090
• Integrated with 24GB GDDR6X 384-bit memory interface

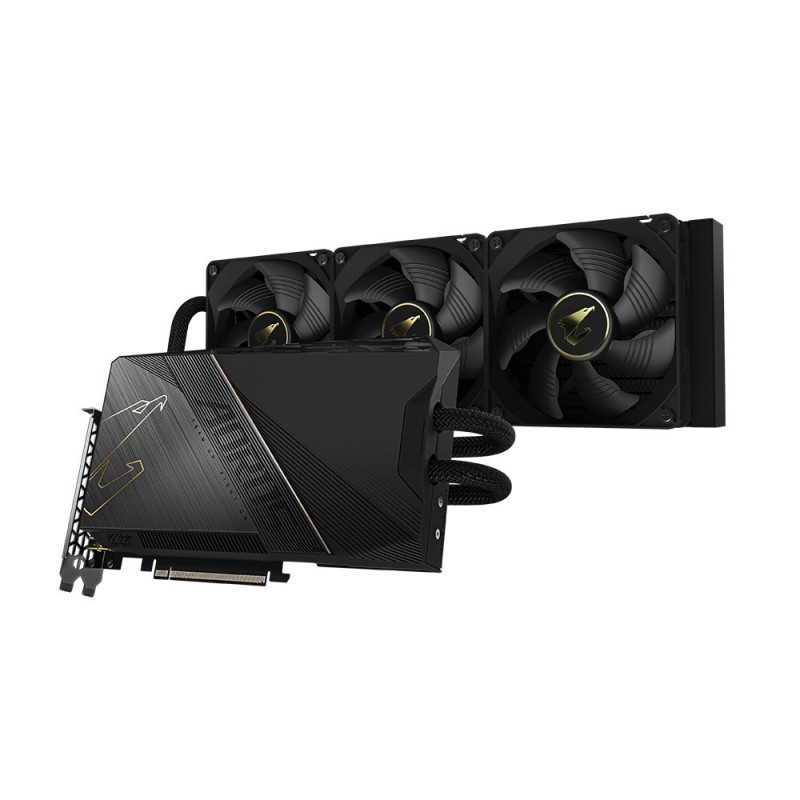

• WATERFORCE all-in-one cooling system
• 360mm radiator with 3x 120mm fans
• Protection metal back plate
• 4 Years Warranty (Online registration required)

CORE CLOCK

• TBD

Graphics Processing

GeForce RTX 4090

Core Clock

TBD

CUDA Cores

16384

Memory Clock

21 Gbps

Memory Size

24 GB

Memory Type

GDDR6X

Memory Bus

384 bit

Card Bus

PCI-E 4.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=238 W=141 H=40 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

850W

Power Connectors

16 pin*1

Output

DisplayPort 1.4a *3
HDMI 2.1*1

Tube length

460mm ± 1.5%

Radiator

360 mm

Fan

3x 120 mm

Accessories

1. Quick guide
2. Warranty registration
3. AORUS Metal sticker
4. Xtreme Robot Limited Edition with AORUS flag
5. One 16-pin to four 8-pin power adaptor
