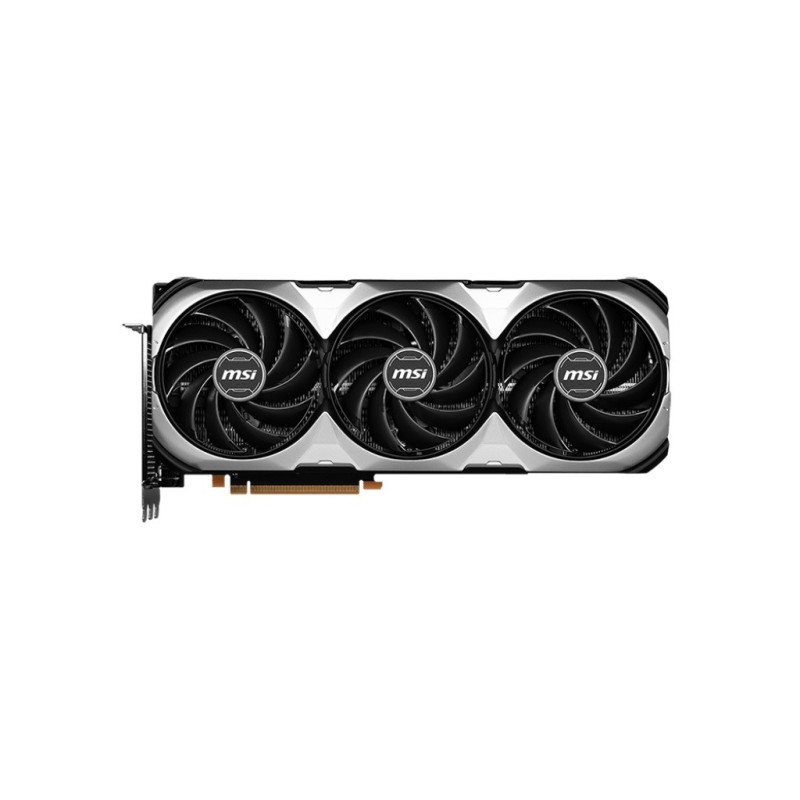

MSI VGA NVIDIA GeForce RTX 4090 VENTUS 3X 24G OC

The NVIDIA® GeForce RTX™ 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.

Boost Clock / Memory Speed

• Extreme Performance: 2565 MHz (MSI Center)
• Boost: 2550 MHz
• 21 Gbps
• 24GB GDDR6X
• DisplayPort x 3 (v1.4a)
• HDMI™ x 1 (Supports 4K @120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

Triple Fan Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

Metal Backplate

• Thermal pads under the sturdy flow-through metal backplate helps with cooling.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

MODEL NAME

GeForce RTX™ 4090 VENTUS 3X 24G OC

GRAPHICS PROCESSING UNIT

NVIDIA® GeForce RTX™ 4090

INTERFACE

PCI Express® Gen 4

CORE CLOCKS

Extreme Performance: 2565 MHz (MSI Center)
Boost: 2550 MHz

CUDA® CORES

16384 Units

MEMORY SPEED

21 Gbps

MEMORY

24GB GDDR6X

MEMORY BUS

384-bit

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP SUPPORT

Y

POWER CONSUMPTION

450W

POWER CONNECTORS

16pin x 1

RECOMMENDED PSU

850W

CARD DIMENSION (MM)

322 x 136 x 62mm

WEIGHT (CARD / PACKAGE)

1675g / 2306g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

G-SYNC® TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680 x 4320
