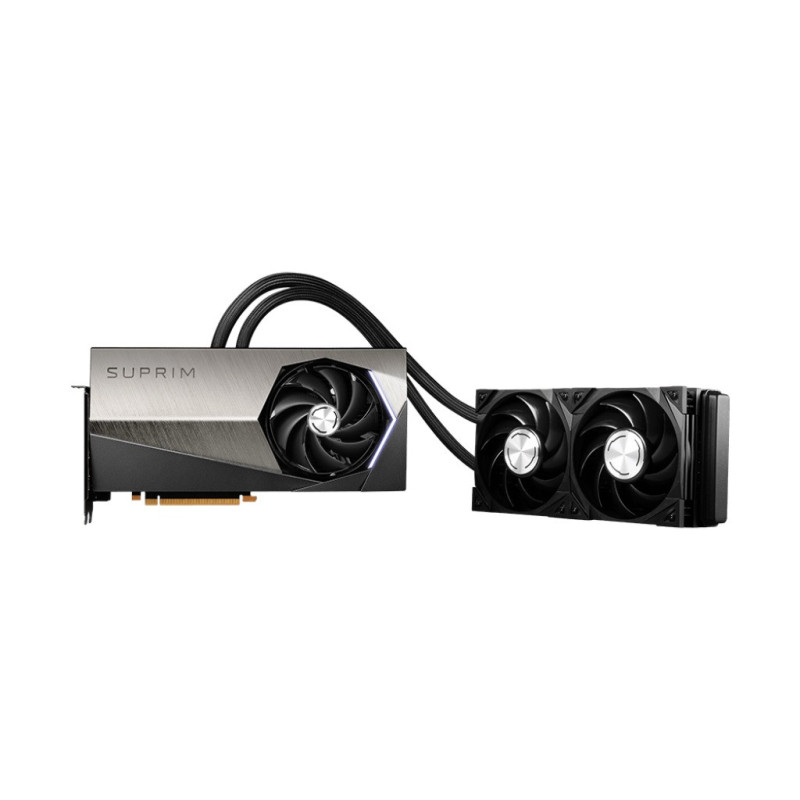

MSI VGA NVIDIA GeForce RTX 4090 SUPRIM LIQUID X 24G, RTX 4090, 24GB GDDR6X, 3xDP, 1xHDMI

GeForce RTX 4090 SUPRIM LIQUID X 24G

The NVIDIA GeForce RTX 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.

Core / Memory

• Boost Clock / Memory Speed
• TBD MHz / 21 Gbps
• 24GB GDDR6X
• DisplayPort x 3 (v1.4a)
• HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

Metal backplate

• Premium metal backplate provides a nice visual finish to the card. It also strengthens the card and thanks to some cleverly place thermal pads even helps to keep the temperature low.

TORX FAN 5.0

• Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.

Micro-Fin Copper Base

• A copper base with fine micro-fins immersed in the liquid stream effectively transfers heat away from the VRAM and GPU.

Quick And Easy Installation

• The closed-loop cooling solution requires no additional maintenance or assembly.

Zero Frozr

• Calm before the storm, keeping fans still and maintaining silence until cooling is needed.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

MODEL NAME

GeForce RTX 4090 SUPRIM LIQUID X 24G

GRAPHICS PROCESSING UNIT

NVIDIA GeForce RTX 4090

INTERFACE

PCI Express Gen 4

CORE CLOCKS

Boost: TBD MHz

CUDA CORES

16384 Units

MEMORY SPEED

21 Gbps

MEMORY

24GB GDDR6X

MEMORY BUS

384-bIt

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP SUPPORT

Y

POWER CONSUMPTION

TBD

POWER CONNECTORS

16-pin x 1

RECOMMENDED PSU

850W

CARD DIMENSION (MM)

Card: 280 x 140 x 43 mm
radiator + fan: 274 x 121 x 55 mm
Tube length: L470 ± 10 x D11.2 mm

WEIGHT (CARD / PACKAGE)

2353 g / 3837 g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

G-SYNC TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680x4320
