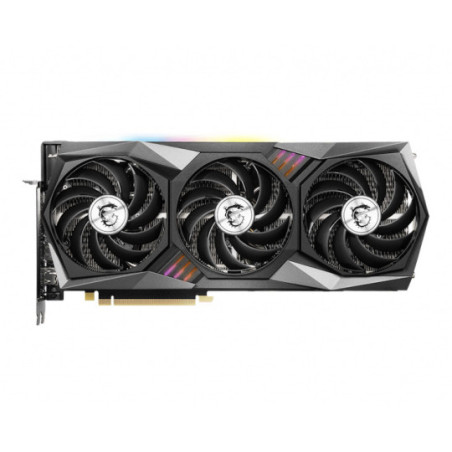

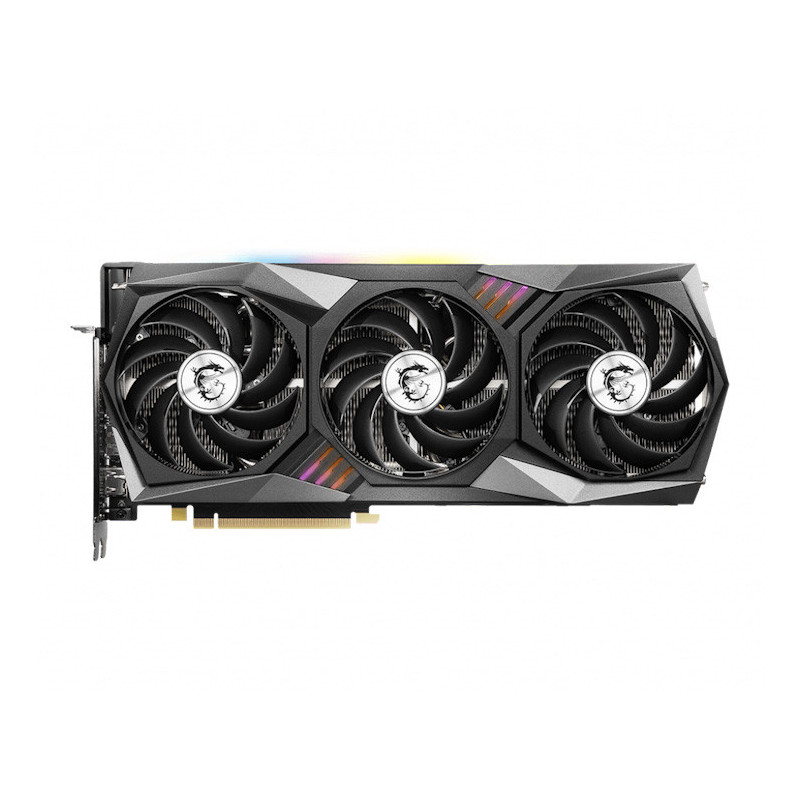

MSI VGA NVIDIA GeForce RTX 3060 GAMING Z TRIO 12G, RTX 3060, 12GB GDDR6, 3xDP, 1xHDMI

GeForce RTX™ 3060 GAMING Z TRIO 12G

The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.

Boost Clock / Memory Speed

• 1867 MHz / 16 Gbps
• 12GB GDDR6
• DisplayPort x 3 (v1.4a)
• HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

TRI FROZR 2 Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
• Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

• Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

MODEL NAME

GeForce RTX™ 3060 GAMING Z TRIO 12G

GRAPHICS PROCESSING UNIT

NVIDIA GeForce RTX™ 3060

INTERFACE

PCI Express Gen 4

CORES

3584 Units

CORE CLOCKS

Boost:1867 MHz

MEMORY SPEED

16 Gbps

MEMORY

12GB GDDR6

MEMORY BUS

192-bit

OUTPUT

DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

HDCP SUPPORT

Y

POWER CONSUMPTION

170W

POWER CONNECTORS

8-pin x 2

RECOMMENDED PSU

550W

CARD DIMENSION (MM)

324 x 140 x 57mm

WEIGHT (CARD / PACKAGE)

1460 g / 2288 g

DIRECTX VERSION SUPPORT

12 API

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

VR READY

Y

G-SYNC TECHNOLOGY

Y

ADAPTIVE VERTICAL SYNC

Y

DIGITAL MAXIMUM RESOLUTION

7680x4320
