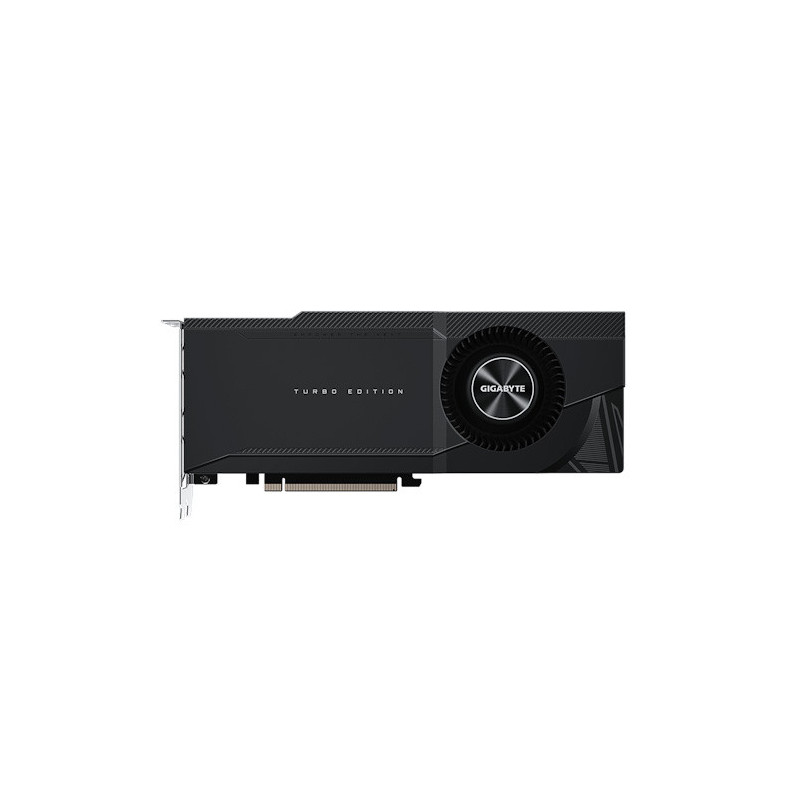

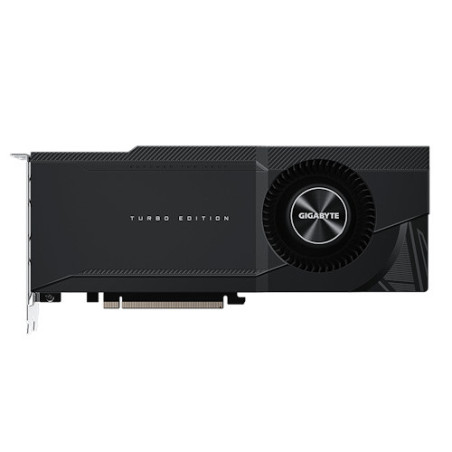

GIGABYTE VGA NVIDIA GeForce RTX 3080 TURBO 10G LHR Rev. 2.0, RTX 3080, 10GB GDDR6X, 2xDP, 2xHDMI

GeForce RTX™ 3080 TURBO 10G

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3080
• Integrated with 10GB GDDR6X 320-bit memory interface
• Turbo Fan Cooling System
• Vapor chamber direct touch GPU
• Copper Heat Sink
• Double ball bearing fan
• Metal cover and metal back plate
• LHR (Lite Hash Rate) version

CORE CLOCK

• 1710 MHz

Graphics Processing

GeForce RTX™ 3080

Core Clock

1710 MHz

CUDA Cores

8704

Memory Clock

19000 MHz

Memory Size

10 GB

Memory Type

GDDR6X

Memory Bus

320 bit

Memory Bandwidth (GB/sec)

760 GB/s

Card Bus

PCI-E 4.0 x 16

Digital max resolution

7680x4320

Multi-view

4

Card size

L=267 W=111 H=40 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

750W

Power Connectors

8 pin*2

Output

DisplayPort 1.4a *2
HDMI 2.1 *2

SLI Support

N/A

Accessories

Quick guide
