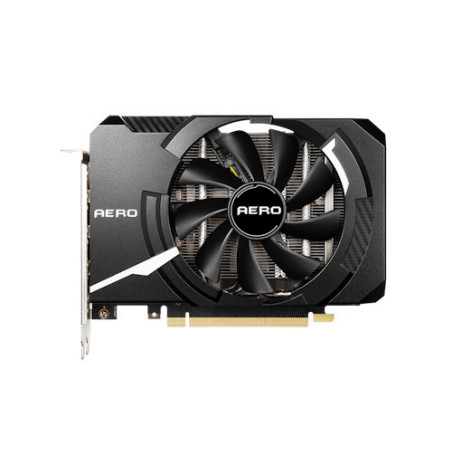

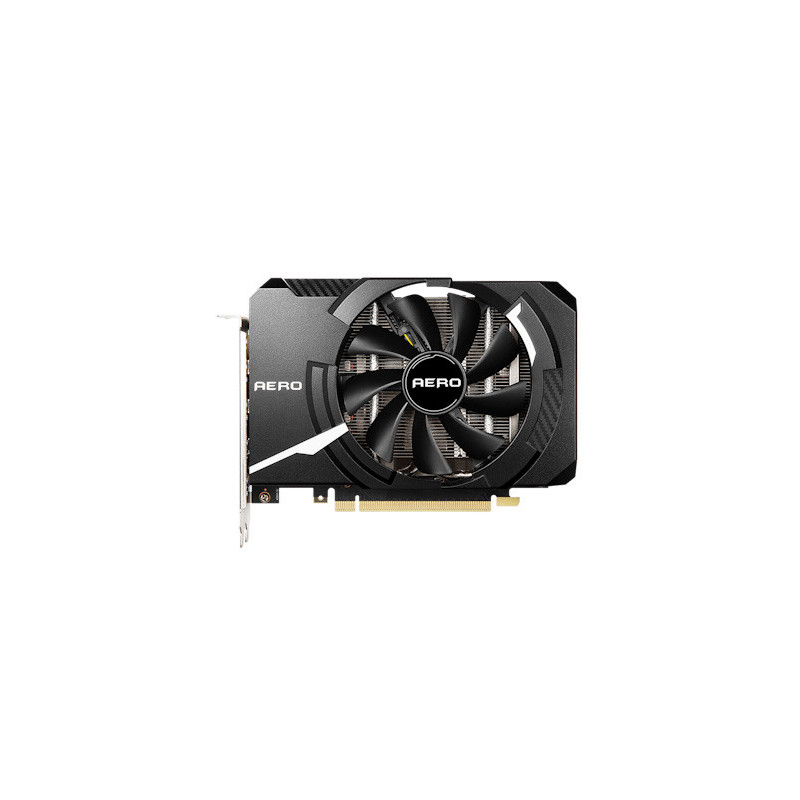

GeForce RTX™ 3060 AERO ITX 12G OC
The GeForce RTX 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
Boost Clock / Memory Speed
- 1792 MHz / 15 Gbps
- 12GB GDDR6
- DisplayPort x 3
- HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Small Form Factor Design
- Perfect for small form factor systems and HTPC.
- Custom fan design with a unique curve to enhance heat dissipation.
- Copper heatpipes maximize heat transfer from the surface of the baseplate for better cooling.
Afterburner Overclocking Utility
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system's performance.
- Predator: In-game video recording.
MODEL NAME
GeForce RTX™ 3060 AERO ITX 12G OC
GRAPHICS PROCESSING UNIT
NVIDIA GeForce RTX™ 3060
INTERFACE
PCI Express Gen 4
CORES
3584
CORE CLOCKS
Boost:1792 MHz
MEMORY SPEED
15 Gbps
MEMORY
12GB GDDR6
MEMORY BUS
192-bit
OUTPUT
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
HDCP SUPPORT
Y
POWER CONSUMPTION
170W
POWER CONNECTORS
8-pin x 1
RECOMMENDED PSU
550W
CARD DIMENSION (MM)
172 x 125 x 43 mm
WEIGHT (CARD / PACKAGE)
503g / 833g
DIRECTX VERSION SUPPORT
12 API
OPENGL VERSION SUPPORT
4.6
MAXIMUM DISPLAYS
4
VR READY
Y
G-SYNC TECHNOLOGY
Y
ADAPTIVE VERTICAL SYNC
Y
DIGITAL MAXIMUM RESOLUTION
7680 x 4320
