Asus PH-RTX3060-12G-V2 90YV0GB4-M0NA10

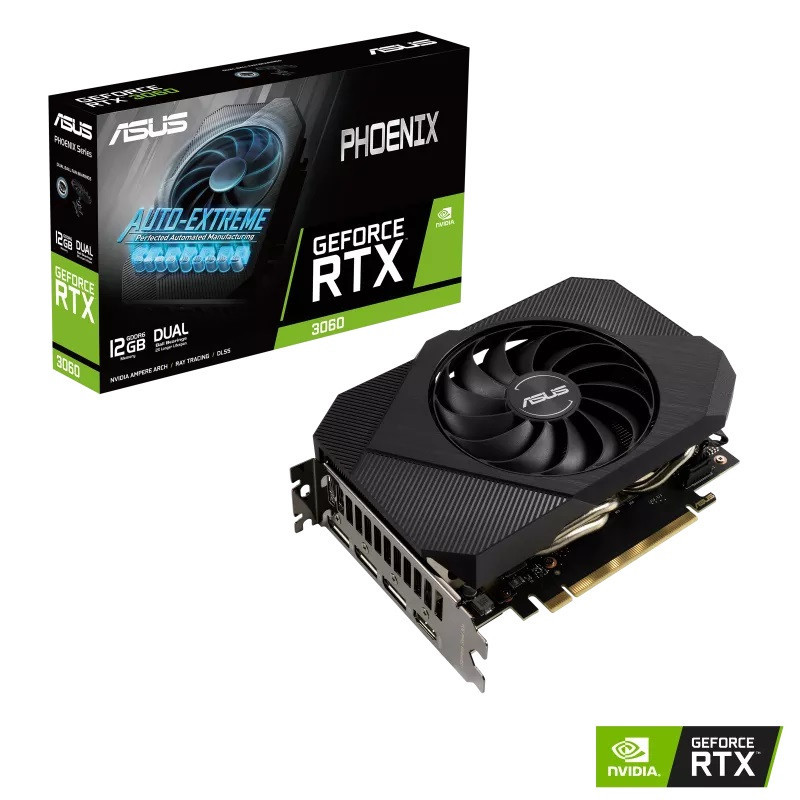

Phoenix GeForce RTX 3060 V2

The ASUS Phoenix GeForce RTX™ 3060 V2 12GB GDDR6 brings ultra high frame rates for today’s most popular titles.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
• Axial-tech fan design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• Auto-Extreme Technology uses automation to enhance reliability.
• A protective backplate prevents PCB flex and trace damage.

Graphic Engine

NVIDIA GeForce RTX™ 3060

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

12GB GDDR6

Engine Clock

OC Mode - 1807 MHz (Boost Clock)
Gaming Mode - 1777 MHz (Boost Clock)

CUDA Core

3584

Memory Speed

15 Gbps

Memory Interface

192-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Collection card
1 x Speedsetup manual

Software

ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

6.97 " x 5.04 " x 2.01 " Inch
17.7 x 12.8 x 5.1 cm

Recommended PSU

650W

Power Connectors

1 x 8-pin

Slot

2.55 Slot
