The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
Boost Clock / Memory Speed
TWIN FROZR 8 Thermal Design
RGB Mystic Light
Dragon Center
TECHNICAL SPECIFICATIONS

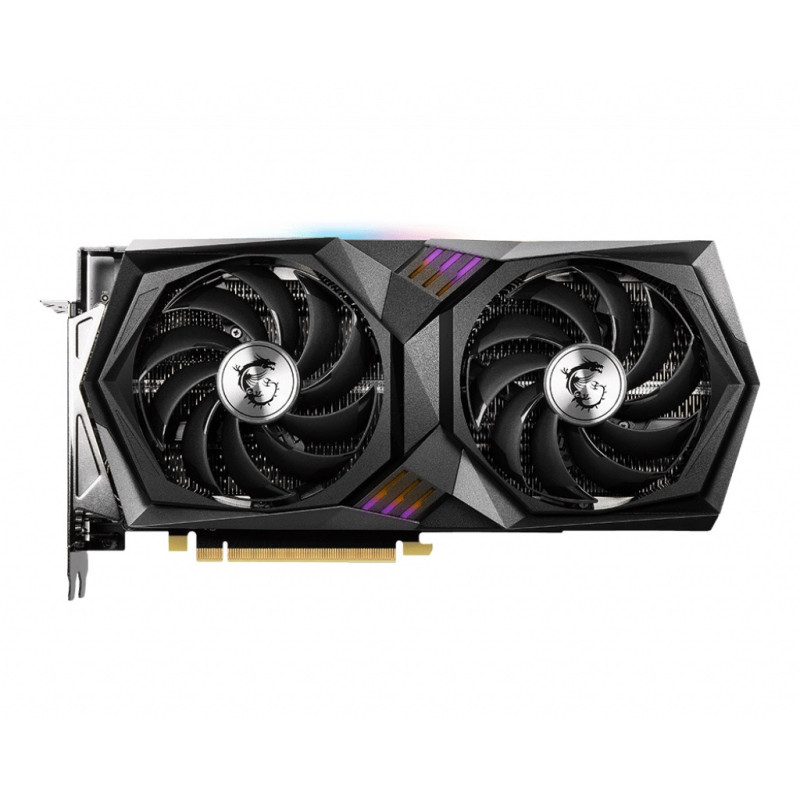

Model Name | GeForce RTX™ 3060 GAMING X 12G |
Graphics Processing Unit | NVIDIA GeForce RTX™ 3060 |
Interface | PCI Express Gen 4 |
Cores | 3584 Units |
Core Clocks | Boost: 1837 MHz |
Memory Speed | 15 Gbps |
Memory | 12GB GDDR6 |
Memory Bus | 192-bit |
Output | 3 x DisplayPort(v1.4a) 1 x HDMI(Supports 4K@120Hz as specified in HDMI 2.1) |
HDCP Support | Y |
Power Consumption | 170W |
Power Connectors | 2 x 8-pin / 1 x 6-pin |
Recommended PSU | 550W |
Card Dimension | 276 x 131 x 51 mm |
Weight (Card / Package) | 996 g / 1567 g |
DirectX Version Support | 12 API |
OpenGL Version Support | 4.6 |
Maximum Displays | 4 |
VR Ready | Y |
G-Sync Technology | Y |
Adaptive Vertical Sync | Y |
Digital Maximum Resolution | 7680x4320 |
