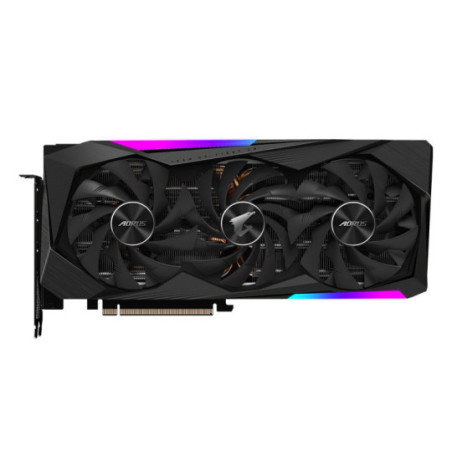

GIGABYTE VGA NVIDIA GeForce RTX 3070 AORUS MASTER 8G LHR Rev. 2.0, RTX 3070 LHR, 8GB GDDR6, 3xDP, 3xHDMI

AORUS GeForce RTX™ 3070 MASTER 8G

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3070
• Integrated with 8GB GDDR6 256-bit memory interface
• MAX-COVERED cooling
• LCD Edge View
• RGB Fusion 2.0
• 6 video outputs
• Protection metal back plate
• 4 years warranty (Online registration required)
• LHR (Lite Hash Rate) version

CORE CLOCK

• 1845 MHz (Reference Card: 1725 MHz)

Graphics Processing

GeForce RTX™ 3070

Core Clock

1845 MHz (Reference Card: 1725 MHz)

CUDA Cores

5888

Memory Clock

14000 MHz

Memory Size

8 GB

Memory Type

GDDR6

Memory Bus

256 bit

Memory Bandwidth (GB/sec)

448 GB/s

Card Bus

PCI-E 4.0 x 16

Digital max resolution

7680x4320

Multi-view

4

Card size

L=290 W=131 H=60 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

650W

Power Connectors

8 pin*2

Output

DisplayPort 1.4a *3
HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0)

SLI Support

N/A

Accessories

1. Quick guide
2. warranty registration
3. Metal sticker
