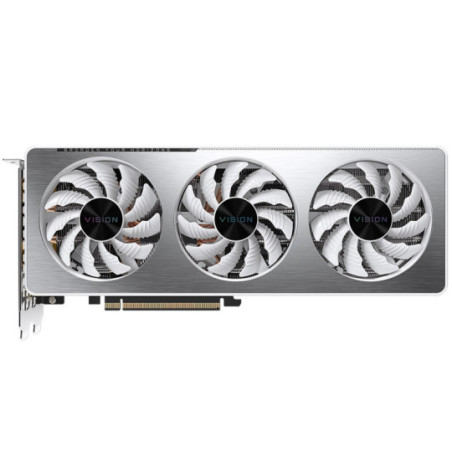

GIGABYTE VGA NVIDIA GeForce RTX 3060 Ti VISION OC 8G LHR Rev. 2.0, RTX 3060 Ti LHR, 8GB GDDR6, 2xDP, 2xHDMI

GeForce RTX™ 3060 Ti VISION OC 8G (rev. 2.0)

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3060 Ti
• Integrated with 8GB GDDR6 256-bit memory interface
• WINDFORCE 3X Cooling System with alternate spinning fans
• RGB Fusion 2.0
• Protection metal back plate
• LHR (Lite Hash Rate) version

CORE CLOCK

• 1755 MHz (Reference card: 1665 MHz)

Graphics Processing

GeForce RTX™ 3060 Ti

Core Clock

1755 MHz (Reference card: 1665 MHz)

CUDA Cores

4864

Memory Clock

14000 MHz

Memory Size

8 GB

Memory Type

GDDR6

Memory Bus

256 bit

Memory Bandwidth (GB/sec)

448 GB/s

Card Bus

PCI-E 4.0 x 16

Digital max resolution

7680x4320

Multi-view

4

Card size

L=281 W=115 H=40 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

650W

Power Connectors

8 Pin*1, 6 Pin*1

Output

DisplayPort 1.4a *2
HDMI 2.1 *2

SLI Support

N/A

Accessories

Quick guide
